Rea Magnet Wire NanoShield SD Heavy Build Round Magnet Wire

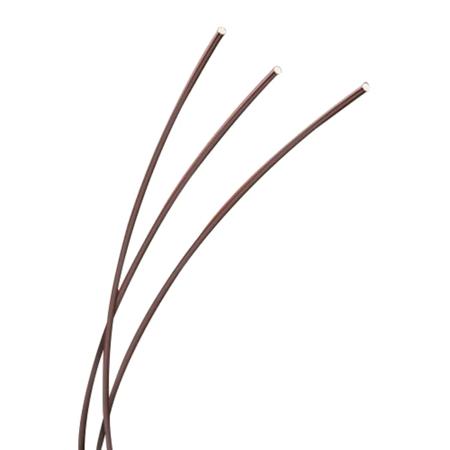

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:HTAINS

EIS #:PH15-HTAINS

Series #:HTAINS

MFR #:HTAINS

EIS #:PH15-HTAINS

Series #:HTAINS

0
0
Rea Magnet Wire NanoShield SD, HTAI NS, thermal class is 200 °C, is inverter duty wire that offers substantial insulation protection against transient spikes, high frequencies, elevated voltage levels and short rise time pulses without increasing insulation thickness. - NanoShield SD offers exceptional resistance to voltage stresses generated by high frequency, rapid rise time, voltage spikes typically introduced by IGBT-type inverters. Motor life is increased significantly over standard MW-35C magnet wire under these voltage stresses and across a wide temperature range.
$241.00
 - $725.00
Select from the options below
0
0
Rea Magnet Wire NanoShield SD, HTAI NS, thermal class is 200 °C, is inverter duty wire that offers substantial insulation protection against transient spikes, high frequencies, elevated voltage levels and short rise time pulses without increasing insulation thickness. - NanoShield SD offers exceptional resistance to voltage stresses generated by high frequency, rapid rise time, voltage spikes typically introduced by IGBT-type inverters. Motor life is increased significantly over standard MW-35C magnet wire under these voltage stresses and across a wide temperature range.

Product Options

Showing 8 out of 47 options
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
10-11" Tapered Reel/Bucket (103)
Wire Size:
28 AWG
EIS Part #:
RW28HTANSFR
$ / US pound
Pack: 10-11" Tapered Reel/Bucket (103)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
6" Spool (060)
Wire Size:
28 AWG
EIS Part #:
RW28HTANSCR
$ / US pound
Pack: 6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
10-11" Tapered Reel/Bucket (103)
Wire Size:
26 AWG
EIS Part #:
RW26HTANSFR
$ / US pound
Pack: 10-11" Tapered Reel/Bucket (103)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
6" Spool (060)
Wire Size:
26 AWG
EIS Part #:
RW26HTANSCR
$ / US pound
Pack: 6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
10-11" Tapered Reel/Bucket (103)
Wire Size:
25 AWG
EIS Part #:
RW25HTANSFR
$ / US pound
Pack: 10-11" Tapered Reel/Bucket (103)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
6" Spool (060)
Wire Size:
25 AWG
EIS Part #:
RW25HTANSCR
$ / US pound
Pack: 6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
10-11" Tapered Reel/Bucket (103)
Wire Size:
24 AWG
EIS Part #:
RW24HTANSFR
$ / US pound
Pack: 10-11" Tapered Reel/Bucket (103)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging:
6" Spool (060)
Wire Size:
24 AWG
EIS Part #:
RW24HTANSCR
$ / US pound
Pack: 6" Spool (060)

Attributes

General Information
Item NameMagnet Wire
Trade NameNanoShield SD
SeriesHTAINS
General Features
StandardsRoHS, REACH Compliant
TypeHeavy Build
Design & Construction
ColorNatural
Insulation MaterialTheic Modified Polyester and Nano-shieldcoat and Overcoated with Polyamide-imide
MaterialCopper
NEMA RatingMW 35-C
ShapeRound
