Rea Magnet Wire Pyre-ML Heavy Build Owned Round Magnet Wire, MFR ID HMLPC_RDO
- MFR #HMLPC_RDO
- EIS #PH15-HMLPC_RDO
- Series #HMLPC_RDO
$972.65 - $1,597.41
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 11.75" Reel (121) | 14 AWG | $ / US pound Pack: 11.75" Reel (121) | |
 | 6" Spool (060) | 21 AWG | $ / US pound Pack: 6" Spool (060) more info | |
| 6" Spool (060) | 22 AWG | $ / US pound Pack: 6" Spool (060) more info |

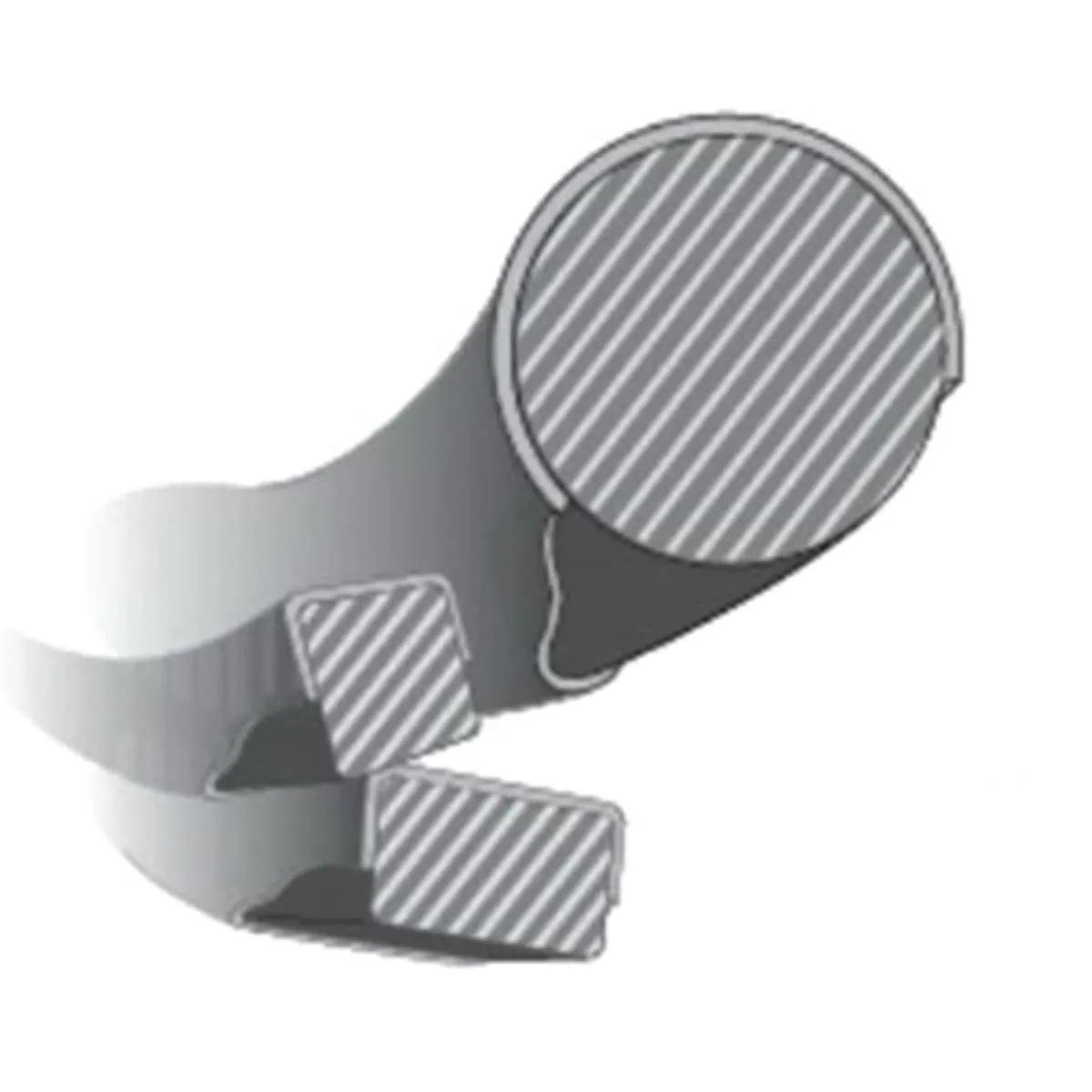

Round heavy build Rea ML is a film insulation composed of aromatic polyimide resin. Capable of continuous operation at 240 °C, ML is designed to withstand extremely harsh environments. It is ideally suited for severe high temperature continuous duty as well as aerospace applications. Chemically compatible with the widest range of solvents, varnishes and encapsulating materials. - Round heavy build Rea ML exhibits the highest thermal capabilities and chemical stability of any available organic film insulated magnet wire. Exhibits high resistance to radiation.
Features
- Extraordinary thermal and chemical stability
- Highest overload resistance, cut thru resistance and operating temperature classification of any Rea film insulation
- Minimum outgassing makes ML ideal for use in hermetically sealed coils and relays
Applications
- For Dry Type Transformers, Traction Motors, DC Field Coils, Submersible Pump Motors, High Temperature Coils and Relays, Encapsulated Coils and Hermetically Sealed Relays
General Information
| Item Name | Magnet Wire |
| Trade Name | Pyre-ML |
| Series | HMLPC_RDO |
General Features
| Type | Heavy Build |
| Standards | UL Listed, IEC 60317-21 |
Design & Construction
| Color | Natural |
| Insulation Material | Aromatic Polyimide |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 20-C |
