MFR #:C152XX00250081A
EIS #:RW25SGPXE
Series #:GP200NATSXSB
MFR #:C152XX00250081A
EIS #:RW25SGPXE
Series #:GP200NATSXSB
In Stock
Min Qty:1
|Qty Increment:1
Pack:10.03-10.66" Tapered Flange Box (TF80)

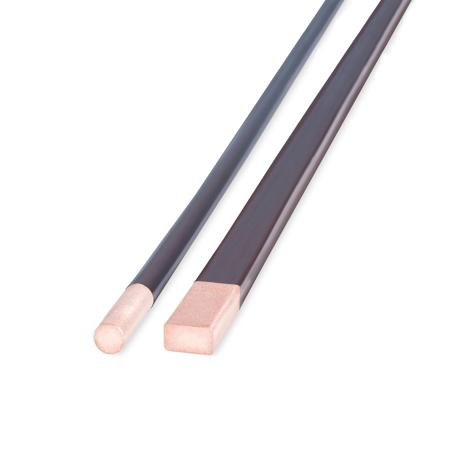

Windability of GP/MR-200® round single build magnet wire, verified by years of experience on virtually every type of winder, has always been excellent. Improvements in the topcoat have resulted in a product that is even more superior with regard to high slot fill and insertability. GP/MR-200® round single build magnet wire is the standard of comparison for magnet wire performance in virtually every severe and heavy duty application. The combination of a modified polyester basecoat and an improved polyamideimide topcoat results in an insulation system with outstanding physical toughness, excellent dielectric properties, and superior chemical resistance to most common solvents and refrigerants.
$1,009.38 / 100 US pound
Pack: 10.03-10.66" Tapered Flange Box (TF80)
Min Qty:1
|Qty Increment:1
Pack:10.03-10.66" Tapered Flange Box (TF80)
Windability of GP/MR-200® round single build magnet wire, verified by years of experience on virtually every type of winder, has always been excellent. Improvements in the topcoat have resulted in a product that is even more superior with regard to high slot fill and insertability. GP/MR-200® round single build magnet wire is the standard of comparison for magnet wire performance in virtually every severe and heavy duty application. The combination of a modified polyester basecoat and an improved polyamideimide topcoat results in an insulation system with outstanding physical toughness, excellent dielectric properties, and superior chemical resistance to most common solvents and refrigerants.
Product Options
Showing 8 out of 11 options
Packaging: 10.03-10.66" Tapered Flange Box (TF80) | Wire Size: 27.5 AWG | EIS Part #: RW27.5SGPXE | $ / US pound Pack: 10.03-10.66" Tapered Flange Box (TF80) | ||
Packaging: 10.03-10.66" Tapered Flange Box (TF80) | Wire Size: 25 AWG | EIS Part #: RW25SGPXE | $ / US pound Pack: 10.03-10.66" Tapered Flange Box (TF80) | ||
Packaging: 6" Spool (PC06) | Wire Size: 25 AWG | EIS Part #: RW25SGPCE | $ / US pound Pack: 6" Spool (PC06) | ||
Packaging: 6" Spool (PC06) | Wire Size: 23 AWG | EIS Part #: RW23SGPCE | $ / US pound Pack: 6" Spool (PC06) | ||
Packaging: 8.5-9.25" Tapered Reel (PC08) | Wire Size: 21 AWG | EIS Part #: RW21SGPIE | $ / US pound Pack: 8.5-9.25" Tapered Reel (PC08) | ||
Packaging: 6" Spool (PC06) | Wire Size: 21 AWG | EIS Part #: RW21SGPCE | $ / US pound Pack: 6" Spool (PC06) | ||
Packaging: 10.03-10.66" Tapered Flange Box (TF80) | Wire Size: 19 AWG | EIS Part #: RW19SGPXE | $ / US pound Pack: 10.03-10.66" Tapered Flange Box (TF80) | ||
Packaging: 6" Spool (PC06) | Wire Size: 19 AWG | EIS Part #: RW19SGPCE | $ / US pound Pack: 6" Spool (PC06) |
- Attributes
- Applications
- Features
Attributes
General Information
Item NameMagnet Wire
Trade NameGP/MR-200®
SeriesGP200NATSXSB
General Features
TypeSingle Build
StandardsUL Listed
Design & Construction
ColorNatural
Insulation MaterialPolyester/Polyamide-imide
ShapeRound
MaterialCopper
NEMA RatingMW 35-C, MW 73-C
Physical Properties
Reel Diameter6 Inch
Reel Weight75 lb
Reel Width8.23 Inch Inner x 12.63 Inch Outer
Environmental Condition
Temperature Rating200 °C
Applications
- For Fractional and Integral HP Motors, Hermetic Motors, DC Motors, Power Tools, Automotive Alternators and Generators
Features
- GP/MR-200® copper magnet wire has excellent thermoplastic flow (cut-thru) properties, with typical test values near 390 °C
- GP/MR-200® magnet wire is excellent in the areas of lubricity and scrape resistance, providing superior windability
- GP/MR-200® magnet wire insulation exhibits high dielectric strength retention in high moisture conditions
- Insulation piercing, hot staking and flame welding processes can all be used with copper GP/MR-200® magnet wire
- GP/MR-200® magnet wire is classified as 200 °C on copper conductor and 220 °C on aluminum
