MFR #:FORMPC-HB-S
EIS #:PH15-FORMPC-HB-S
Series #:FORMPC-HB-S
MFR #:FORMPC-HB-S
EIS #:PH15-FORMPC-HB-S
Series #:FORMPC-HB-S

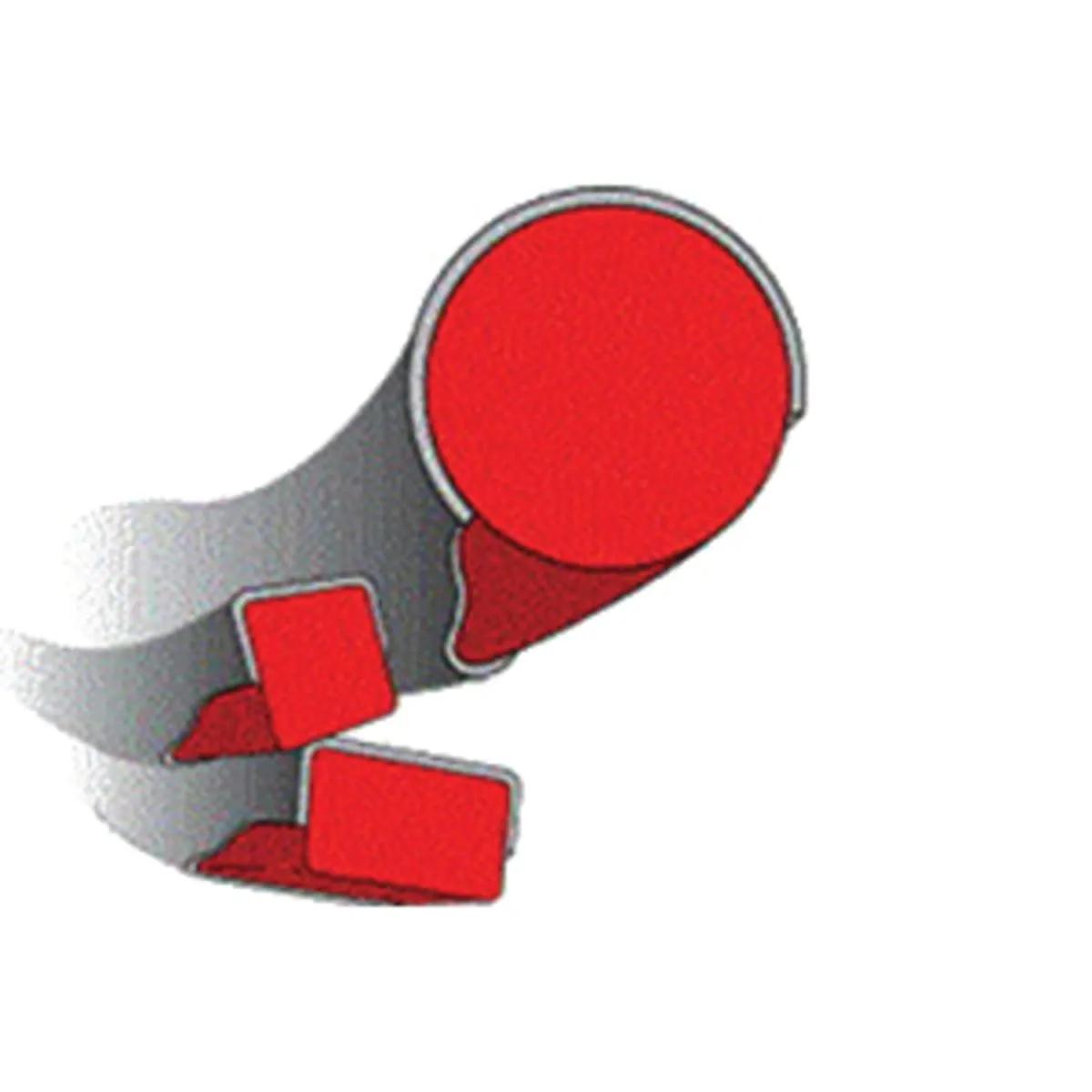

Heavy build designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials. Today, Formvar is still widely used in oil-filled transformers as well as demanding cryogenic applications. Proven performance in oil-filled applications. - Rea Formvar heavy build is a film insulation composed of modified polyvinyl acetyl resins. Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials.
Select from the options below
Heavy build designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials. Today, Formvar is still widely used in oil-filled transformers as well as demanding cryogenic applications. Proven performance in oil-filled applications. - Rea Formvar heavy build is a film insulation composed of modified polyvinyl acetyl resins. Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials.
Product Options
Showing 4 out of 4 options
Wire Size: 0.128 Inch x 0.46 Inch | Shape: Rectangular | EIS Part #: SW128X460HFJR | $ / US pound Pack: 24" Reel (245) | ||
Wire Size: 0.128 Inch x 0.365 Inch | Shape: Rectangular | EIS Part #: SW128X365HFJR | $ / US pound Pack: 24" Reel (245) | ||
Wire Size: 0.091 Inch x 0.182 Inch | Shape: Rectangular | EIS Part #: SW091X182HFJR | $ / US pound Pack: 24" Reel (245) | ||
Wire Size: 7 AWG | Shape: Square | EIS Part #: SW007SQHFJR | $ / US pound Pack: 24" Reel (245) |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameMagnet Wire
Trade NameFormvar
SeriesFORMPC-HB-S
General Features
StandardsIEC 60317-17
TypeHeavy Build
Design & Construction
ColorNatural
MaterialCopper
NEMA RatingMW 18-C
Insulation MaterialPolyvinyl Formal
Physical Properties
Reel Diameter14 Inch
Reel Hub Diameter1.536 Inch
Reel Weight271 lb
Reel Width6 Inch
Features
- Resistant to mechanical and winding abuse due to superior flexibility and abrasion resistance
- Performs well in in-line flattening processes
- Compatible with most varnishes and impregnation compounds
- Retains insulating properties when exposed to cryogenic temperatures
- Compatible with transformer oils
- Excellent hydrolytic stability
Applications
- For Oil-Filled Transformers, Superconducting Coils for Cryogenic Applications and Motors
