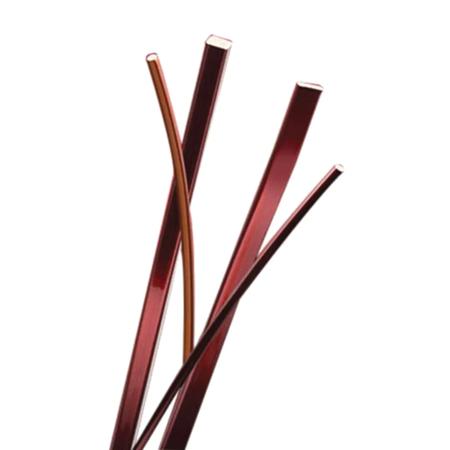

Rea Magnet Wire Formvar Heavy Build Round Magnet Wire
MFR #:FORMPC_HB
EIS #:PH15-FORMPC_HB
Series #:FORMPC_HB
MFR #:FORMPC_HB
EIS #:PH15-FORMPC_HB
Series #:FORMPC_HB
Round heavy build Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials. Today, Formvar is still widely used in oil-filled transformers as well as demanding cryogenic applications. - Rea Formvar round heavy build is a film insulation composed of modified polyvinyl acetyl resins. Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials.
$191.00
- $767.00
Select from the options below
Round heavy build Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials. Today, Formvar is still widely used in oil-filled transformers as well as demanding cryogenic applications. - Rea Formvar round heavy build is a film insulation composed of modified polyvinyl acetyl resins. Designed for continuous operation at 105 °C, Formvar was one of the first magnet wire insulations based on synthetic materials.
Product Options
Showing 8 out of 18 options
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 27 AWG | EIS Part #: RW27HFGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 21 AWG | EIS Part #: RW21HFGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 15-16" Tapered Reel (280) | Wire Size: 18 AWG | EIS Part #: RW18HFQR | $ / US pound Pack: 15-16" Tapered Reel (280) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 18 AWG | EIS Part #: RW18HFGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 15-16" Tapered Reel (280) | Wire Size: 16 AWG | EIS Part #: RW16HFQR | $ / US pound Pack: 15-16" Tapered Reel (280) | ||
Packaging: 15-16" Tapered Reel (280) | Wire Size: 16.5 AWG | EIS Part #: RW16.5HFQR | $ / US pound Pack: 15-16" Tapered Reel (280) | ||
Packaging: 15-16" Tapered Reel (280) | Wire Size: 15 AWG | EIS Part #: RW15HFQR | $ / US pound Pack: 15-16" Tapered Reel (280) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 15 AWG | EIS Part #: RW15HFGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameMagnet Wire
Trade NameFormvar
SeriesFORMPC_HB
General Features
StandardsIEC 60317-1
TypeHeavy Build
Design & Construction
ColorNatural
Insulation MaterialPolyvinyl Formal
MaterialCopper
NEMA RatingMW 18-C
ShapeRound
Physical Properties
Reel Hub Diameter1.536 Inch
Features
- Resistant to mechanical and winding abuse due to superior flexibility and abrasion resistance
- Performs well in in-line flattening processes
- Compatible with most varnishes and impregnation compounds
- Retains insulating properties when exposed to cryogenic temperatures
- Compatible with transformer oils
- Proven performance in oil-filled applications
- Excellent hydrolytic stability
Applications
- For Oil-Filled Transformers, Superconducting Coils for Cryogenic Applications and Motors
