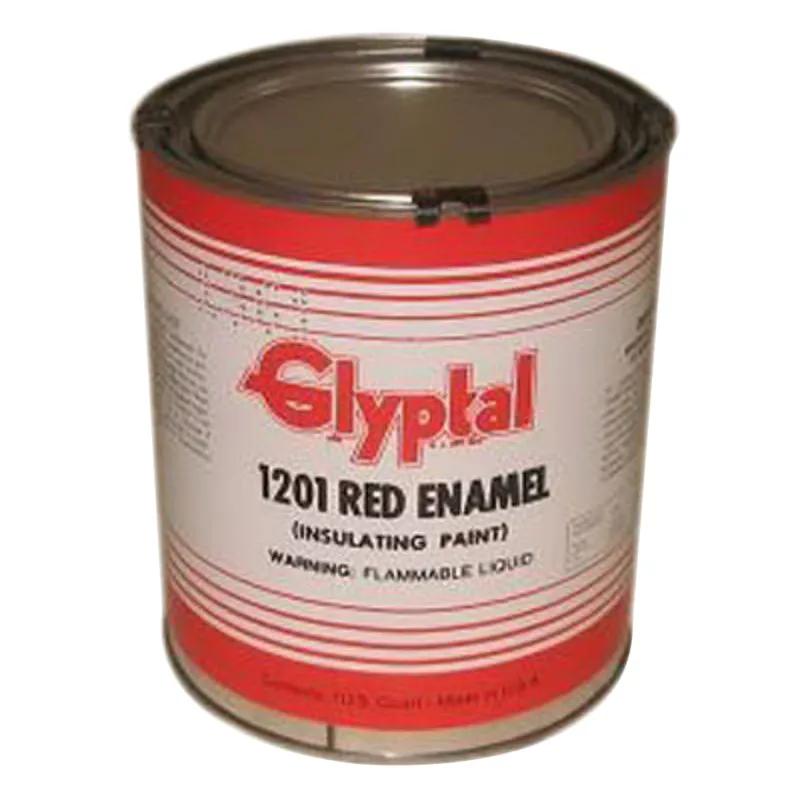

Glyptal 1201B Insulating Enamel
- MFR #1201B
- EIS #PH21-1201B
$84.34 - $228.15
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / US gallon | |
| 1 qt | $ / Quart US l |
Originally produced as an insulating coating for the treatment of coils and armatures, Glyptal 1201's outstanding resistance to corrosion, moisture, heat, acid, oil and dust has seen it employed in numerous industries as a adhesive, primer, sealer and protective finish. - Arc resistance, even with air-dried films, is 480 seconds. 1500 V/Mil dielectric strength, 60% solid form.
Features
- Arc Resistance, even with air-dried films, is 480 sec
- Dielectric strength, is rated at 1500 volts per mil, permits thinner coating than most other paints
- Heat resistance, can withstand continuous temperatures of 135 °C for months
- Water resistance, displays excellent characteristics
- Fast drying, is tack-free in about 30 minutes at room temperature, can be baked for a smooth finish
- Toughness, 1201 has a low-gloss finish designed for great resistance to abrasion
- Prolonged aging, 1201's film doesn't crack, leaving no path for destructive agents to get in
- Prolonged Heat, 3700 hr at 35 °C resulted in no change to dielectric strength
- Excellent as a general purpose paint
- Available in a range of container sizes ready for brushing and may be thinned for spray applications
- Brush/Spray/Dip application method
- A modified 1201, having greater viscosity and designed for use in applications where a heavier film is required for thread sealing gasket, may be used in vacuum atmospheres
- Viscosity: 2000 CP at 25 °C
- Temperature Rating: 72 °F Flash Point
Applications
- Electrical Insulation for Coils and Armatures
- Coating for the Interior of Hydraulic Tanks and Bearing Cases
- Anti-Moisture Coating for Thermostat, Truck Control and Water Cooler Parts
- Primer and Finish for Motor, Generator and Transformer Housings
- Sealer for Concrete Floors
- Sealer for Pipe and Stud Threads and Vacuum Systems
- Anti-Corrosion Protection for Winches and Other Apparatus
General Information
| Item Name | Insulating Enamel |
| Series | 1201B |
Design & Construction
| Color | Red Alkyd |
| Form | 70% Solid |
Performance Details
| Full Cure Time | 2 hr |
| Gel Time | 0.5 hr |
Chemical Properties
| Specific Gravity | 1.44 |
| Viscosity | 2000 cP |
| VOC | 3.98 g/L |
Electrical Properties
| Dielectric Strength | 1500 V/mil |
Environmental Condition
| Temperature Rating | 72 °F |
