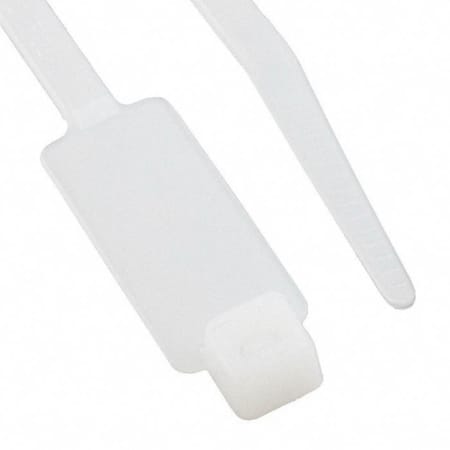

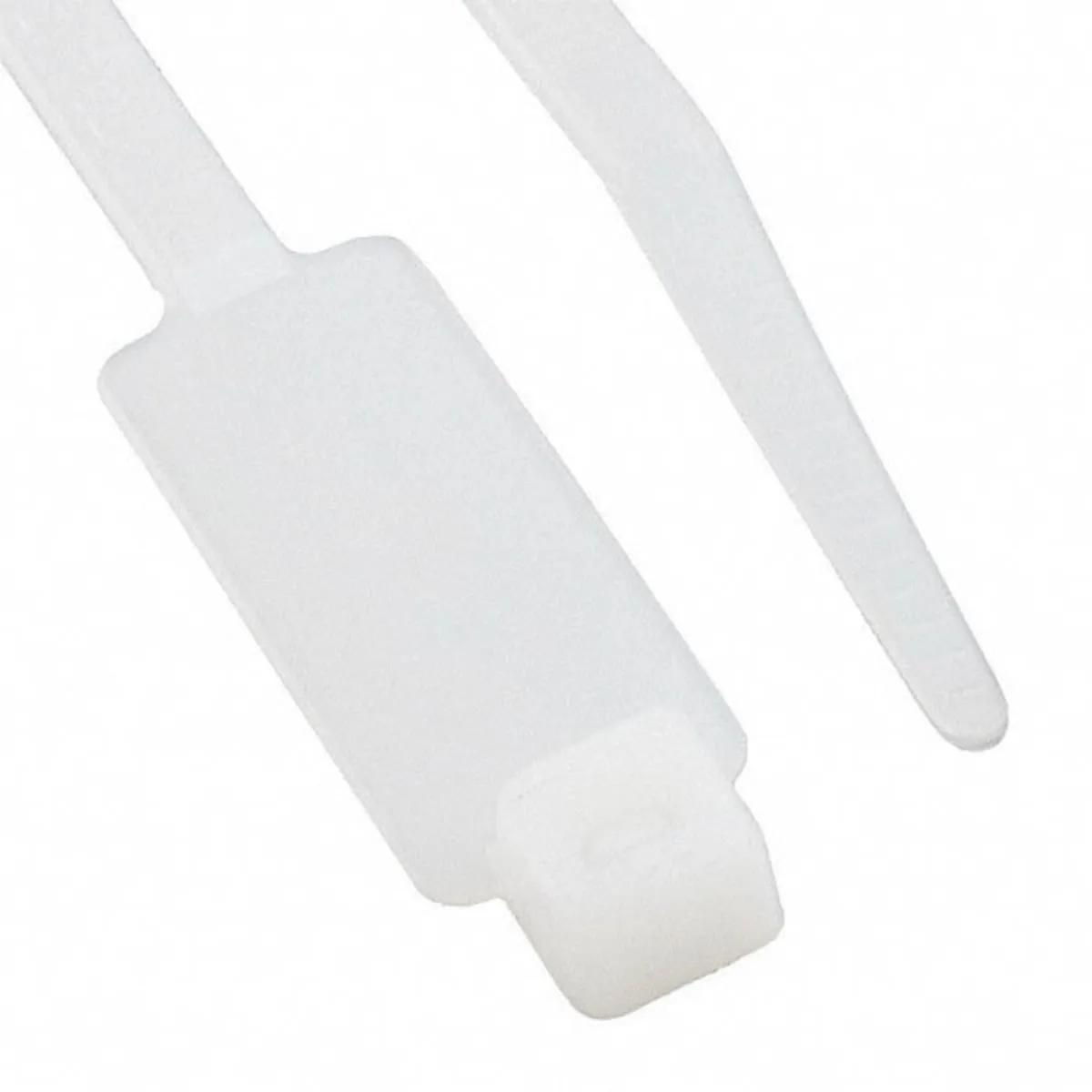

HellermannTyton IT50R9C2 Natural Polyamide Identification Tie, 8" L, 50 lb, 100/Pack
- EIS #TIEIT50R9C2
- Series #IT50R
- UPC #00089306020585
$160.53 / 100Piece
Pack: 100/Pack
Available to Order
Min QTY1QTY Increment1
more info
Pack100/Pack
HellermannTyton natural 50 lb Identification cable ties feature an identification plate allowing wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. - This 50 lb plates can be marked using a permanent marker or with a HellermannTyton adhesive label. Tie and identify bundles of cable in one operation. HellermannTyton's identification ties have large flat areas for imprinting or labeling information.
Features
- Identification plate feature allows bundles to be easily marked and identified
- Wire and cable harnesses can be secured and identified using just one product, which saves time
- Plates can be marked manually with a permanent marker or with a pre-printed adhesive label
- Halogen free
- 1.1 Inch x 0.51 Inch marker write-on area
General Information
| Item Name | Identification Tie |
| Series | IT50R |
General Features
| Standards | UL94 V-2, UL 62275, 746B, 1565 Listed, DNV GL, MS3368, SAE-AS33681, RoHS, REACH Compliant |
Design & Construction
| Color | Natural |
| Locking Mechanism | Self Locking |
| Material | Polyamide 6.6 |
| Mounting | Free Hanging (In-Line) |
Performance Details
| Operating Temperature | -40 to 185 °F |
| Tensile Strength | 50 lb |
Physical Properties
| Bundle Diameter | 0.37 - 1.8 Inch |
| Head Height | 0.23 Inch |
| Head Width | 0.31 Inch |
| Length | 8 Inch |
| Thickness | 0.05 Inch |
| Width | 0.18 Inch |
Supporting Information
| For Use With | EVO7, MK7HT, MK7P, MK9, MK9HT, MK9P Tools |
