MFR #:HDT
EIS #:PH21-HDT
Series #:HDT
MFR #:HDT
EIS #:PH21-HDT
Series #:HDT

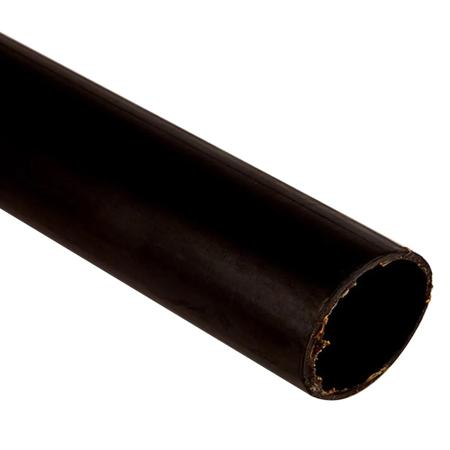

HDT tubing comes with a factory-applied sealant. This sealant is a heat-activated thermoplastic material that remains soft and flexible over long periods under adverse environmental conditions. During heating the sealant softens, bonds to underlying surfaces and fills small voids that might be present. When cool, the sealant forms a barrier against water, moisture, dirt and other environmental contaminants. - 3M™ heat shrink tubing HDT is designed to provide reliable performance as well as excellent mechanical and environmental protection. This flame retardant product combines the important advantage of easy handling and installation with maximum operating reliability and system protection.
$3.57
- $910.73
Select from the options below
HDT tubing comes with a factory-applied sealant. This sealant is a heat-activated thermoplastic material that remains soft and flexible over long periods under adverse environmental conditions. During heating the sealant softens, bonds to underlying surfaces and fills small voids that might be present. When cool, the sealant forms a barrier against water, moisture, dirt and other environmental contaminants. - 3M™ heat shrink tubing HDT is designed to provide reliable performance as well as excellent mechanical and environmental protection. This flame retardant product combines the important advantage of easy handling and installation with maximum operating reliability and system protection.
Product Options
Showing 4 out of 4 options
Length: 4 ft | Expandable Diameter: 7 Inch | Color: Black | EIS Part #: HDT-7000-48A | $ / Piece Pack: 5 Pieces/Carton | ||
Length: 3 Inch | Expandable Diameter: 0 Inch | Color: Black | EIS Part #: HDT-1500-3A | $ / Piece | ||
Length: 4 ft | Expandable Diameter: 0.8 Inch | Color: Red/Black | EIS Part #: HDT-0800-48A | $ / Piece Pack: 20 Pieces/Carton | ||
Length: 4 ft | Expandable Diameter: 1.1 Inch | Color: Red/Black | EIS Part #: 3MHDT110048A | $ / Foot Pack: 20 Pieces/Carton |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesHDT
General Features
Shelf Life120 Months
TypeHeavy-Duty, Adhesive-Lined
Design & Construction
Insulation MaterialCross-Linked Polyolefin
Minimum Shrink Temperature121 °C
Wall TypeHeavy
Performance Details
Tensile Strength2400 psi
Heat Aging7 Days
Shrink Ratio3:1
Heat Shock4 hr
Low Temperature Flexibility55 °C
Chemical Properties
Specific Gravity1.28
Electrical Properties
Dielectric Strength500 V/Mil
Physical Properties
Elongation475%
Water Absorption0.02%
Features
- Heavy-duty fabricated from specially formulated cross-linked polyolefin, assuring long-term environmental protection
- Highly chemical, abrasion and split resistant
- Self-extinguishing
- No dripping, flowing or cracking (4 hr at 225 °C) of heat shock
Applications
- Can be Used as Cable Sleeve, Flame-Retardant, Polyolefin for 1 kV or Other Long Term Environmental Protection
