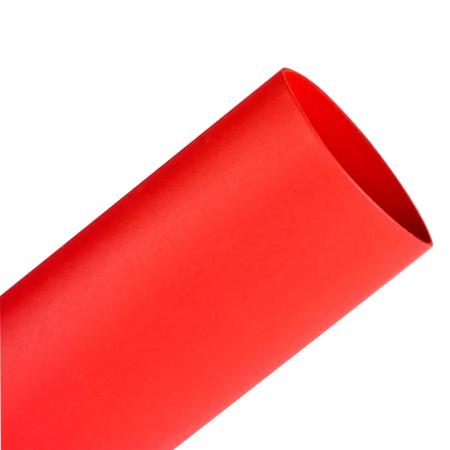

3M FP-301VW 2:1 NT Highly Flame-Retardant Heat Shrink Tubing, MFR ID FP-301VW-NT
- MFR #:FP-301VW-NT
- EIS #:PH21-FP-301VW-NT
- Series #:FP-301VW-NT
- MFR #:FP-301VW-NT
- EIS #:PH21-FP-301VW-NT
- Series #:FP-301VW-NT
3M™ Heat Shrink Tubing FP-301VW has the same outstanding balance of electrical, physical and chemical properties as FP-301 tubing and is specially engineered for excellent flame resistance. Non-nutrient Fungus Resistance. - FP-301VW tubing is rated for continuous operation at -55 °C (-67 °F) to 135 °C (275 °F), and is designed to withstand elevated temperatures to 300 °C (572 °F) for short periods.
$1.99
- $178.85
Select from the options below
3M™ Heat Shrink Tubing FP-301VW has the same outstanding balance of electrical, physical and chemical properties as FP-301 tubing and is specially engineered for excellent flame resistance. Non-nutrient Fungus Resistance. - FP-301VW tubing is rated for continuous operation at -55 °C (-67 °F) to 135 °C (275 °F), and is designed to withstand elevated temperatures to 300 °C (572 °F) for short periods.
Product Options
Showing 2 out of 2 options
 | Expandable Diameter: 0.375 Inch | Length: 200 ft | Color: Red | EIS Part #: FP3013/8REDNTVW1 | $ / Foot | |
| Expandable Diameter: 1 Inch | Length: 100 ft | Color: Red | EIS Part #: FP3011REDNTVW1 | $ / Foot Pack: 300 ft/Box |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesFP-301VW-NT
General Features
TypeHighly Flame-Retardant
Shelf Life120 Months
Design & Construction
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature100 °C
Wall TypeSingle-Thin
Performance Details
Heat Aging168 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength2400 psi
Chemical Properties
Specific Gravity1.5
Electrical Properties
Dielectric Strength900 V/mil
Voltage Rating600 V
Physical Properties
Elongation400%
Water Absorption0.2%
Features
- The recovered wall thickness is proportional to the degree of recovery
- When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter
- High expansion ratios available subject to factory quotation
- Non-corrosive chemical effect
- 1000 psi tensile strength and 400 V/Mil dielectric strength chemical solvent resistances
- No dripping, cracking, passes mandrel wrap test (4 hr at 250 °C) of heat shock
- Self-extinguishing
- Volume Resistivity: 10^15 Ohm-cm
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 135 °C
Applications
- Ideal for Fire-Resistant Coverings of Components and Flammable Wire Assemblies
