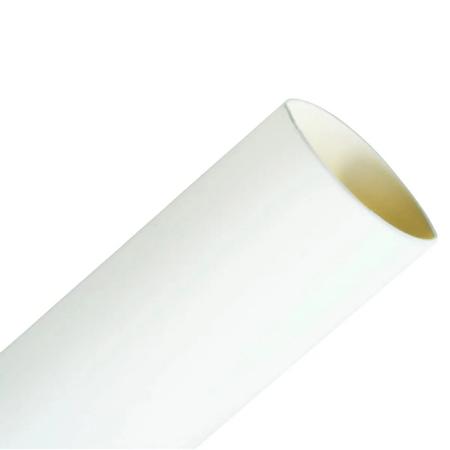

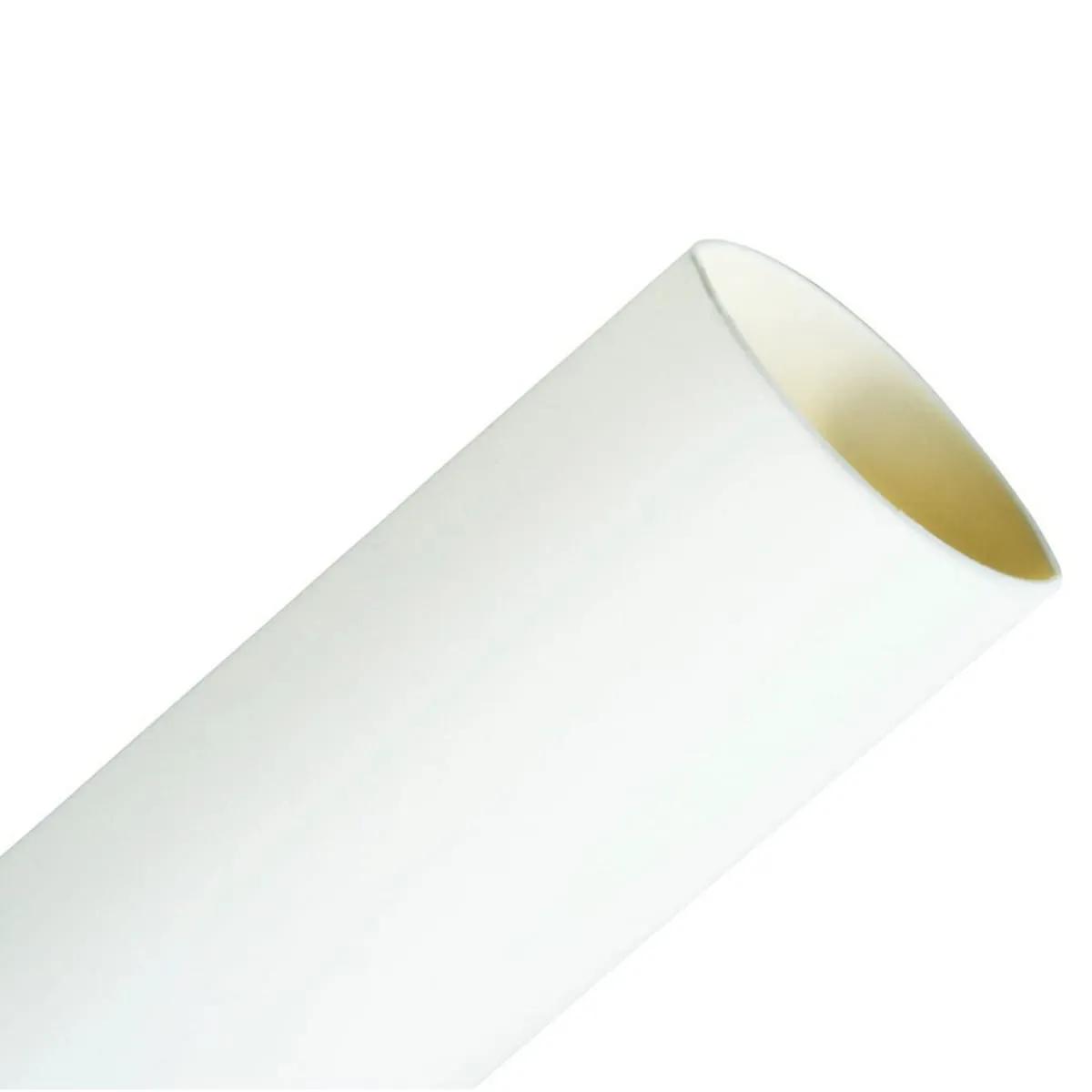

3M FP-301VW 2:1 Highly Flame-Retardant Heat Shrink Tubing

3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
  • MFR #:FP-301VW
  • EIS #:PH21-FP-301VW
  • Series #:FP-301VW
  • MFR #:FP-301VW
  • EIS #:PH21-FP-301VW
  • Series #:FP-301VW
0
0
3M™ Heat Shrink Tubing FP-301VW has the same outstanding balance of electrical, physical and chemical properties as FP-301 tubing and is specially engineered for excellent flame resistance. Non-nutrient Fungus Resistance. - FP-301VW tubing is rated for continuous operation at -55 °C (-67 °F) to 135 °C (275 °F), and is designed to withstand elevated temperatures to 300 °C (572 °F) for short periods.
$62.62
 - $1,239.55
Select from the options below
0
0
3M™ Heat Shrink Tubing FP-301VW has the same outstanding balance of electrical, physical and chemical properties as FP-301 tubing and is specially engineered for excellent flame resistance. Non-nutrient Fungus Resistance. - FP-301VW tubing is rated for continuous operation at -55 °C (-67 °F) to 135 °C (275 °F), and is designed to withstand elevated temperatures to 300 °C (572 °F) for short periods.

Product Options

Showing 8 out of 9 options
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
50 ft
Expandable Diameter:
4 Inch
Color:
Black
EIS Part #:
FP3014BLKVW1
$ / Foot
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
50 ft
Expandable Diameter:
3 Inch
Color:
Black
EIS Part #:
FP3013BLKVW1
$ / Foot
Pack: 50 ft/Box
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
200 ft
Expandable Diameter:
0.375 Inch
Color:
Black
EIS Part #:
FP3013/8BKVW1
$ / Foot
Pack: 3 Spool/Case
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
200 ft
Expandable Diameter:
0.75 Inch
Color:
Black
EIS Part #:
FP3013/4BLKVW1
$ / Foot
Pack: 600 ft/Box
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
250 ft
Expandable Diameter:
0.187 Inch
Color:
Black
EIS Part #:
FP3013/16BKVW1
$ / Foot
Pack: 750 ft/Box
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
100 ft
Expandable Diameter:
2 Inch
Color:
Black
EIS Part #:
FP3012BLKVW1
$ / Foot
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
100 ft
Expandable Diameter:
1 Inch
Color:
Black
EIS Part #:
FP3011BLKVW1
$ / Foot
3M-PH21-FP-301VW;PH21-FP-301VW-NT-Images
Length:
500 ft
Expandable Diameter:
0.125 Inch
Color:
Black
EIS Part #:
FP3011/8BLKVW5
$ / Foot
Pack: 1500 ft/Carton

Attributes

General Information

Item NameHeat Shrink Tubing

SeriesFP-301VW

General Features

TypeHighly Flame-Retardant
Shelf Life120 Months

Design & Construction

Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature100 °C
Wall TypeSingle-Thin

Performance Details

Heat Aging168 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength2400 psi

Chemical Properties

Specific Gravity1.5

Electrical Properties

Dielectric Strength900 V/mil
Voltage Rating600 V

Physical Properties

Elongation400%
Water Absorption0.2%
