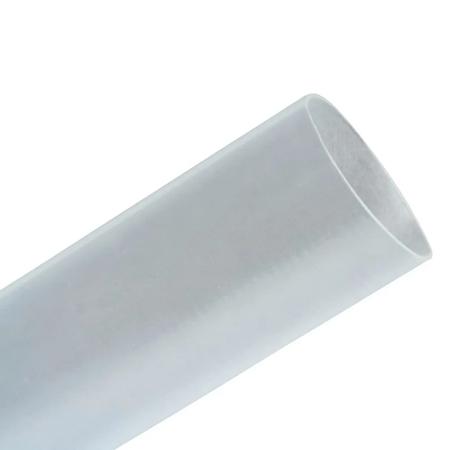

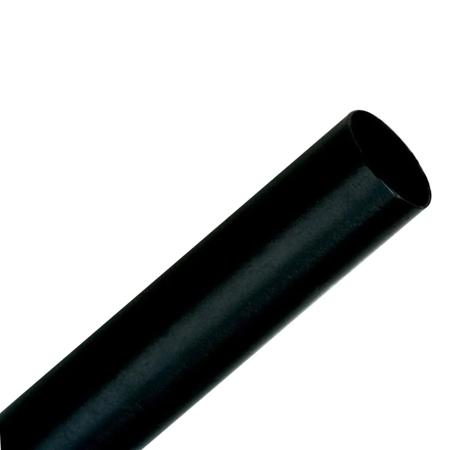

3M FP-301 2:1 Ratio Flame-Retardant Heat Shrink Tubing
- MFR #:FP-301
- EIS #:PH21-FP-301
- Series #:FP-301
- MFR #:FP-301
- EIS #:PH21-FP-301
- Series #:FP-301
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. - Rated for 135 °C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
$28.81
- $1,421.89
Select from the options below
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. - Rated for 135 °C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
Product Options
Showing 8 out of 58 options
 | Length: 50 ft | Expandable Diameter: 4 Inch | Color: Yellow | EIS Part #: FP3014YEL1 | $ / Foot | |
 | Length: 50 ft | Expandable Diameter: 4 Inch | Color: Black | EIS Part #: FP3014BLK1 | $ / Foot Pack: 50 ft/Box | |
| Length: 50 ft | Expandable Diameter: 3 Inch | Color: Yellow | EIS Part #: FP3013YEL1 | $ / Foot | |
| Length: 50 ft | Expandable Diameter: 3 Inch | Color: Black | EIS Part #: FP3013BLK1 | $ / Foot Pack: 50 ft/Case | |
 | Length: 200 ft | Expandable Diameter: 0.375 Inch | Color: Red | EIS Part #: FP3013/8RED1 | $ / Foot Pack: 600 ft/Box | |
 | Length: 100 ft | Expandable Diameter: 0.375 Inch | Color: Clear | EIS Part #: FP3013/8CLRS1 | $ / Foot | |
| Length: 200 ft | Expandable Diameter: 0.375 Inch | Color: Clear | EIS Part #: FP3013/8CLR1 | $ / Foot Pack: 600 ft/Case | |
 | Length: 200 ft | Expandable Diameter: 0.375 Inch | Color: Blue | EIS Part #: FP3013/8BLU1 | $ / Foot Pack: 600 ft/Box |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesFP-301
General Features
TypeFlame-Retardant
Shelf Life120 Months
Design & Construction
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature100 °C
Wall TypeSingle-Thin
Performance Details
Heat Aging336 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength2400 psi
Electrical Properties
Dielectric Strength900 V/mil
Voltage Rating600 V
Physical Properties
Elongation400%
Water Absorption0.2%
Features
- Designed to withstand elevated temperatures to 300 °C (572 °F) for short periods
- When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter
- The recovered wall thickness is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- 1000 psi tensile strength and 400 V/Mil dielectric strength chemical solvent resistance
- No dripping, flowing or cracking, passes mandrel wrap test (4 hr at 250 °C) of heat shock
- Self-extinguishing
Applications
- Used as a Shrink-Fit Electrical Insulation Over Cable Splices and Terminations, also Used for Lightweight Wire Harness Covering, Wire Marking, Wire Bundling, Component Packaging and Fire-Resistant Covering
