MFR #:EPS-400
EIS #:PH21-EPS-400
Series #:EPS-400
MFR #:EPS-400
EIS #:PH21-EPS-400
Series #:EPS-400

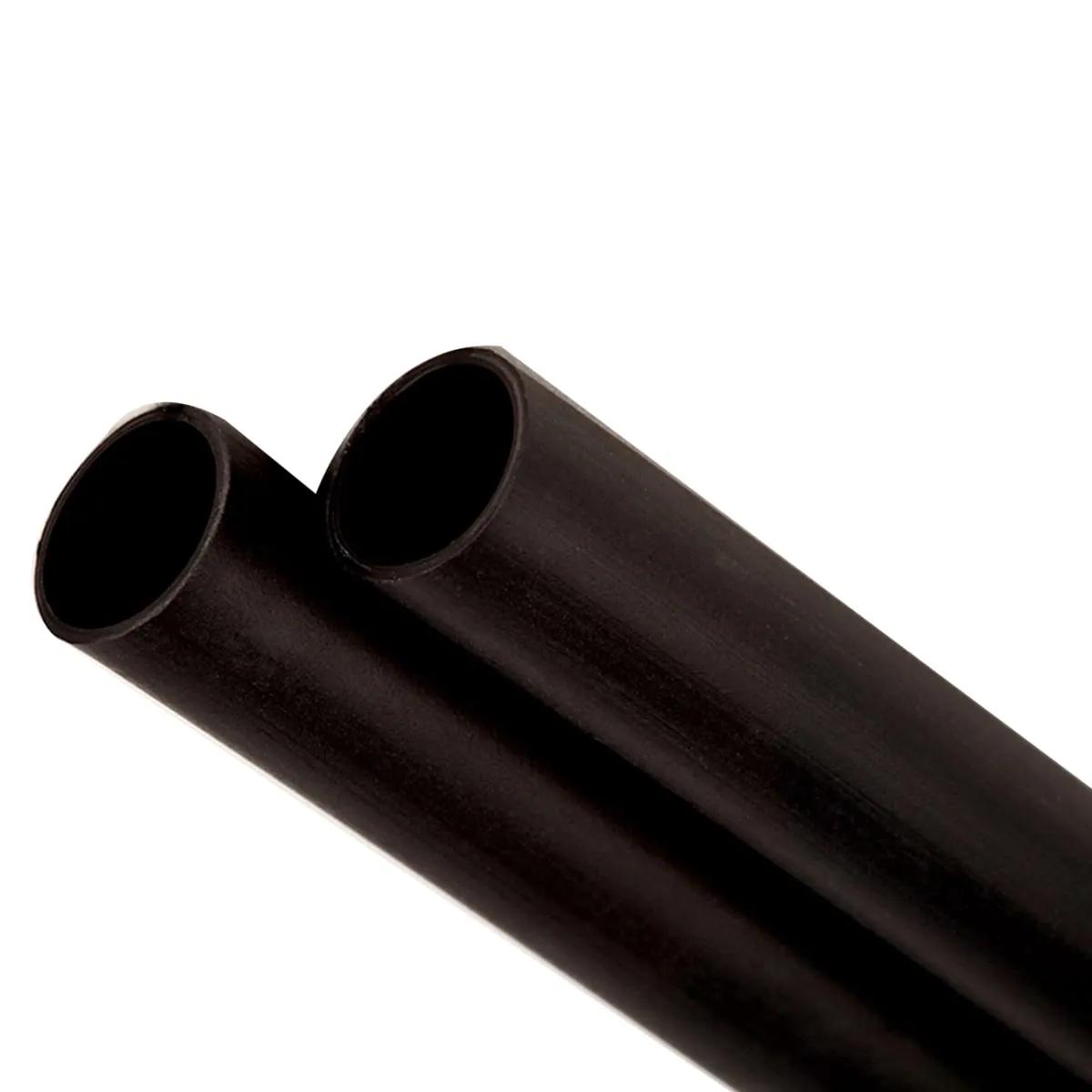

3M™ Heat Shrink Tubing EPS-400 is a medium-wall, semi-rigid tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
$260.54
- $536.55
Select from the options below
3M™ Heat Shrink Tubing EPS-400 is a medium-wall, semi-rigid tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Product Options
Showing 3 out of 3 options
Length: 20 ft | Expandable Diameter: 0.7 Inch | EIS Part #: EPS400.700SM | $ / Box | ||
Length: 48 ft | Expandable Diameter: 0.45 Inch | EIS Part #: EPS400.450ID | $ / Box | ||
Length: 4 ft | Expandable Diameter: 0.45 Inch | EIS Part #: EPS400.4502 | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesEPS-400
General Features
Shelf Life120 Months
TypeAdhesive-Lined, Semi-Rigid
Design & Construction
ColorBlack
Insulation MaterialPolyolefin
Minimum Shrink Temperature121 °C
Wall TypeDual
Performance Details
Tensile Strength1900 psi
Heat Aging168 hr
Shrink Ratio4:1
Heat Shock4 hr
Low Temperature Flexibility55 °C
Chemical Properties
Specific Gravity1.25
Electrical Properties
Dielectric Strength700 V/mil
Physical Properties
Elongation400%
Water Absorption0.3%
Environmental Condition
Reflow Temperature80 °C
Features
- When heated in excess of 121 °C (250 °F), EPS-400 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive to flow and cover the substrate
- Upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and water resistant barrier
- Adhesive reflow will occur at temperatures above 80 °C (176 °F)
- Offers protection for sealing voids in multiple wire bundles for automotive and marine applications
- Non-nutrient fungus resistance
- Non-corrosive chemical effect
- Excellent fluid resistance
- No dripping, flowing or cracking (4 hr at -55 °C) of heat shock
- Self-extinguishing
- Volume Resistivity: 10^14 Ohm-cm
- Reflow Temperature: >80 °C
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 110 °C
Applications
- Offers Excellent Environmental Protection for Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts, Automotive, Truck and Marine Wire Splices and Harness Breakouts are also Quickly and Easily Protected from a Variety of Harsh Environments
