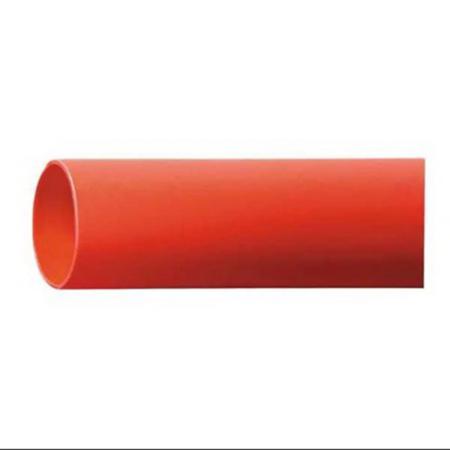

3M EPS-300 3:1 Adhesive-Lined Heat Shrink Tubing
- MFR #EPS-300
- EIS #PH21-EPS-300
- Series #EPS-300
$156.33 - $1,538.43
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 4 ft | 0.125 Inch | Black | $ / Foot | |
| 4 ft | 0.187 Inch | Black | $ / Foot | |
 | 4 ft | 0.375 Inch | Clear | $ / Foot | |
 | 4 ft | 0.375 Inch | Black | $ / Foot | |
| 4 ft | 0.25 Inch | Clear | $ / Foot | |
 | 48 ft | 0.25 Inch | Black | $ / Box |
3M™ Heat Shrink Tubing EPS-300 is a thin-wall tubing offering the advantages of integral, adhesive-lined construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics.
Features
- When heated in excess of 121 °C (250 °F), EPS-300 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive to flow and cover the substrate
- The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals
- Upon cooling, the adhesive solidifies forming a durable, non-drying, flexible and water resistant barrier
- When freely recovered, the tubing will shrink to 33% of its original diameter
- The recovered wall thickness of the tubing is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- Excellent fluid resistance
- Self-extinguishing
- No dripping, flowing or cracking (4 hr at 225 °C) of heat shock
- Volume Resistivity: 10^14 Ohm-cm
- Reflow Temperature: >80 °C
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 110 °C
Applications
- Offers Excellent Environmental Protection for Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts, Automotive, Truck and Marine Wire Splices and Harness Breakouts are also Quickly and Easily Protected from a Variety of Harsh Environments
- Automotive, Truck and Marine Wiring Splices and Harness Breakouts are Quickly and Easily Protected from Harsh Environments
General Information
| Item Name | Heat Shrink Tubing |
| Series | EPS-300 |
General Features
| Type | Adhesive-Lined |
| Shelf Life | 120 Months |
Design & Construction
| Insulation Material | Flexible Polyolefin |
| Minimum Shrink Temperature | 121 °C |
| Wall Type | Dual-Thin |
Performance Details
| Heat Aging | 168 hr |
| Heat Shock | 4 hr |
| Low Temperature Flexibility | 55 °C |
| Shrink Ratio | 3:1 |
| Tensile Strength | 2100 psi |
Chemical Properties
| Specific Gravity | 1.3 |
Electrical Properties
| Dielectric Strength | 700 V/mil |
| Voltage Rating | 600 V |
Physical Properties
| Elongation | 450% |
| Water Absorption | 0.3% |
Environmental Condition
| Reflow Temperature | 80 °C |
