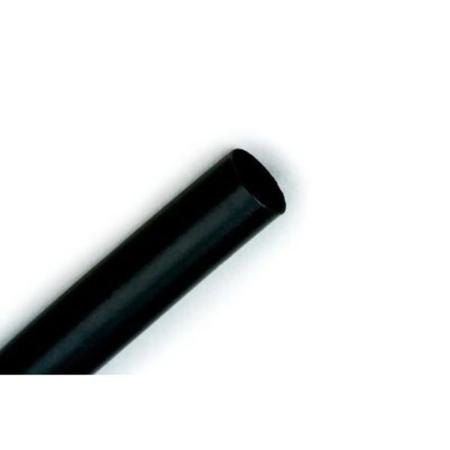

3M FP-301VW 2:1 Highly Flame-Retardant Heat Shrink Tubing, 3/8", 200' Per Spool, Black, MFR ID 7100025735
- MFR #7100025735
- EIS #FP3013/8BLKVW1
- UPC #00054007084921
$76.15 / 100Foot
Pack: 3 Spool/Case
In Stock | Ready to Ship
Min QTY1QTY Increment1more infoPack3 Spool/Case
3M™ Heat Shrink Tubing FP-301VW is color-coded for quick and easy identification of the wire. This tubing is perfect for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring. It withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C). UL Listed, MIL-DTL-23053/5, Class 3, CSA Certified and RoHS 2011/65/EU Compliant.
3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.
Features
- Balances electrical, physical and chemical properties for various industrial and military applications
- Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
- Made of black flexible polyolefin
- Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
- Rated for 600V applications
Applications
- Ideal for Fire-Resistant Coverings of Components and Flammable Wire Assemblies
General Information
| Item Name | Heat Shrink Tubing |
| Trade Name | 3M |
General Features
| Shelf Life | 120 Months |
Design & Construction
| Color | Black |
| Insulation Material | Flexible Polyolefin |
| Minimum Shrink Temperature | 100 °C |
| Wall Type | Single-Thin |
Performance Details
| Flame Retardant | Yes |
| Heat Aging | 168 hr |
| Heat Shock | 4 hr |
| Low Temperature Flexibility | -55 °C |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 psi |
Chemical Properties
| Specific Gravity | 1.5 |
Electrical Properties
| Dielectric Strength | 900 V/mil |
| Voltage Rating | 600 V |
Physical Properties
| Elongation | 400% |
| Expandable Diameter | 0.375 Inch |
| Length | 200 ft |
| Recovered Diameter | 0.187 Inch |
| Wall Thickness | 0.025 Inch |
| Water Absorption | 0.2% |
Environmental Condition
| Temperature Rating | -55 to 135 °C |
