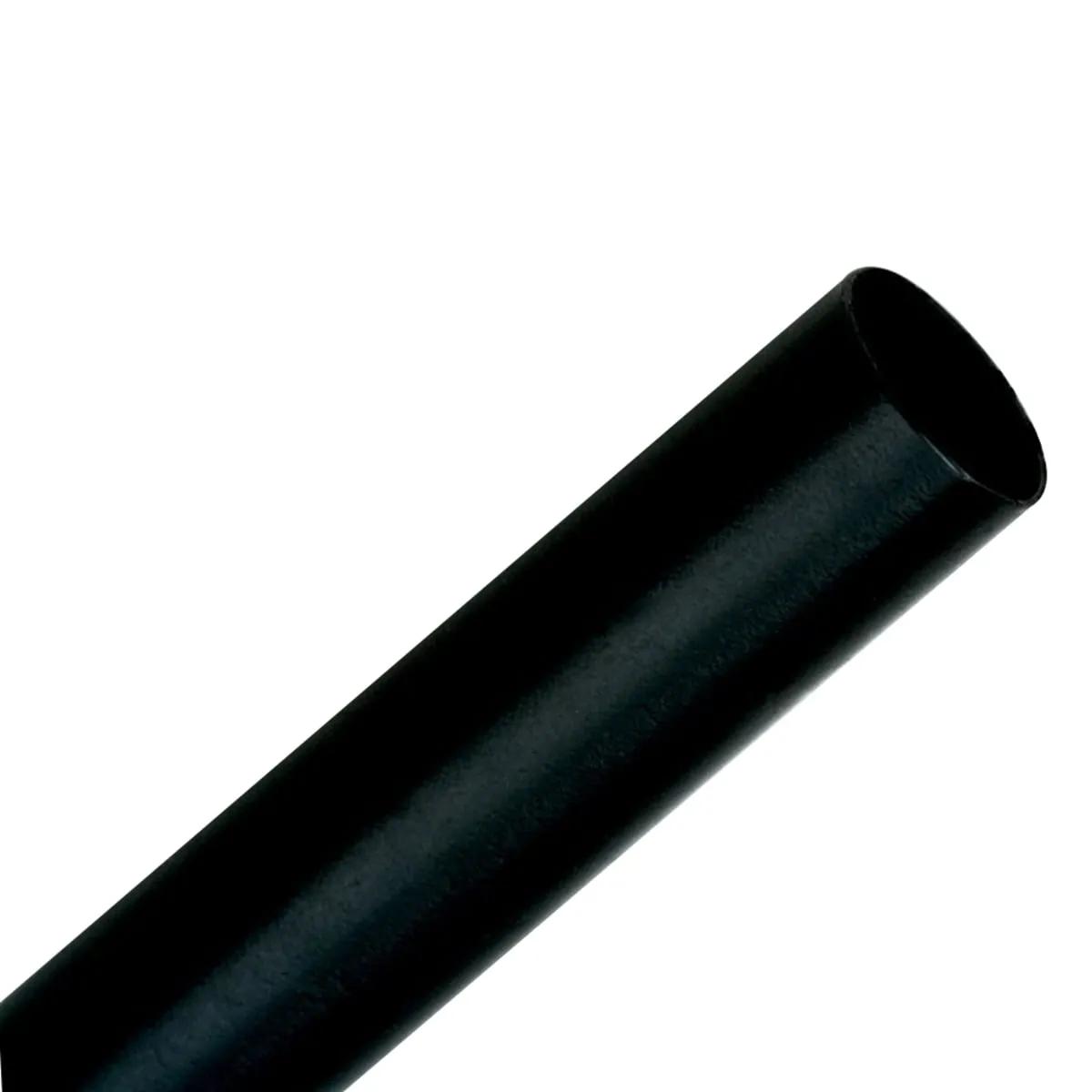

3M FP-301 2:1 Ratio Flame-Retardant Heat Shrink Tubing, 3/8", 100' Per Spool, Black
MFR #:7100030655
EIS #:FP3013/8BLKS1
MFR #:7100030655
EIS #:FP3013/8BLKS1
Temporarily Out of Stock
Min Qty:1
|Qty Increment:1
Pack:300 ft/Case
Rated for 135 °C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.
$75.07 / 100 Foot
Pack: 300 ft/Case
Min Qty:1
|Qty Increment:1
Pack:300 ft/Case
Rated for 135 °C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
Trade Name3M
General Features
Shelf Life120 Months
Design & Construction
ColorBlack
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature100 °C
Wall TypeSingle-Thin
Performance Details
Flame RetardantYes
Tensile Strength2400 psi
Heat Aging336 hr
Shrink Ratio2:1
Heat Shock4 hr
Low Temperature Flexibility-55 °C
Chemical Properties
Specific Gravity1.3
Electrical Properties
Dielectric Strength900 V/mil
Voltage Rating600 V
Physical Properties
Length100 ft
Wall Thickness0.025 Inch
Elongation400%
Expandable Diameter0.375 Inch
Water Absorption0.2%
Recovered Diameter0.187 Inch
Environmental Condition
Temperature Rating-55 to 135 °C
Features
- Designed to withstand elevated temperatures to 300 °C (572 °F) for short periods
- When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter
- The recovered wall thickness is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- 1000 psi tensile strength and 400 V/Mil dielectric strength chemical solvent resistance
- No dripping, flowing or cracking, passes mandrel wrap test (4 hr at 250 °C) of heat shock
- Self-extinguishing
- Length: 100 ft Per Spool
- Volume Resistivity: 10^15 Ohm-cm
- Wall Thickness: 0.025 Inch (Recovered)
- Low Temperature Flexibility: -55 °C
- Temperature rating: -55 to 135 °C
Applications
- Used as a Shrink-Fit Electrical Insulation Over Cable Splices and Terminations, also Used for Lightweight Wire Harness Covering, Wire Marking, Wire Bundling, Component Packaging and Fire-Resistant Covering
