Leeson 842-B Washdown Gear Reducer, MFR ID 842-B-WGR

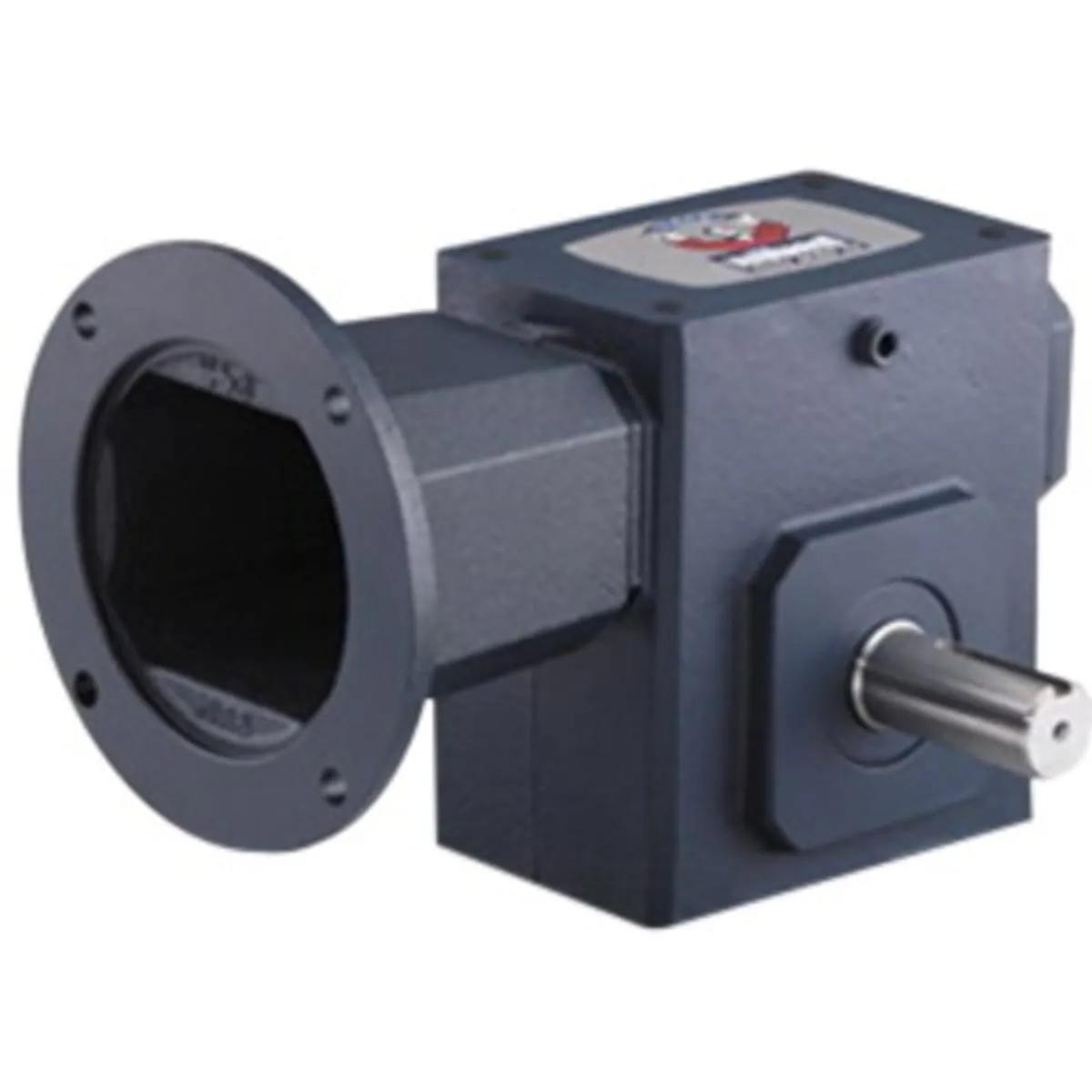

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:842-B-WGR
  • EIS #:PH23-842-B-WGR
  • MFR #:842-B-WGR
  • EIS #:PH23-842-B-WGR
0
0
Leeson Electric 842 Style B Washdown Gear Reducers are directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse. Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles. - Leeson Electric 842 Style B Washdown Gear Reducer has one-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment. Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles. Features o-rings on all bearing covers, eliminating gaskets, sealants and leaks.
$3,985.19
 - $4,135.55
Select from the options below
0
0
Leeson Electric 842 Style B Washdown Gear Reducers are directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse. Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles. - Leeson Electric 842 Style B Washdown Gear Reducer has one-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment. Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles. Features o-rings on all bearing covers, eliminating gaskets, sealants and leaks.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Input HP
1.79 HP
Output Speed
22 rpm
Gear Ratio
80:1
EIS Part #
MOTW8420035
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Input HP
5.23 HP
Output Speed
58 rpm
Gear Ratio
30:1
EIS Part #
MOTW8420031
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Input HP
4.2 HP
Output Speed
44 rpm
Gear Ratio
40:1
EIS Part #
MOTW8420020
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Input HP
9.3 HP
Output Speed
117 rpm
Gear Ratio
15:1
EIS Part #
MOTW8420004
$ / Piece

Attributes

General Information

Item NameGear Reducer
Trade NameOHIO Gear™

Series842-B-WGR

General Features

TypeStyle B, Washdown

Design & Construction

Gear MaterialBronze
Gear TypeWorm
MaterialCast Iron
Seal TypeDual Lip

Performance Details

Input Speed1750 rpm

Physical Properties

Dimensions4.25 Inch Center Distance
