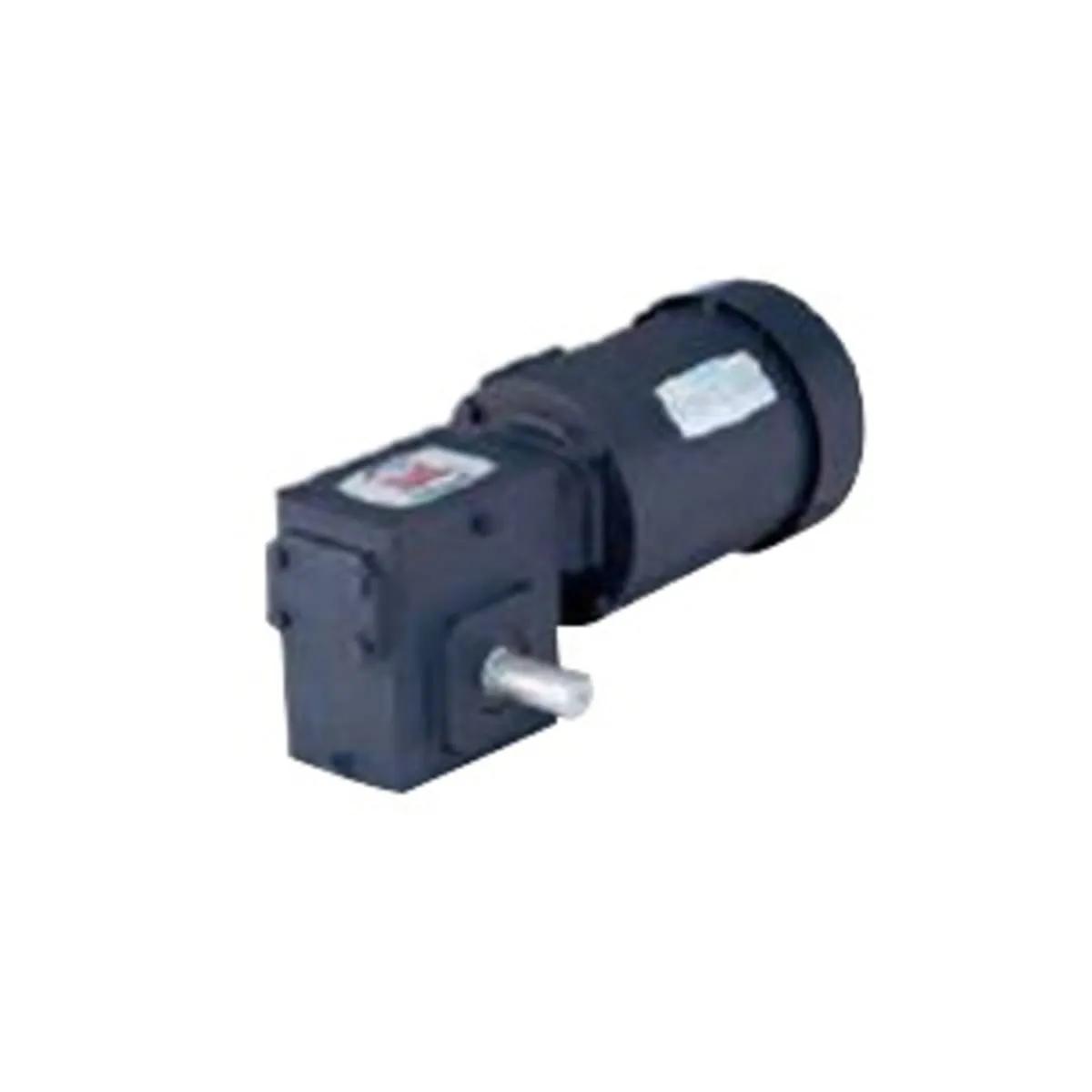

Leeson 815-BMQ Gear Reducer
- MFR #815
- EIS #PH23-815
$847.95 - $1,147.18
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | ||||
|---|---|---|---|---|
 | 44 lb-Inch | 40:1 | $ / Piece | |
 | 347 lb-Inch | 40:1 | $ / Piece |
Motorized, quill input solid output shaft. Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles. O-rings on all bearing covers, eliminating gaskets, sealants and leaks. Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles. - One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment. Directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse.
Applications
- For Industrial Use
General Information
| Item Name | Gear Reducer |
| Trade Name | OHIO Gear™ |
| Series | 815 |
Design & Construction
| Gear Material | Bronze |
| Gear Type | Worm |
| Material | Cast Iron |
| Seal Type | Dual Lip |
| Shaft Position | Horizontal |
Performance Details
| Input Speed | 1750 rpm |
Physical Properties
| Dimensions | 1.5 Inch Center Distance |
| Frame Size | 56 |
