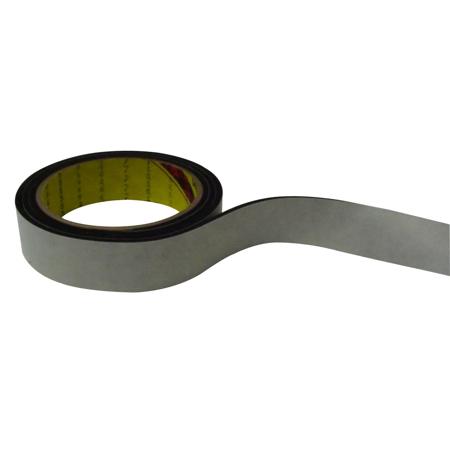

3M 4718 Single Coated Vinyl Foam Tape
- MFR #4718
- EIS #PH22-4718
$63.62 - $109.09
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.25 Inch | $ / Roll Pack: 36/Case |
3M vinyl foam tape 4718 includes an acrylic adhesive with good quick-stick on contact. It offers good aging characteristics and will remain flexible when exposed to elevated temperatures and UV light. The conformable foam and adhesive of this tape combine to provide reliable performance on curved or irregular surfaces in various industrial applications. - 3M vinyl foam tape 4718 includes a closed cell, medium density foam backing with a pressure sensitive acrylic adhesive on one side. It allows for quick-stick to a variety of substrates including many metals, glass and plastics. The silicone treated white paper liner allows for die-cutting without having to laminate another liner to the foam.
Features
- Black, 1/8 Inch thick closed cell medium density foam carrier helps seal out dust, light and moisture
- Durable acrylic adhesive on one side of foam offers good aging and UV resistance
- Paper liner allows for die cutting without having to laminate another liner to foam
- Designed for demanding gasketing, cushioning, damping and insulating applications
- Conformable properties allow taping or sealing on curved or irregular surfaces
- Temperature rating of 0 to 150 °F
Applications
- For Transportation, Specialty Vehicle, Construction, General Industrial, Appliance
General Information
| Item Name | Foam Tape |
| Series | 4718 |
General Features
| Type | Single Coated |
| Shelf Life | 18 Months |
| Storage Temperature | 60 to 80 °F |
Design & Construction
| Adhesive Type | Acrylic |
| Applicable Material | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
| Backing Material | Vinyl Foam |
| Color | Black/White Liner |
| Liner Material | Paper |
Performance Details
| Tensile Strength | 95 psi |
Electrical Properties
| Dielectric Strength | 60 V/mil |
Physical Properties
| Core Size | 15 Inch |
| Elongation | 200% |
| Width | 0.250 Inch |
| Length | 36 Yard |
| Thickness | 125 mil |
Environmental Condition
| Resists | Dust, Light, Moisture, UV |
| Temperature Rating | 150 °F |
Supporting Information
| Applicable Materials | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
