MFR #:9713
EIS #:PH22-9713
MFR #:9713
EIS #:PH22-9713

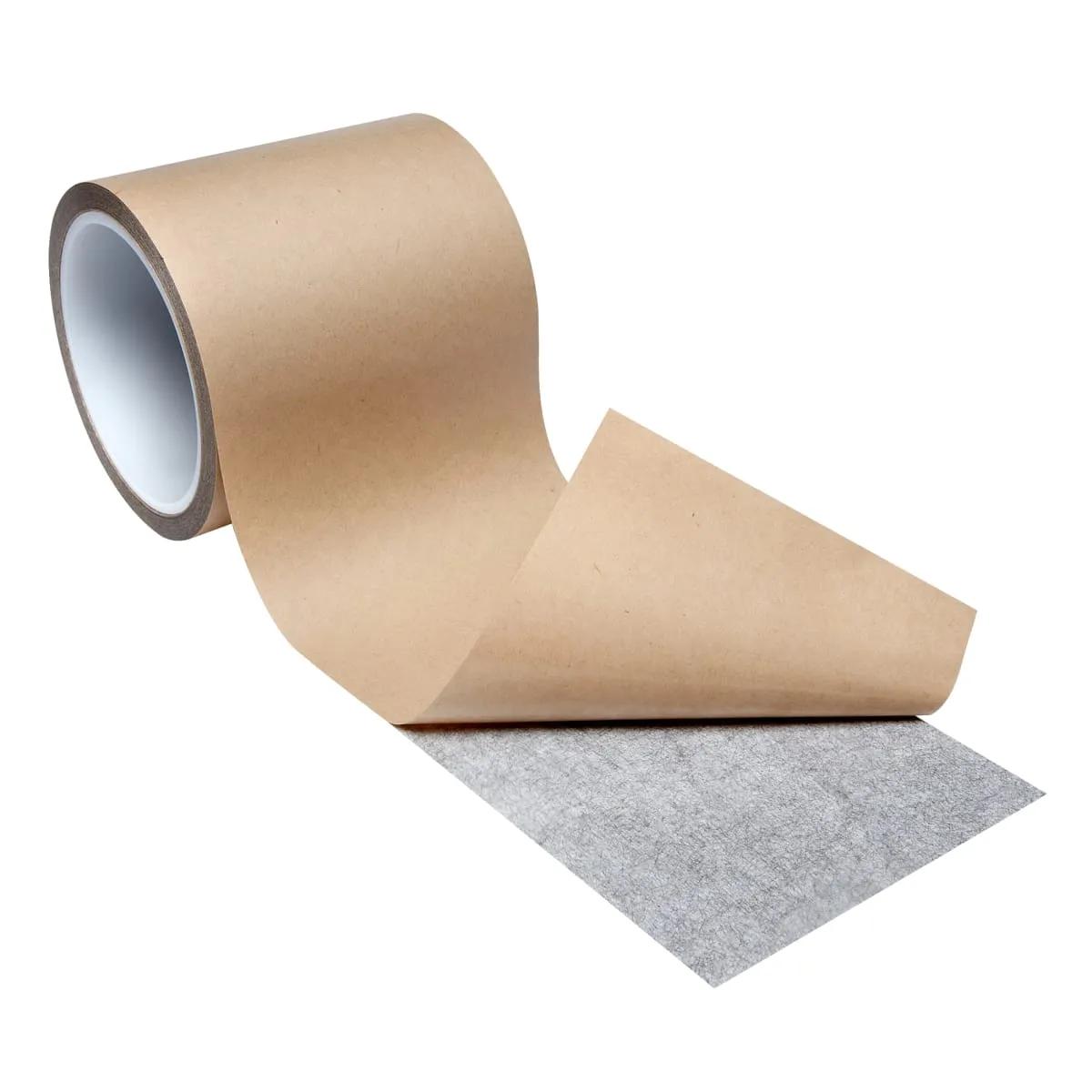

3M XYZ-axis electrically conductive tape 9713 is an isotropically conductive pressure sensitive tape. 3M tape 9713 conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. - The tape consists of a high performance 3M adhesive loaded with conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance. The conductive fibers in 3M tape 9713 also provide improved handling characteristics.
$201.90
- $746.67
Select from the options below
3M XYZ-axis electrically conductive tape 9713 is an isotropically conductive pressure sensitive tape. 3M tape 9713 conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. - The tape consists of a high performance 3M adhesive loaded with conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance. The conductive fibers in 3M tape 9713 also provide improved handling characteristics.
Product Options
Showing 1 out of 1 options
Width: 1 Inch | EIS Part #: 3M9713X1 | $ / Roll Pack: 9/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameElectrically Conductive Tape
Series9713
General Features
Shelf Life24 Months
Storage Temperature70 °C
Design & Construction
Backing MaterialFiber
Applicable MaterialStainless Steel, Aluminum, Copper
Adhesive TypeAcrylic
Physical Properties
Length36 Yard
Thickness2 mil
Width1 Inch
Core Size3 Inch
Environmental Condition
Temperature Rating158 °F
ResistsSolvent
Features
- Thinner adhesive than tape 9712
- Isotropic XYZ-axis electrical connectivity
- Uses nickel plated carbon scrim
- Good contact with both hard and soft surfaces
- Excellent die-cutting and converting capabilities
- Can be applied in strips or die-cut to specific shapes and sizes
- For adhesive strength see TDS
Applications
- For Antenna Bonding (with Grounding), Flex Stiffener Bonding (with Grounding), Grounding, Static Dissipation, Flex Bonding (with Grounding), EMI Shielding (with Grounding), Metal to Metal Bonding (with Grounding), Flex Bonding
