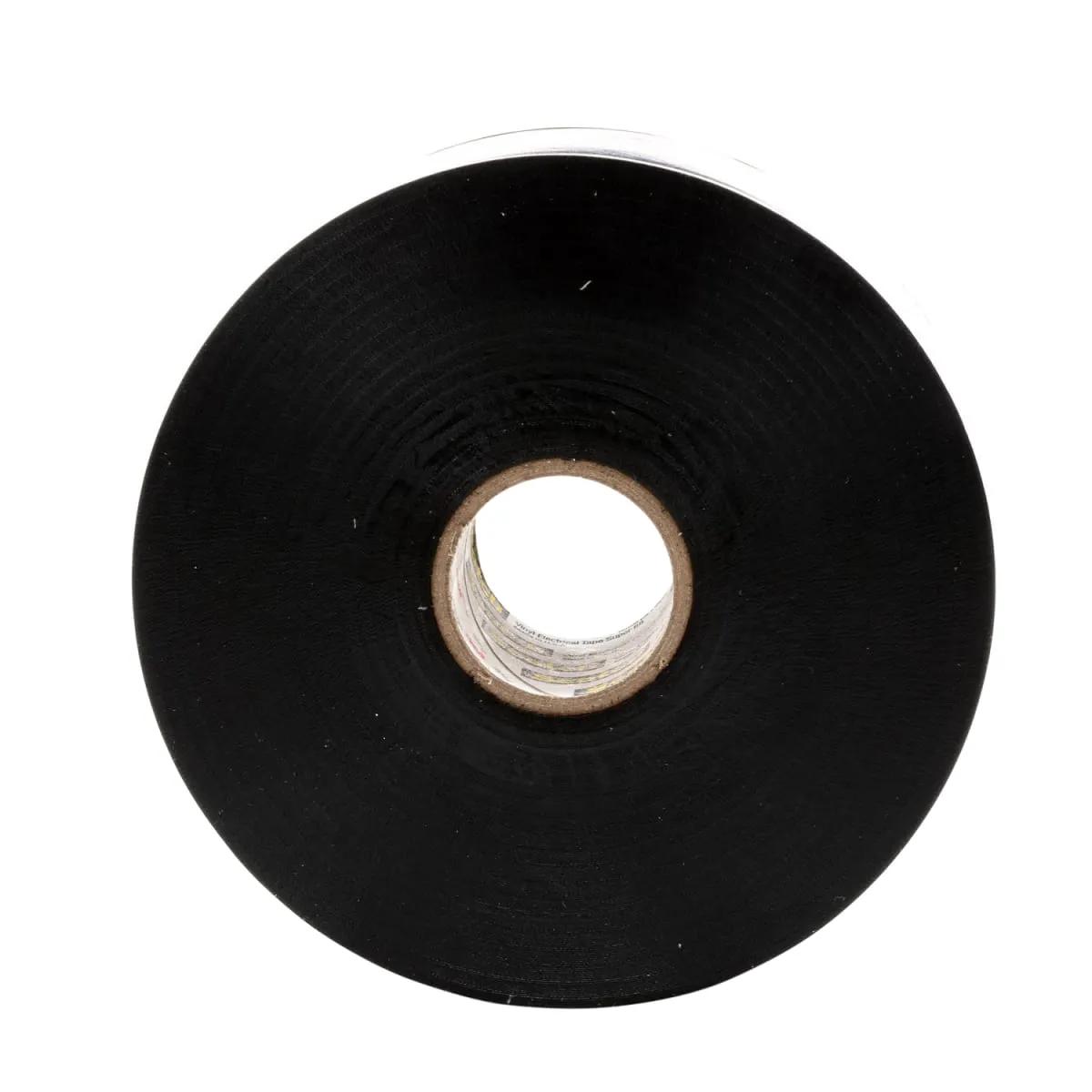

3M Super 88 Scotch® Vinyl Electrical Tape
- MFR #Super 88
- EIS #PH22-Super 88
$15.59 - $58.65
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 36 Yard | 1.5 Inch | $ / Roll more info | |
 | 22 Yard | 0.75 Inch | $ / Roll |
Scotch vinyl electrical tape Super 88 is a premium grade, 8.5 Mil thick, all-weather vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 220 °F. The tape is conformable for cold weather applications down to -18 °C. - Pressure-sensitive rubber-based adhesive. Inhibits corrosion of electrical conductors. It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions.
Features
- Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
- Compatible with solid dielectric cable insulations
- PVC backing
- Provides primary electrical insulation for splices up to 600V
- Excellent resistance to UV rays, abrasion, moisture, alkalies, acids, corrosion and varying weather conditions
- Made of black durable PVC
- Temperature rating of 0 to 220 °F
Applications
- For Protecting Jacket and Electrical Insulation for Splices and Cables
General Information
| Item Name | Electrical Tape |
| Trade Name | Scotch® |
| Series | Super 88 |
General Features
| Shelf Life | 60 Months |
| Storage Temperature | 50 to 80 °F |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Vinyl |
| Color | Black |
Performance Details
| Adhesive Strength | 28 oz/Inch |
| Breaking Strength | 20 lb/Inch |
| Flame Retardant | Yes |
Electrical Properties
| Dielectric Strength | 1000 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 250% |
| Width | - |
| Length | 22.0 |
| Thickness | 8.5 Mil |
Environmental Condition
| Resists | UV, Abrasion, Moisture, Alkalis, Acid, Corrosion |
| Temperature Rating | 220 °F |
