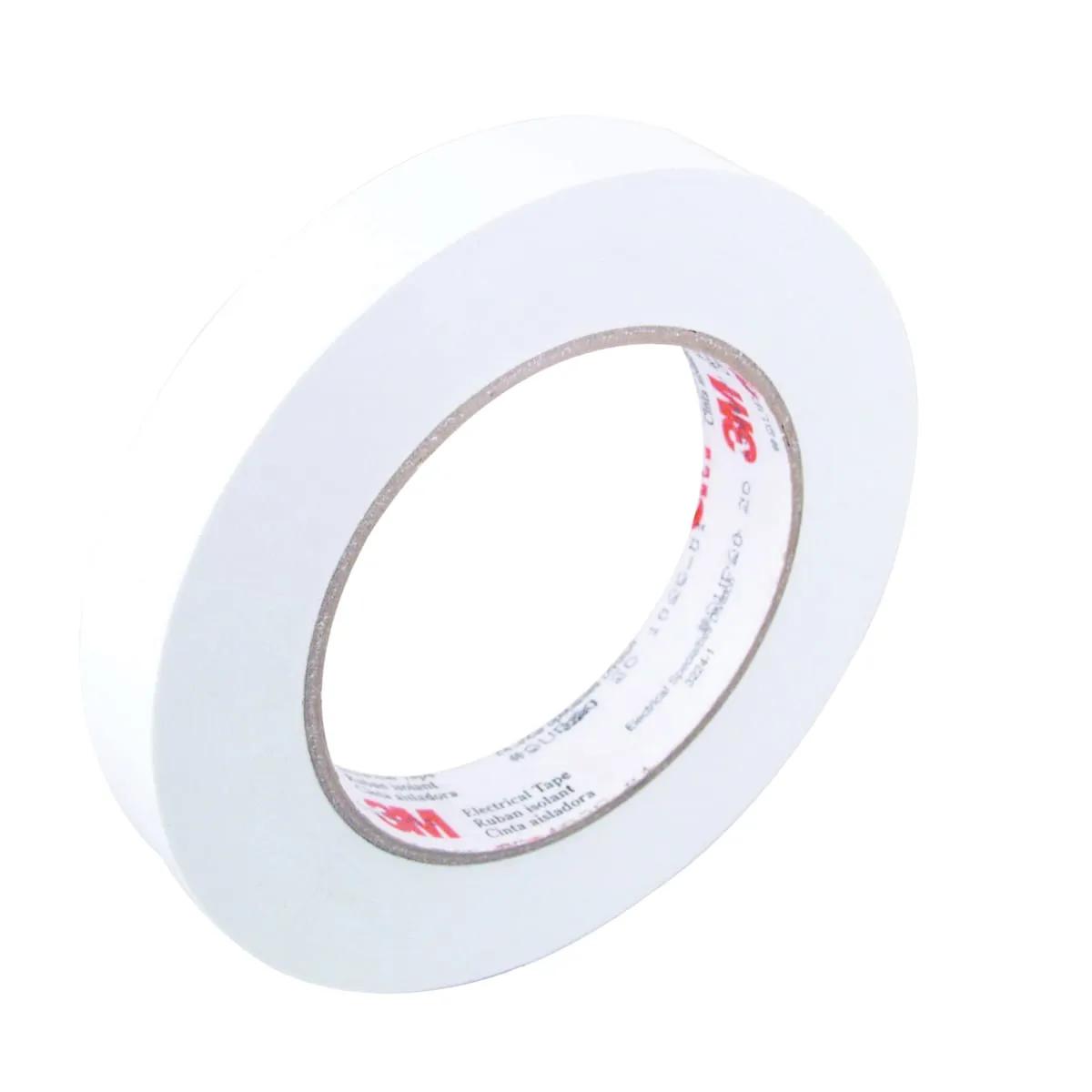

3M Super 20 Epoxy Printable Electrical Tape
- MFR #:Super 20
- EIS #:PH22-Super 20
- MFR #:Super 20
- EIS #:PH22-Super 20
3M epoxy film electrical tape Super 20 is a 5 Mil total thickness, high dielectric, flame retardant tape. The tape has an acrylic, pressure sensitive adhesive that has resistance to heat, oxidation, solvent and oils. The tape shall perform at a temperature of 311 °F without loss of physical or electrical properties. - The tape is puncture resistant and has excellent electrical and handling properties. Tape Super 20 is tough, flexible, conformable and resistant to solder damage. The acrylic pressure sensitive adhesive offers solvent resistance without a thermosetting bake cycle.
$21.03
- $275.47
Select from the options below
3M epoxy film electrical tape Super 20 is a 5 Mil total thickness, high dielectric, flame retardant tape. The tape has an acrylic, pressure sensitive adhesive that has resistance to heat, oxidation, solvent and oils. The tape shall perform at a temperature of 311 °F without loss of physical or electrical properties. - The tape is puncture resistant and has excellent electrical and handling properties. Tape Super 20 is tough, flexible, conformable and resistant to solder damage. The acrylic pressure sensitive adhesive offers solvent resistance without a thermosetting bake cycle.
Product Options
Showing 6 out of 6 options
 | Width: 2 Inch | EIS Part #: 3M20SUPX2 | $ / Roll | |
| Width: 1.5 Inch | EIS Part #: 3M20SUPX1.5 | $ / Roll Pack: 36/Case | |
 | Width: 1 Inch | EIS Part #: 3M20SUPX1 | $ / Roll Pack: 36/Case | |
| Width: 0.875 Inch | EIS Part #: 3M20SUPX.875 | $ / Roll | |
 | Width: 0.75 Inch | EIS Part #: 3M20SUPX.75 | $ / Roll Pack: 48 Roll/Case | |
| Width: 0.5 Inch | EIS Part #: 3M20SUPX.5 | $ / Roll Pack: 72/Case |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
SeriesSuper 20
General Features
TypePrintable
Shelf Life60 Months
Storage Temperature21 °C
Design & Construction
Adhesive TypeAcrylic
Backing MaterialEpoxy Film
ColorWhite
Performance Details
Adhesive Strength30 oz/Inch
Breaking Strength45 lb/Inch
Flame RetardantYes
Tensile Strength45 lb/Inch
Electrical Properties
Dielectric Strength8000 V
Physical Properties
Core Size3 Inch
Elongation120%
Width-
Length60 Yard
Thickness5 Mil
Environmental Condition
ResistsHeat, Oxidation, Solvent, Oil
Temperature Rating155 °C
Features
- Tape is tough, conformable and resistant to solder damage
- Use as coil cover, anchor, harnessing, banding and as core, layer and crossover insulation
- Thicker, double-sided epoxy for higher temperature and dielectric
- The adhesive coating shall be smooth and uniform and be free of lumps and bare spots
- There shall be no separator between adjacent layers of the roll
- Temperature rating of 0 to 155 °C
Applications
- For Wrapping Relays, Coils, Transformers, Bobbin-Wound Sub-Fractional Horsepower Shaded-Pole Motors and Stick-Wound Coils, also for Holding in Fractional Horsepower Motors, Arbor-Wound Coils and Wire Harnesses
