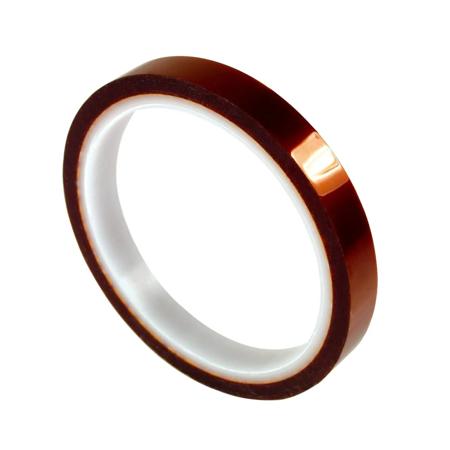

The image shown is representative of the product family and may not specifically be the individual item.
0

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film

  • MFR #92
  • EIS #PH22-92
$10.35 - $313.88
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).


3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

General Information

Item NameElectrical Tape
Trade Name3M

Series92

General Features

TypePrintable
StandardsRoHS 2011/65/EU, UL 510, UL Recognized
Shelf Life60 Months
Storage Temperature10 to 27 °C

Design & Construction

Adhesive TypeThermosetting Silicone
Applicable MaterialSteel
Backing MaterialPolyimide
ColorAmber
ShapeRoll

Performance Details

Adhesive Strength25 oz/Inch
Breaking Strength30 lb/Inch
Flame RetardantYes
Tensile Strength30 lb/Inch

Electrical Properties

Dielectric Strength7500 V

Physical Properties

Core Size3 Inch
Width-
Elongation55%
Length36 Yard
Thickness3 mil

Environmental Condition

ResistsPuncture, Solvent
Temperature Rating180 °C
