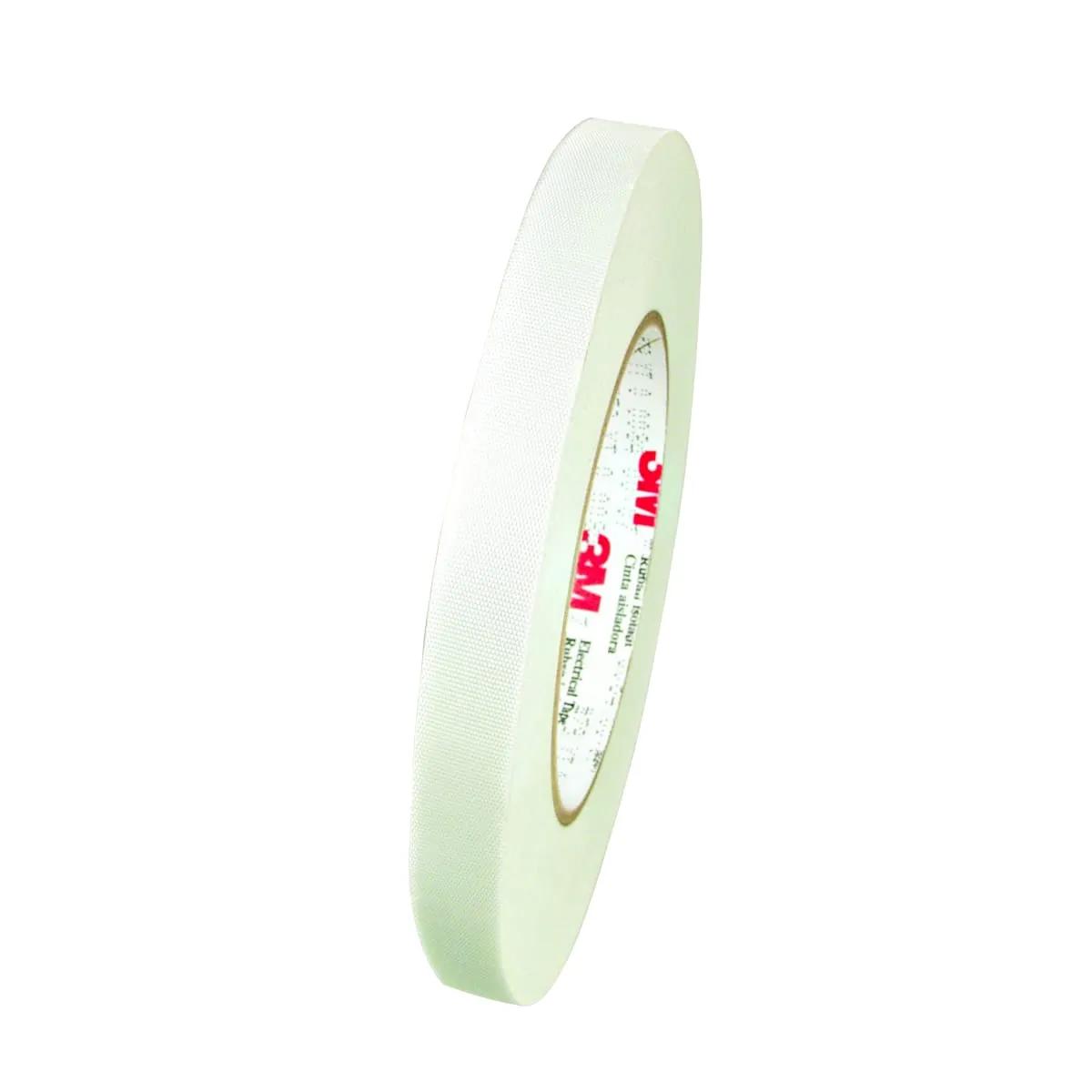

3M 90 Paper Core Glass Electrical Tape
- MFR #90
- EIS #PH22-90
$17.27 - $45.53
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.25 Inch | $ / Roll Pack: 1 Roll/Carton, 144 Roll/Case | |
| 0.5 Inch | $ / Roll Pack: 1 Roll/Carton, 72 Roll/Case | |
| 0.75 Inch | $ / Roll Pack: 1 Roll/Carton, 48 Roll/Case more info |
3M 90 electrical tape is a white glass cloth coated with a rubber, thermosetting adhesive. The glass cloth has excellent high temperature resistance, tensile strength and offers superior absorption of electrical insulating resins and varnishes. - The tape also exhibits resistance to raveling and fraying which facilitates automated application and improves aesthetics. Woven glass cloth tape coated with a rubber, thermosetting adhesive.
Features
- Saturated for a stiffer backing offers high mechanical strength and high temperature resistance
- Works well with electrical insulating resins and varnishes
- Well suited for stick and bobbin-wound coils and transformers as well as end turns and connections in motors
- Conformable
- Temperature rating of 32 to 311 °F
Applications
- For Banding, Anchoring and Insulating and Terminal Strips, Insulation Paper, End Turns and Connections in Motors and Transformers
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 90 |
General Features
| Type | Paper Core |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Backing Material | Glass Cloth |
| Color | White |
Performance Details
| Adhesive Strength | 50 oz/Inch |
| Breaking Strength | 175 lb/Inch |
Electrical Properties
| Dielectric Strength | 3000 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Width | - |
| Length | 60 Yard |
| Thickness | 7 mil |
Environmental Condition
| Resists | Ravel/Fray |
| Temperature Rating | 32 °F |
