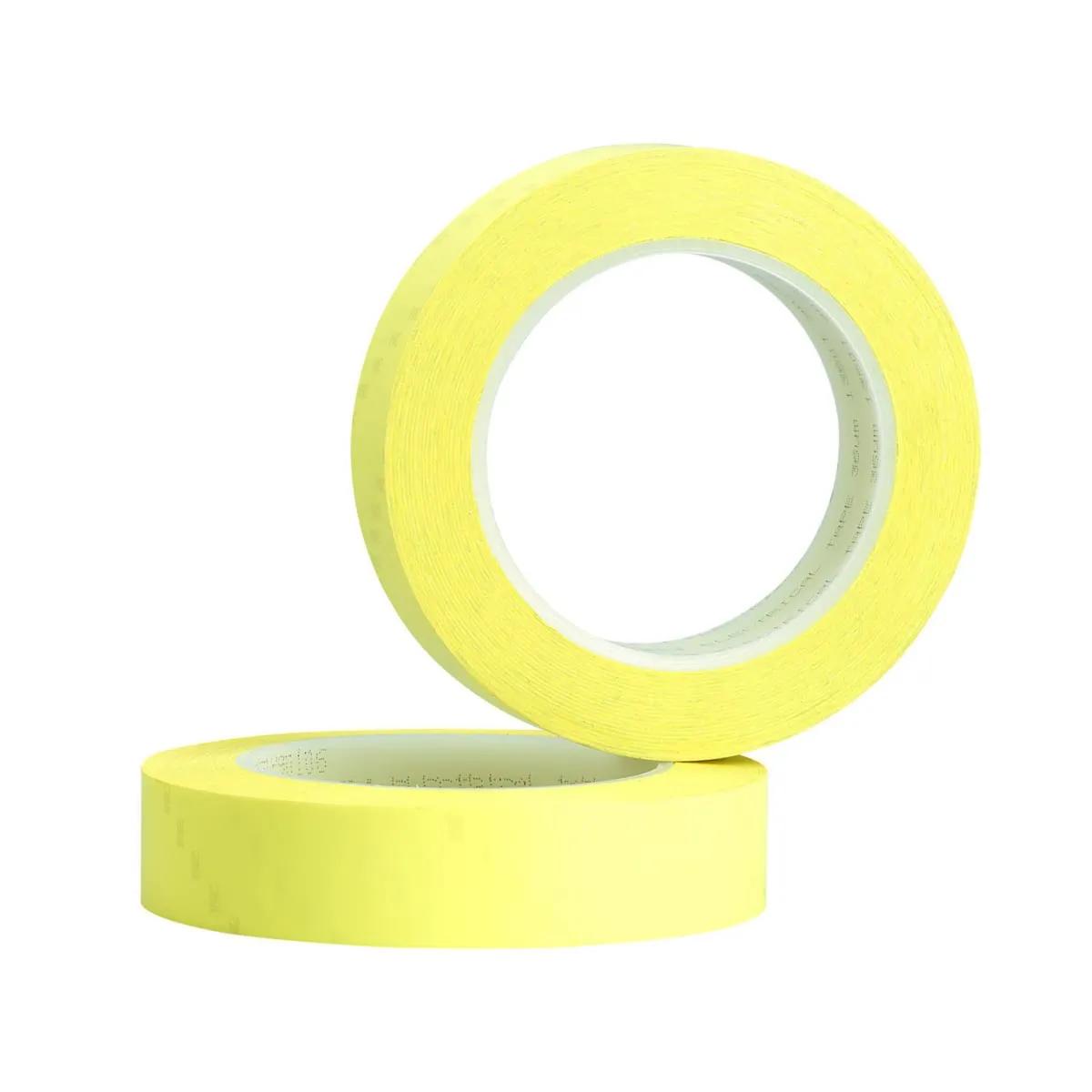

3M 57 Polyester Electrical Tape

The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…

MFR #:57

EIS #:PH22-57

MFR #:57

EIS #:PH22-57

0
0
3M 57 electrical tape is a 2 Mil transparent polyester film with rubber thermosetting adhesive. Rated for use up to 130 °C, it withstands higher temperature conditions than tapes with acetate film backing. - 3M polyester film electrical tape 57 is specified for insulating applications requiring a thin, durable tape with high dielectric strength, such as for wrapping coils and capacitors and holding applications.
$12.47
 - $47.85
Select from the options below
0
0
3M 57 electrical tape is a 2 Mil transparent polyester film with rubber thermosetting adhesive. Rated for use up to 130 °C, it withstands higher temperature conditions than tapes with acetate film backing. - 3M polyester film electrical tape 57 is specified for insulating applications requiring a thin, durable tape with high dielectric strength, such as for wrapping coils and capacitors and holding applications.

Product Options

Showing 7 out of 7 options
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
1 Inch
EIS Part #:
3M57X1
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.875 Inch
EIS Part #:
3M57X.875
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.75 Inch
EIS Part #:
3M57X.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.5 Inch
EIS Part #:
3M57X.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.421 Inch
EIS Part #:
3M57X.421
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.375 Inch
EIS Part #:
3M57X.375
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item. 3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withst…
Width:
0.25 Inch
EIS Part #:
3M57X.25
$ / Roll

Attributes

General Information
Item NameElectrical Tape
Trade Name3M
Series57
Design & Construction
Backing MaterialPolyester
ColorYellow
Adhesive TypeThermosetting Rubber
Performance Details
Adhesive Strength60 oz/Inch
Breaking Strength50 lb/Inch
Electrical Properties
Dielectric Strength7000 V
Physical Properties
Length72 Yard
Thickness3.3 mil
Width-
Core Size3 Inch
Elongation110%
Environmental Condition
Temperature Rating130 °C
ResistsChemical, Solvent, Moisture, Abrasion
