3M 55 Polyester/Mat Electrical Tape

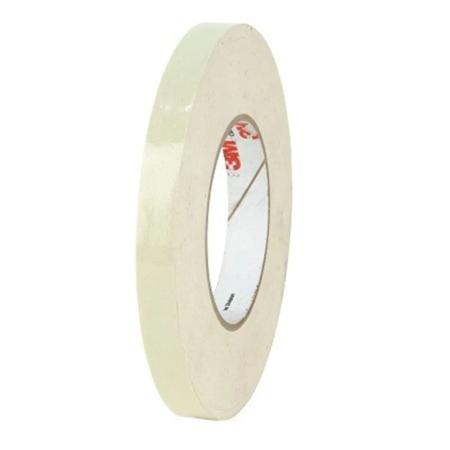

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:55

EIS #:PH22-55

MFR #:55

EIS #:PH22-55

0
0
3M electrical tape 55, 0.0075 Inch thick tape is a polyester web reinforced polyester film coated with a rubber pressure sensitive adhesive. On a 3 Inch paper core, this edge tear and puncture-resistant tape is tough and conformable with excellent electrical properties. - 3M 55 tape is a polyester film/mat composite. Can be used as a coil cover. For used in end turns, lead pad, core layer and crossover insulation.
$10.70
 - $144.13
Select from the options below
0
0
3M electrical tape 55, 0.0075 Inch thick tape is a polyester web reinforced polyester film coated with a rubber pressure sensitive adhesive. On a 3 Inch paper core, this edge tear and puncture-resistant tape is tough and conformable with excellent electrical properties. - 3M 55 tape is a polyester film/mat composite. Can be used as a coil cover. For used in end turns, lead pad, core layer and crossover insulation.

Product Options

Showing 8 out of 9 options
The image shown is representative of the product family and may not specifically be the individual item.
Width
2.5 Inch
EIS Part #
3M55X2.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
2 Inch
EIS Part #
3M55X2
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.5 Inch
EIS Part #
3M55X1.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.375 Inch
EIS Part #
3M55X1.375
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1.187 Inch
EIS Part #
3M55X1.187
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
1 Inch
EIS Part #
3M55X1
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.875 Inch
EIS Part #
3M55X.875
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.375 Inch
EIS Part #
3M55X.375
$ / Roll

Attributes

General Information
Item NameElectrical Tape
Trade Name3M
Series55
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeThermosetting Rubber
Backing MaterialPolyester/Mat
ColorWhite
Performance Details
Adhesive Strength80 oz/Inch
Breaking Strength35 lb/Inch
Electrical Properties
Dielectric Strength6000 V
Physical Properties
Core Size3 Inch
Elongation30%
Length72 Yard
Thickness7.5 mil
Width-
Environmental Condition
ResistsPuncture, Abrasion
Temperature Rating130 °C
