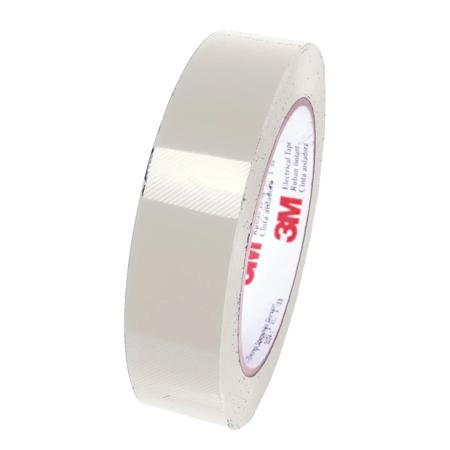

3M 5 Polyester Electrical Tape
- MFR #5
- EIS #PH22-5
$7.95 - $74.13
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 72 Yard | 0.25 Inch | $ / Roll | |
 | 72 Yard | 0.5 Inch | $ / Roll | |
| 72 Yard | 0.375 Inch | $ / Roll | |
| 72 Yard | 0.562 Inch | $ / Roll | |
| 72 Yard | 0.625 Inch | $ / Roll | |
| 72 Yard | 0.687 Inch | $ / Roll |
3M polyester film electrical tape 5 is a general purpose polyester tape with acrylic adhesive. Designed for insulating applications requiring a thin, durable tape with high dielectric strength. It can withstand higher-temperature conditions than tapes with acetate cloth backings. - A single-coated tape, it features an adhesive system that offers resistance to most common cleaning solvents. Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut through and abrasion.
Applications
- For Insulating Applications
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 5 |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester |
| Color | Translucent |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 25 lb/Inch |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 100% |
| Length | 72.0 |
| Thickness | 2.5 mil |
| Width | - |
Environmental Condition
| Resists | Chemical, Solvent, Moisture, Abrasion |
| Temperature Rating | 130 °C |
Documents
No Documents Found
