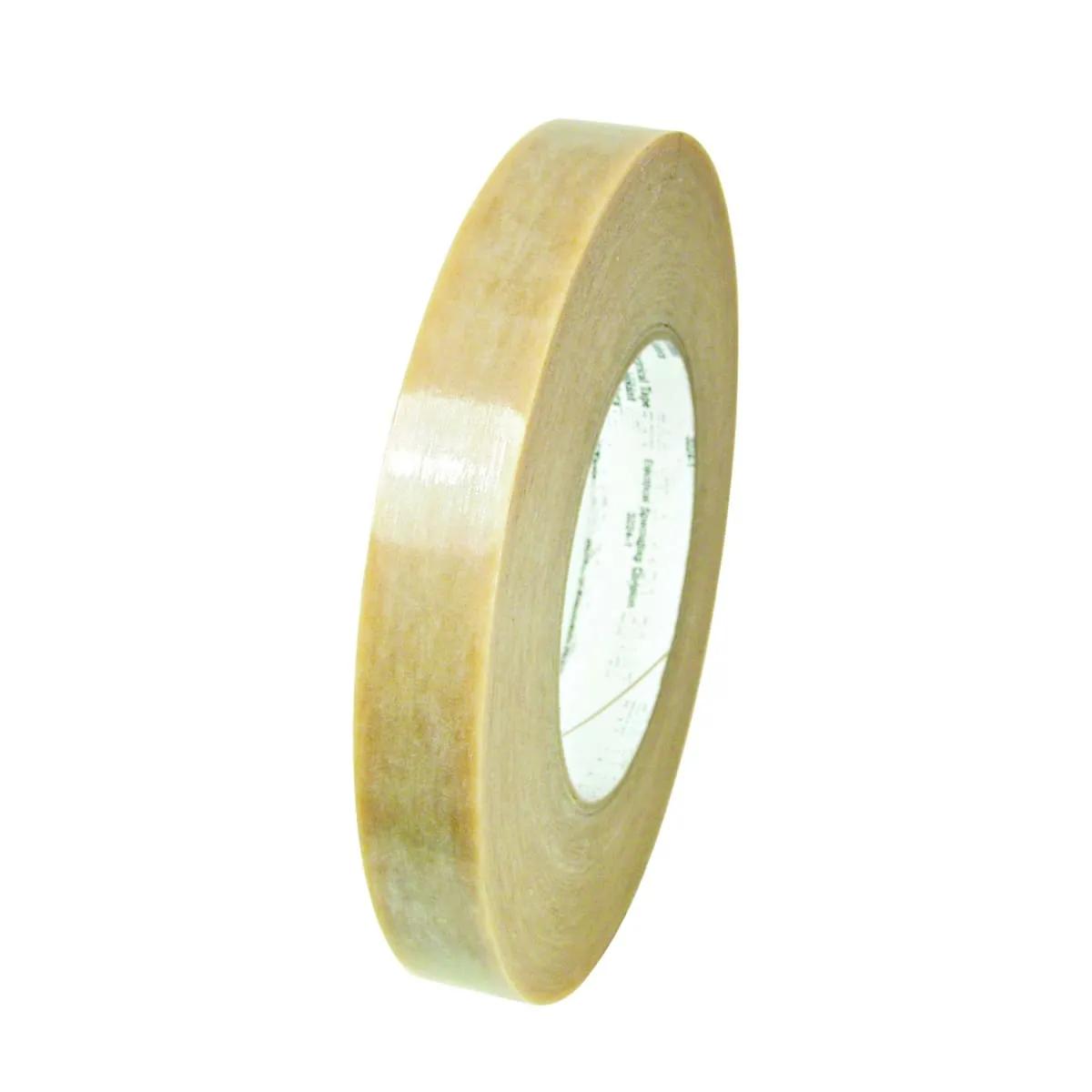

3M 44 Polyester/Web Film Electrical Tape

3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
  • MFR #:44
  • EIS #:PH22-44
  • MFR #:44
  • EIS #:PH22-44
0
0
3M electrical tape 44 is excellent for economical, general purpose insulation, anchoring and banding in motors and transformers. It combines the high dielectric strength and edge tear resistance of polyester film and nonwoven polyester mat for a conformable product with great puncture resistant and electrical properties. - 3M electrical tape 44 is a low-halogen, combination polyester film/polyester web film coated with a rubber thermosetting pressure sensitive adhesive. This UL recognized conformable tape is puncture resistant with excellent electrical properties.
$5.45
 - $181.03
Select from the options below
0
0
3M electrical tape 44 is excellent for economical, general purpose insulation, anchoring and banding in motors and transformers. It combines the high dielectric strength and edge tear resistance of polyester film and nonwoven polyester mat for a conformable product with great puncture resistant and electrical properties. - 3M electrical tape 44 is a low-halogen, combination polyester film/polyester web film coated with a rubber thermosetting pressure sensitive adhesive. This UL recognized conformable tape is puncture resistant with excellent electrical properties.

Product Options

Showing 8 out of 37 options
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yards
Width:
4 Inch
EIS Part #:
3M44X4
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yards
Width:
3.5 Inch
EIS Part #:
3M44X3.5
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
2.5 Inch
EIS Part #:
3M44X2.5
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
2.25 Inch
EIS Part #:
3M44X2.25
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
2 Inch
EIS Part #:
3M44X2
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
1.875 Inch
EIS Part #:
3M44X1.875
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
1.75 Inch
EIS Part #:
3M44X1.75
$ / Roll
3M-3M44X.25;3M-56;PH22-44;PH22-46;PH22-5;PH22-54;PH22-56;Q3M44X.25;QPH22-44-Images
Length:
90 Yard
Width:
1.625 Inch
EIS Part #:
3M44X1.625
$ / Roll

Attributes

General Information

Item NameElectrical Tape
Trade Name3M

Series44

General Features

Shelf Life60 Months
TypePaper Core

Design & Construction

Adhesive TypeThermosetting Rubber
Backing MaterialPolyester/Web Film
ColorTan

Performance Details

Adhesive Strength65 oz/Inch
Breaking Strength40 lb/Inch

Electrical Properties

Dielectric Strength5500 V

Physical Properties

Core Size3 Inch
Elongation50%
Length90.0
Thickness5.5 Mil
Width-

Environmental Condition

ResistsPuncture
Temperature Rating130 °C
