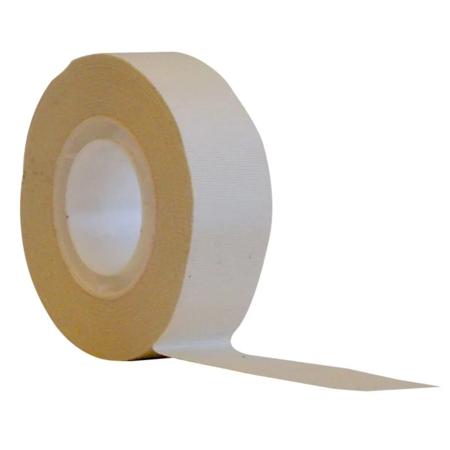

3M 28 Printable Acetate Electrical Tape
- MFR #:28
- EIS #:PH22-28
- MFR #:28
- EIS #:PH22-28
3M 28 is an acetate cloth electrical tape with a rubber thermosetting adhesive. This tape shall be coated on one side with pressure sensitive adhesive, which shall not require heat, moisture or other preparation prior to or subsequent to application. - The adhesive coating shall be smooth and uniform and be free of lumps and bare spots. There shall be no separator between adjacent layers of the roll. 3M electrical tape 28 shall perform at a temperature of -40 to 221 °F without loss of physical or electrical properties.
$8.34
- $61.07
Select from the options below
3M 28 is an acetate cloth electrical tape with a rubber thermosetting adhesive. This tape shall be coated on one side with pressure sensitive adhesive, which shall not require heat, moisture or other preparation prior to or subsequent to application. - The adhesive coating shall be smooth and uniform and be free of lumps and bare spots. There shall be no separator between adjacent layers of the roll. 3M electrical tape 28 shall perform at a temperature of -40 to 221 °F without loss of physical or electrical properties.
Product Options
Showing 8 out of 8 options
 | Width: 1 Inch | EIS Part #: 3M28X1 | $ / Roll Pack: 1 Roll/Case | |
 | Width: 0.75 Inch | EIS Part #: 3M28X.75 | $ / Roll Pack: 1 Roll/Case | |
| Width: 0.625 Inch | EIS Part #: 3M28X.625 | $ / Roll Pack: 1 Roll/Case | |
| Width: 0.5 Inch | EIS Part #: 3M28X.5 | $ / Roll Pack: 1 Roll/Case | |
| Width: 0.375 Inch | EIS Part #: 3M28X.375 | $ / Roll Pack: 1 Roll/Case | |
 | Width: 0.25 Inch | EIS Part #: 3M28X.25 | $ / Roll Pack: 1 Roll/Case | |
| Width: 0.1875 Inch | EIS Part #: 3M28X.187 | $ / Roll | |
| Width: 0.125 Inch | EIS Part #: 3M28X.125 | $ / Roll Pack: 1 Roll/Case |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series28
General Features
TypePrintable
Shelf Life60 Months
Storage Temperature10 to 27 °C
Design & Construction
Adhesive TypeThermosetting Rubber
Applicable MaterialThermosetting Rubber
Backing MaterialAcetate
ColorWhite
Performance Details
Adhesive Strength40 oz/Inch
Breaking Strength35 lb/Inch
Electrical Properties
Dielectric Strength2500 V
Physical Properties
Core Size3 Inch
Elongation10%
Width-
Length72 Yard
Thickness8 Mil
Environmental Condition
Temperature Rating105 °C
Features
- Conformable
- Printable
- Easy hand tear
- Excellent absorption of electrical insulating resins and varnishes
- Resin and varnish absorptive black acetate cloth backing
- Acetate cloth tape offering excellent conformability in coil wrapping applications up to 105 °C
- Aesthetically pleasing
- Paper core
- Temperature rating of 0 to 105 °C
Applications
- For Coil Cover, Wire Harness Bundle
