3M 27 Scotch® Paper Core Premium Glass Electrical Tape
- MFR #27
- EIS #PH22-27
$8.17 - $121.40
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 60 Yard | 0.625 Inch | $ / Roll | |
| 60 Yard | 0.875 Inch | $ / Roll | |
 | 22 Yard | 0.75 Inch | $ / Roll Pack: 1 Roll/Carton, 50 Roll/Case | |
| 60 Yard | 1 Inch | $ / Roll Pack: 1 Roll/Carton, 9 Roll/Case | |
| 60 Yard | 0.75 Inch | $ / Roll Pack: 1 Roll/Carton, 12 Roll/Case | |
| 60 Yard | 1.25 Inch | $ / Roll |

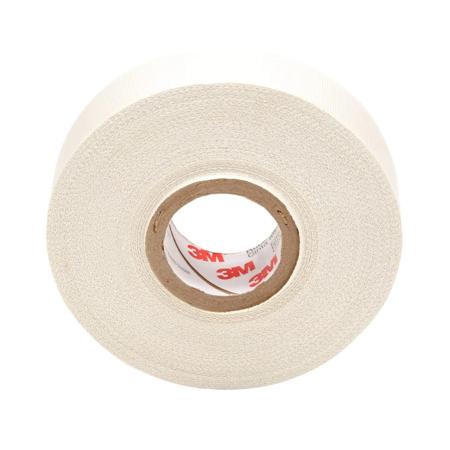

3M glass cloth electrical tape 27 is a 7 Mil woven insulating glass cloth tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600V dry applications requiring high mechanical strength and resistance to high temperatures. - The glass cloth is specially treated and prepared to provide corrosion-free protection. The glass cloth will not shrink, rot or burn, has a high tensile strength and is printable.
Features
- Woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
- Designed to operate in 600V dry applications requiring high mechanical strength and resistance to high temperatures
- Adhesive is specially designed and prepared to provide corrosion protection
- Edge tear resistant, conformable and abrasion resistant
- Temperature rating of 32 to 302 °F
Applications
- For Coil Cover, Anchor, Banding and Core, Layer and Crossover Insulation
General Information
| Item Name | Electrical Tape |
| Trade Name | Scotch® |
| Series | 27 |
General Features
| Type | Paper Core, Premium |
| Shelf Life | 60 Months |
| Storage Temperature | 50 to 80 °F |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Backing Material | Glass Cloth |
| Color | White |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Breaking Strength | 150 lb/Inch |
Electrical Properties
| Dielectric Strength | 3000 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Width | - |
| Length | 60.0 |
| Thickness | 7 mil |
Environmental Condition
| Resists | Abrasion, Tear |
| Temperature Rating | 32 °F |
