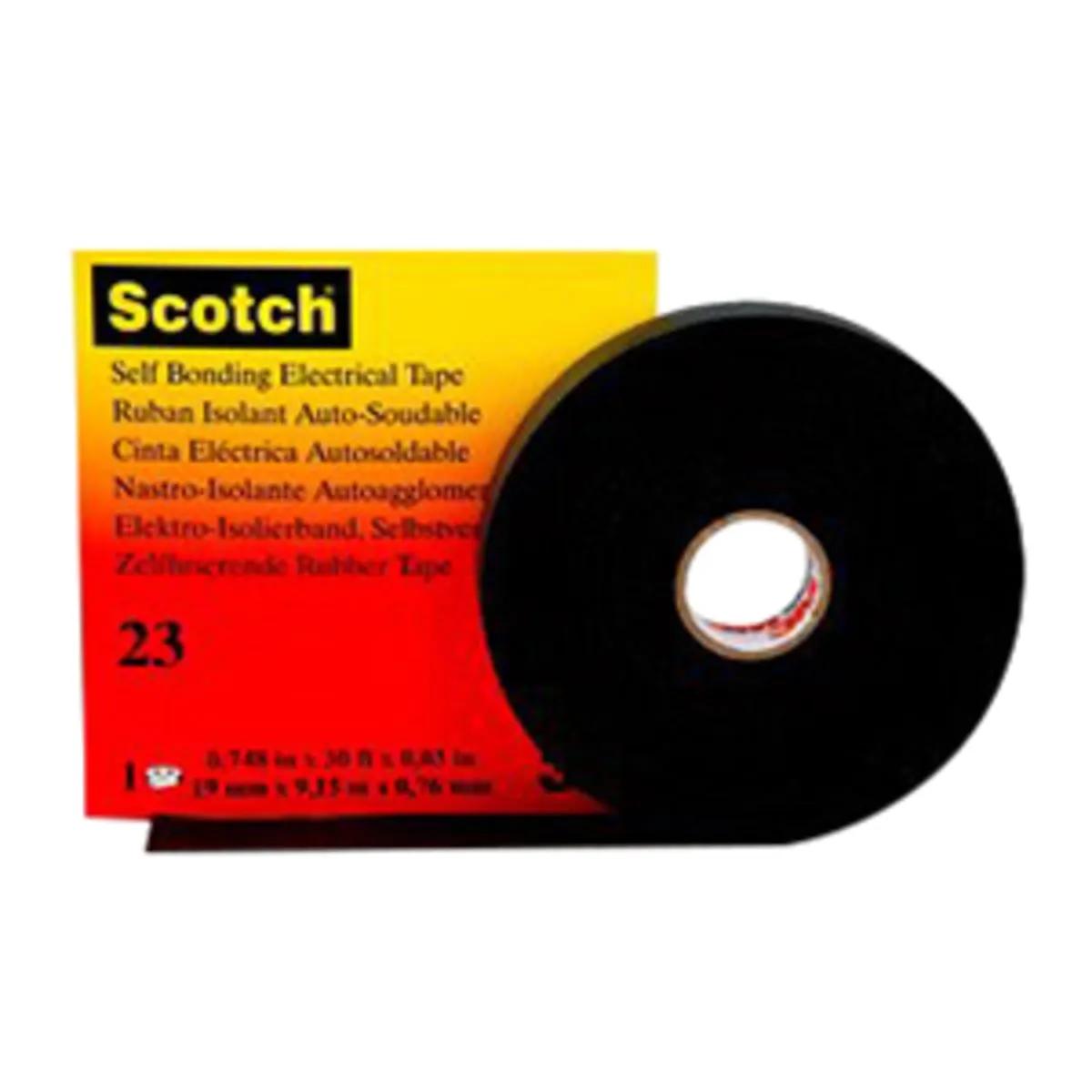

3M 23 Scotch® Ethylene Propylene Rubber Premium Electrical Tape
- MFR #23
- EIS #PH22-23
$53.25 - $95.74
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 1 Inch | $ / Roll more info | |
| 0.75 Inch | $ / Roll more info | |
| 0.5 Inch | $ / Roll more info |
Scotch electrical tape 23 is a highly conformable, self-fusing ethylene propylene rubber based high-insulating voltage tape. It is without halogen, it resists in the UV and ozone and is not vulcanized. It is compatible with all the synthetic insulations cables and with the paper insulations cables with migrant material. The turns of the tape weld together in an homogeneous form after application. - Rubber resin provides excellent adherence to irregular surfaces. Primary electrical insulation for splicing cable from 600V to 69kV on all solid dielectric cables. Based on ethylene propylene rubber. Physical and electrical properties are unaffected by the degree of stretch.
Features
- Self-fusing tape
- Excellent electrical properties
- A special polyester liner which will not stick to the tape upon unwind
Applications
- For Jacketing on High-Voltage Splices and Terminations, Moisture Sealing Electrical Connections, Bus Bar Insulations, End Sealing High-Voltage Cables
General Information
| Item Name | Electrical Tape |
| Trade Name | Scotch® |
| Series | 23 |
General Features
| Type | Premium |
| Shelf Life | 60 Months |
| Storage Temperature | 10 to 27 °C |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Ethylene Propylene Rubber |
| Color | Black |
Performance Details
| Tensile Strength | 8 lb/Inch |
Electrical Properties
| Dielectric Strength | 800 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 1000% |
| Width | - |
| Length | 10 Yard |
| Thickness | 30 mil |
Environmental Condition
| Resists | Split, Crack, Slip, Flag |
| Temperature Rating | 90 °C |
