MFR #:22-3M
EIS #:PH22-22-3M
MFR #:22-3M
EIS #:PH22-22-3M

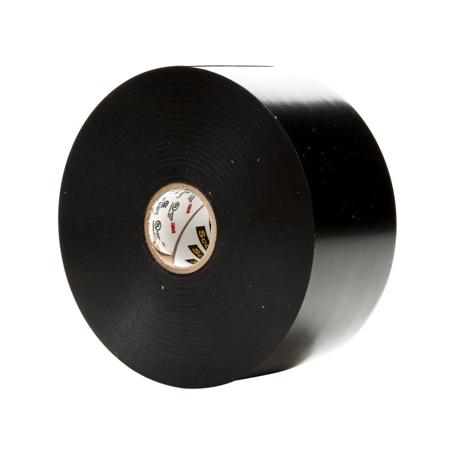

Scotch heavy-duty vinyl electrical tape 22 is a premium grade, 10 Mil thick, vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 80 °C. The tape is conformable for cold weather applications down to 15 °F. - It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions. The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk.
$28.93
- $75.00
Select from the options below
Scotch heavy-duty vinyl electrical tape 22 is a premium grade, 10 Mil thick, vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 80 °C. The tape is conformable for cold weather applications down to 15 °F. - It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions. The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk.
Product Options
Showing 5 out of 5 options
Width: 3 Inch | EIS Part #: 3M22X3 | $ / Roll | ||
Width: 2 Inch | EIS Part #: 3M22X2 | $ / Roll | ||
Width: 1.5 Inch | EIS Part #: 3M22X1.5 | $ / Roll | ||
Width: 1 Inch | EIS Part #: 3M22X1 | $ / Roll | ||
Width: 0.75 Inch | EIS Part #: 3M22X.75 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade NameScotch®
Series22-3M
General Features
Shelf Life60 Months
TypeHeavy Duty, Premium Grade
Design & Construction
Adhesive TypeRubber
Backing MaterialVinyl
ColorBlack
Performance Details
Adhesive Strength20 oz/Inch
Breaking Strength20 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength12000 V
Physical Properties
Core Size3 Inch
Elongation200%
Length36 Yard
Thickness10 mil
Environmental Condition
ResistsAbrasion, Moisture, Alkalis, Acid
Temperature Rating15 °F
Features
- Thicker for quicker build-up and extra abrasion resistance
- Provides moisture-resistant electrical and mechanical protection
- Temperature rating of 15 to 176 °F
Applications
- For Insulating Applications
