MFR #:16
EIS #:PH22-16
MFR #:16
EIS #:PH22-16

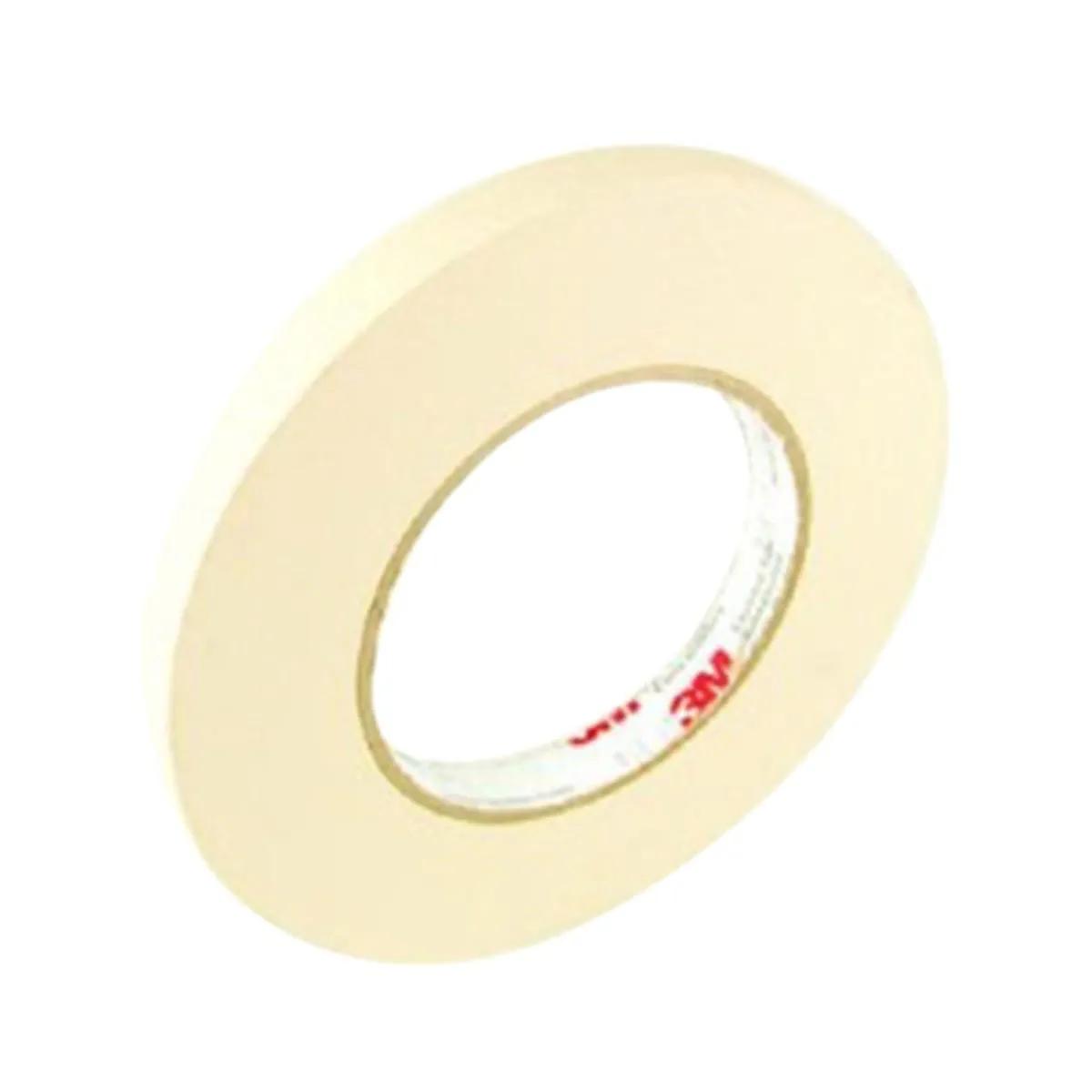

3M crepe paper electrical tape 16 is conformable and is used as a coil cover and an end-turn tape. 3 Inch paper core. Provides good cushioning, puncture resistance and toughness. - 3M 16 Series Electrical Tape, 60 Yard Length, Thickness: 9 Mil, Core Size: 3 Inch, Adhesive Type: Pressure Sensitive Thermosetting Rubber, Adhesive Strength: 50 oz/Inch, Crepe Paper Backing, Elongation: 10%, Breaking Strength: 25 lb/Inch, Dielectric Strength: 2500V, Temperature Rating: 105 °C, Resists: Puncture.
$4.76
- $36.60
Select from the options below
3M crepe paper electrical tape 16 is conformable and is used as a coil cover and an end-turn tape. 3 Inch paper core. Provides good cushioning, puncture resistance and toughness. - 3M 16 Series Electrical Tape, 60 Yard Length, Thickness: 9 Mil, Core Size: 3 Inch, Adhesive Type: Pressure Sensitive Thermosetting Rubber, Adhesive Strength: 50 oz/Inch, Crepe Paper Backing, Elongation: 10%, Breaking Strength: 25 lb/Inch, Dielectric Strength: 2500V, Temperature Rating: 105 °C, Resists: Puncture.
Product Options
Showing 6 out of 6 options
Width: 1.25 Inch | Color: Tan | EIS Part #: 3M16X1.25 | $ / Roll | ||
Width: 1.047 Inch | Color: Yellow | EIS Part #: 3M16X1.047 | $ / Roll | ||
Width: 1 Inch | Color: Tan | EIS Part #: 3M16X1 | $ / each | ||
Width: 0.75 Inch | Color: Tan | EIS Part #: 3M16X.75 | $ / each | ||
Width: 0.625 Inch | Color: Tan | EIS Part #: 3M16X.625 | $ / Roll | ||
Width: 0.5 Inch | Color: Tan | EIS Part #: 3M16X.5 | $ / Roll |
- Attributes
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series16
General Features
Shelf Life60 Months
Storage Temperature10 to 27 °C
Design & Construction
Adhesive TypePressure Sensitive Thermosetting Rubber
Backing MaterialCrepe Paper
ColorTan
Performance Details
Adhesive Strength50 oz/Inch
Breaking Strength25 lb/Inch
Electrical Properties
Dielectric Strength2500 V
Physical Properties
Core Size3 Inch
Elongation10%
Length60 Yard
Thickness9 mil
Width-
Environmental Condition
ResistsPuncture
Temperature Rating105 °C
Applications
- For Coil Cover and End-Turn Taping
