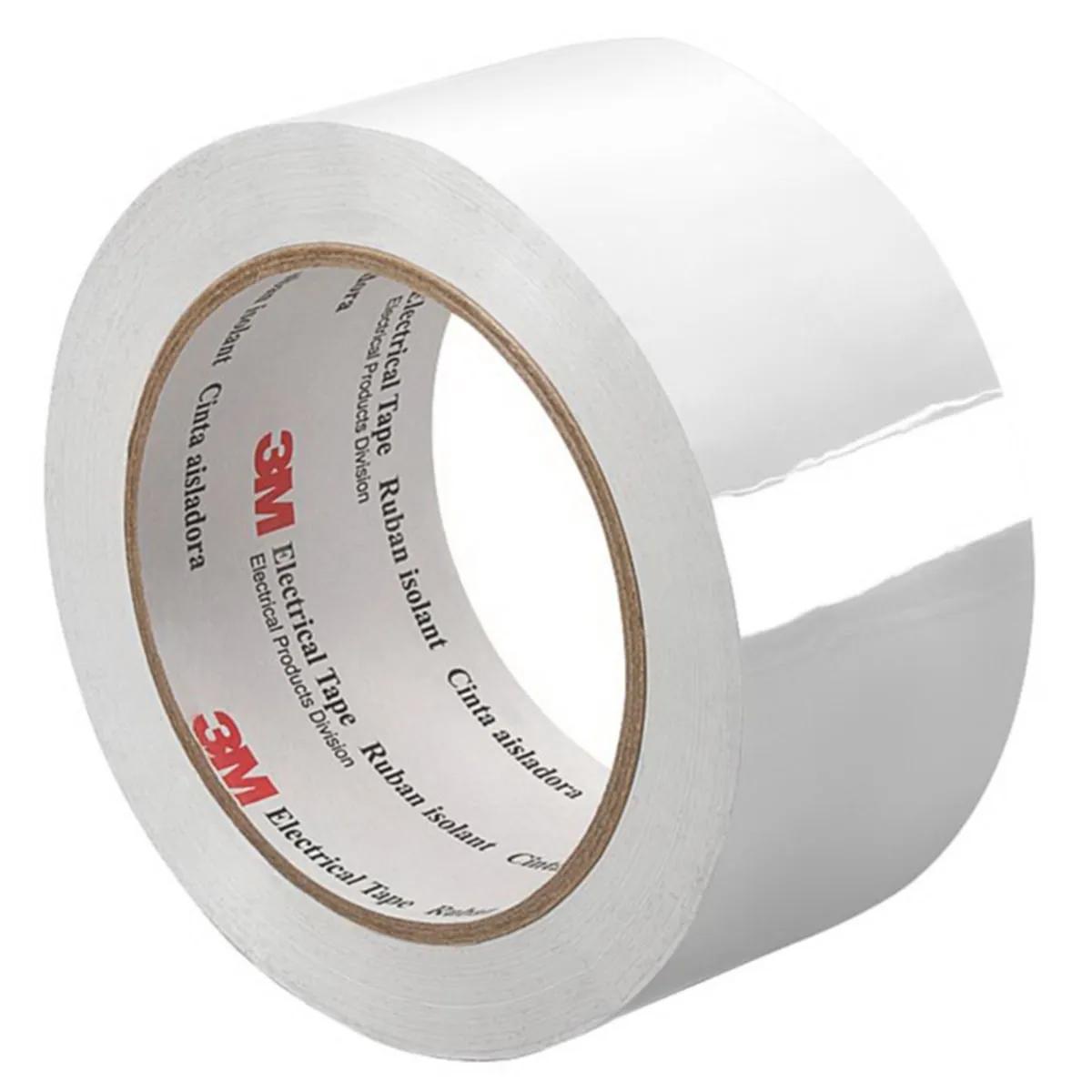

3M 1350F Polyester Electrical Tape
MFR #:1350F
EIS #:PH22-1350F
MFR #:1350F
EIS #:PH22-1350F
3M 1350F tape is an electrical insulating polyester film tape which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. - It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment. Excellent flagging resistance.
$0.02
- $156.09
Select from the options below
3M 1350F tape is an electrical insulating polyester film tape which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. - It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment. Excellent flagging resistance.
Product Options
Showing 8 out of 54 options
Thickness: 2 Mil | Width: 3 Inch | Color: Black | EIS Part #: 3M1350FX3B2 | $ / Roll Pack: 24/Case | ||
Thickness: 2 Mil | Width: 2 Inch | Color: White | EIS Part #: 3M1350FX2W2 | $ / Roll | ||
Thickness: 1 Mil | Width: 2 Inch | Color: White | EIS Part #: 3M1350FX2W1 | $ / Roll Pack: 36/Case | ||
Thickness: 2 Mil | Width: 2.75 Inch | Color: Yellow | EIS Part #: 3M1350FX2.75Y2 | $ / Roll | ||
Thickness: 2 Mil | Width: 2.5 Inch | Color: White | EIS Part #: 3M1350FX2.75W2 | $ / Roll | ||
Thickness: 1 Mil | Width: 2.5 Inch | Color: White | EIS Part #: 3M1350FX2.5W1 | $ / Roll | ||
Thickness: 2 Mil | Width: 2.5 Inch | Color: Black | EIS Part #: 3M1350FX2.5B2 | $ / Roll Pack: 24/Case | ||
Thickness: 2 Mil | Width: 2.25 Inch | Color: White | EIS Part #: 3M1350FX2.44W2 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series1350F
Design & Construction
Adhesive TypeAcrylic
Backing MaterialPolyester
ColorWhite
Performance Details
Adhesive Strength30 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength5500 V
Physical Properties
Core Size3 Inch
Elongation100%
Length72.0
Width-
Environmental Condition
ResistsFlagging, Solvent
Temperature Rating130 °C
Features
- Printable
- Solvent resistant without thermosetting
- Excellent shelf life
Applications
- For Wrapping Coils, Capacitors, Wire Harnesses, Transformers, Shaded Pole Motors and Fractional Horsepower Motors
