3M 1339 Polyester/Glass Filament Electrical Tape
- MFR #1339
- EIS #PH22-1339
$6.92 - $94.23
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.5 Inch | $ / Roll | |
| 0.375 Inch | $ / Roll | |
| 0.125 Inch | $ / Roll | |
| 0.25 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll | |
| 1 Inch | $ / Roll |

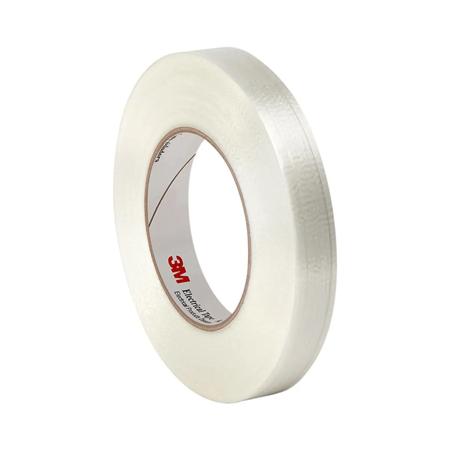

3M electrical tape 1339 is a polyester film/glass filament tape coated with a pressure sensitive acrylic adhesive system. The polyester film/glass backing has excellent physical and electrical characteristics. The back side of the tape has a special coating which allows for an even, controlled unwind. - It also promotes permanent anchoring in application. Typical applications for 1339 include lead anchoring, banding of coils, lead tape anchoring and other uses where tensile strength is needed.
Features
- Excellent conformability
- Low stretch, high tensile and edge-tear resistant's
- High dielectric strength
- Conformable, solvent resistant, high temperature filament tape with acrylic adhesive
- Temperature rating of 32 to 266 °F
Applications
- For Anchoring Lead Wires to Banding Coils and End-Turn Taping
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1339 |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester/Glass Filament |
| Color | Clear |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 275 lb/Inch |
| Flame Retardant | No |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Length | 60 Yard |
| Thickness | 6.5 mil |
Environmental Condition
| Resists | Solvent, Tear |
| Temperature Rating | 32 °F |
