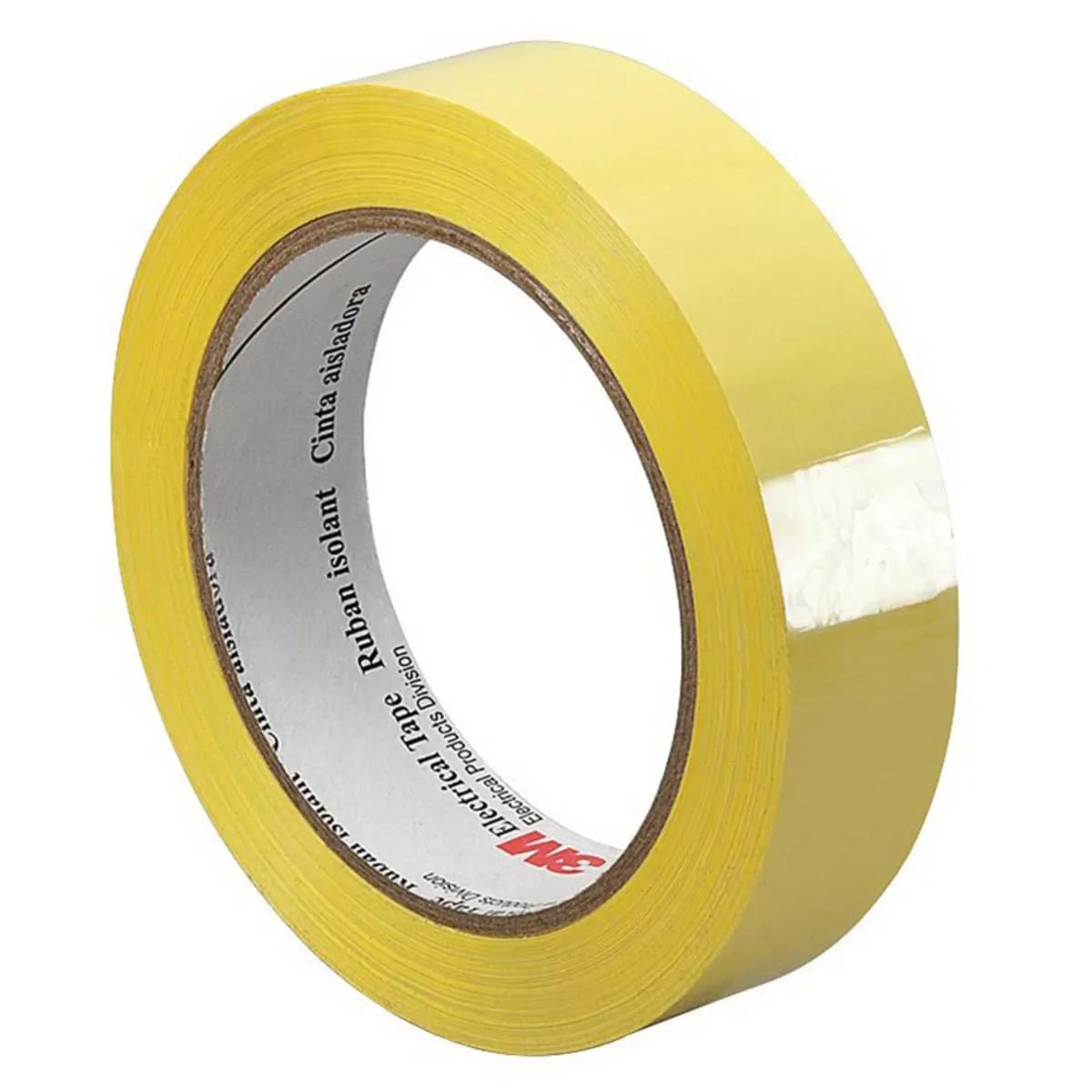

3M 1318 Polyester Electrical Tape

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:1318

EIS #:PH22-1318

MFR #:1318

EIS #:PH22-1318

0
0
3M 1318 tape is a polyester film tape with acrylic pressure sensitive adhesive. It has excellent flagging resistance and solvent resistance, making it well suited for applications where cleaning solvents and mineral oil are present. - It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. It offers good wet grab, excellent shelf life, smooth, even unwind and is suitable for printing and use on automated equipment.
$4.79
 - $71.37
Select from the options below
0
0
3M 1318 tape is a polyester film tape with acrylic pressure sensitive adhesive. It has excellent flagging resistance and solvent resistance, making it well suited for applications where cleaning solvents and mineral oil are present. - It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. It offers good wet grab, excellent shelf life, smooth, even unwind and is suitable for printing and use on automated equipment.

Product Options

Showing 8 out of 41 options
The image shown is representative of the product family and may not specifically be the individual item.
Width:
2.25 Inch
Color:
Black
EIS Part #:
3M1318X2.25BLK
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
2 Inch
Color:
Yellow
EIS Part #:
3M1318X2
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1 Inch
Color:
Black
EIS Part #:
3M1318X1BLK
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.75 Inch
Color:
Black
EIS Part #:
3M1318X1.75BLK
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.75 Inch
Color:
Yellow
EIS Part #:
3M1318X1.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.5 Inch
Color:
Black
EIS Part #:
3M1318X1.5BLK
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.5 Inch
Color:
Yellow
EIS Part #:
3M1318X1.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.375 Inch
Color:
Yellow
EIS Part #:
3M1318X1.375
$ / Roll

Attributes

General Information
Item NameElectrical Tape
Trade Name3M
Series1318
Design & Construction
Backing MaterialPolyester
ColorYellow
Adhesive TypeAcrylic
Performance Details
Adhesive Strength30 oz/Inch
Breaking Strength25 lb/Inch
Electrical Properties
Dielectric Strength5500 V
Physical Properties
Length72 Yard
Thickness2.5 mil
Width-
Core Size3 Inch
Elongation100%
Environmental Condition
Temperature Rating130 °C
ResistsFlagging, Solvent
