MFR #:1218
EIS #:PH22-1218
MFR #:1218
EIS #:PH22-1218

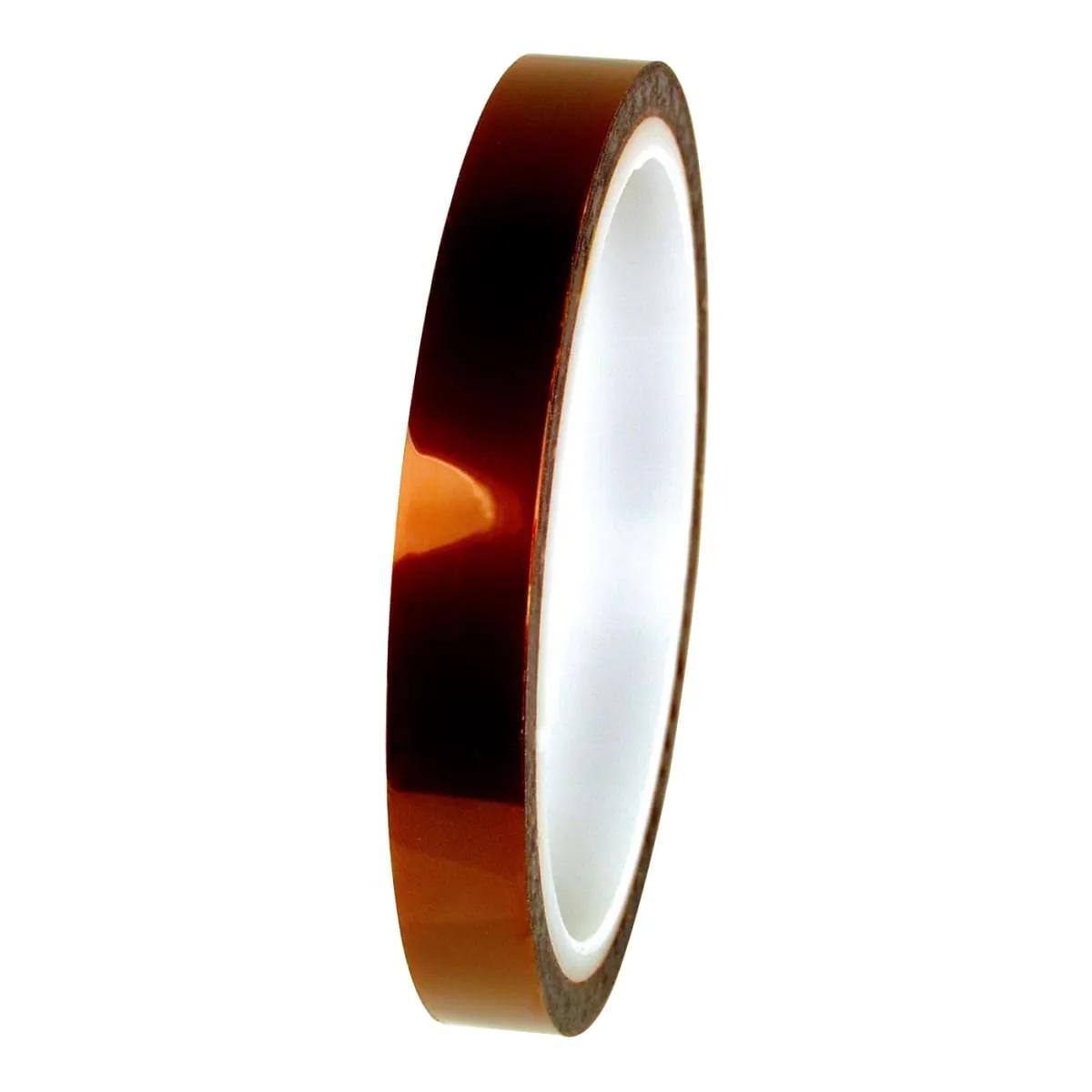

3M 1218 polyimide film tapes are specially designed for high temperature applications requiring a thin puncture-resistant backing. The physical and electrical properties of polyimide remain stable when used in such applications as coils, harnesses and capacitors, that are subjected to extreme temperatures. - 3M 1218 tape is a 1 Mil polyimide backing with acrylic adhesive. It is designed for high temperature applications, in which a solvent resistant backing is required, used on coils, capacitors and wire harnesses.
$14.57
- $94.29
Select from the options below
3M 1218 polyimide film tapes are specially designed for high temperature applications requiring a thin puncture-resistant backing. The physical and electrical properties of polyimide remain stable when used in such applications as coils, harnesses and capacitors, that are subjected to extreme temperatures. - 3M 1218 tape is a 1 Mil polyimide backing with acrylic adhesive. It is designed for high temperature applications, in which a solvent resistant backing is required, used on coils, capacitors and wire harnesses.
Product Options
Showing 5 out of 5 options
Width: 1 Inch | EIS Part #: 3M1218X1 | $ / Roll | ||
Width: 0.75 Inch | EIS Part #: 3M1218X.75 | $ / Roll | ||
Width: 0.5 Inch | EIS Part #: 3M1218X.5 | $ / Roll | ||
Width: 0.375 Inch | EIS Part #: 3M1218X.375 | $ / Roll | ||
Width: 0.156 Inch | EIS Part #: 3M1218X.156 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series1218
Design & Construction
Backing MaterialPolyimide
ColorAmber
Applicable MaterialSteel
Adhesive TypePressure Sensitive Acrylic
Performance Details
Flame RetardantYes
Adhesive Strength19 oz/Inch
Breaking Strength30 lb/Inch
Electrical Properties
Dielectric Strength6000 V
Physical Properties
Length36 Yard
Thickness3 Mil
Core Size3 Inch
Elongation55%
Environmental Condition
Temperature Rating180 °C
Features
- 10^6 Mohm insulation resistance
Applications
- For High Temperature Electrical Applications, Wrapping Coils, Transformers, Capacitors and Wire Harnesses, Flexible Printed Circuits
