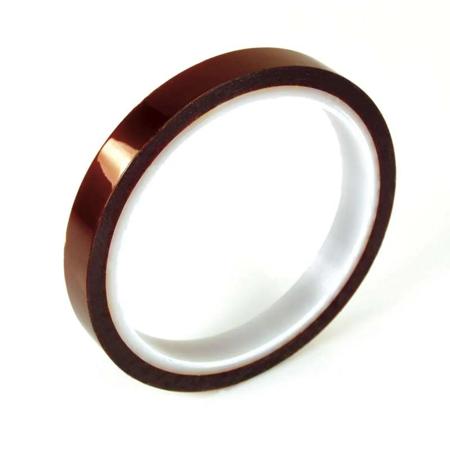

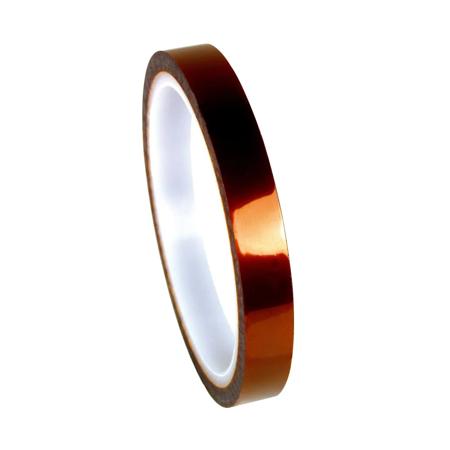

3M 1205 Polyimide Electrical Tape
- MFR #:1205
- EIS #:PH22-1205
- MFR #:1205
- EIS #:PH22-1205
3M polyimide film electrical tape 1205 is a 1 Mil polyimide film backing with acrylic adhesive. Its acrylic pressure sensitive adhesive allows it to be used at 311 °F and it is UL 510 flame retardant. Like most insulated tapes, form 3M, tape 1205 is available in standard and custom widths and lengths. - 10^6 Mohm insulation resistance. The standard length is 36 yd and can be cut to widths ranging from 1/4 - 23 Inch. Longer lengths up to several times normal length are possible, dependent upon width.
$12.81
- $285.48
Select from the options below
3M polyimide film electrical tape 1205 is a 1 Mil polyimide film backing with acrylic adhesive. Its acrylic pressure sensitive adhesive allows it to be used at 311 °F and it is UL 510 flame retardant. Like most insulated tapes, form 3M, tape 1205 is available in standard and custom widths and lengths. - 10^6 Mohm insulation resistance. The standard length is 36 yd and can be cut to widths ranging from 1/4 - 23 Inch. Longer lengths up to several times normal length are possible, dependent upon width.
Product Options
Showing 8 out of 18 options
 | Width: 3 Inch | EIS Part #: 3M1205X3 | $ / Roll | |
| Width: 2.5 Inch | EIS Part #: 3M1205X2.5 | $ / Roll | |
| Width: 1.5 Inch | EIS Part #: 3M1205X1.5 | $ / Roll | |
| Width: 1 Inch | EIS Part #: 3M1205X1 | $ / Roll | |
| Width: 0.875 Inch | EIS Part #: 3M1205X.875 | $ / Roll | |
| Width: 0.75 Inch | EIS Part #: 3M1205X.75 | $ / Roll | |
 | Width: 0.625 Inch | EIS Part #: 3M1205X.625 | $ / Roll | |
 | Width: 0.5 Inch | EIS Part #: 3M1205X.5 | $ / Roll |
- Attributes
- Features
- Applications
- Specifications
- Documents
Attributes
General Information
Item NameElectrical Tape
Series1205
General Features
StandardsMeets flame retardant requirements of UL510, Product Category OANZ2, and 3M File No. E17385
Shelf Life60 Months
Storage Temperature10 to 27 °C
Design & Construction
Adhesive TypeAcrylic
Applicable MaterialSteel
Backing MaterialPolyimide
ColorAmber
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength30 lb/Inch
Flame RetardantYes
Tensile Strength30 lb/Inch
Electrical Properties
Dielectric Strength7500 V
Physical Properties
Core Size3 Inch
Elongation55%
Length36 Yard
Thickness3 Mil
Environmental Condition
ResistsPuncture
Temperature Rating155 °C
Features
- Temperature rating of -40 to 155 °C
Applications
- For Wrapping Coils, Transformers, Capacitors, Wire Harnesses, Anchoring Leads/Terminal Boards, Printed Circuit Board Assembly
Specifications
UL Recognized component listing not to exceed 155°C (311°F), Meets flame retardant requirements of UL510, Product Category OANZ2, and 3M File No. E17385
UL File Number E17385 A and B, Guide OANZ2. Underwriters Laboratories (UL) Recognized products have been evaluated for use as components of end-product equipment that is listed or classified by UL. To achieve Underwriters Laboratories recognition, component construction must meet UL specifications and conditions of acceptability for proper and safe use of the component or product.
Product Category OANZ2, File E17385
