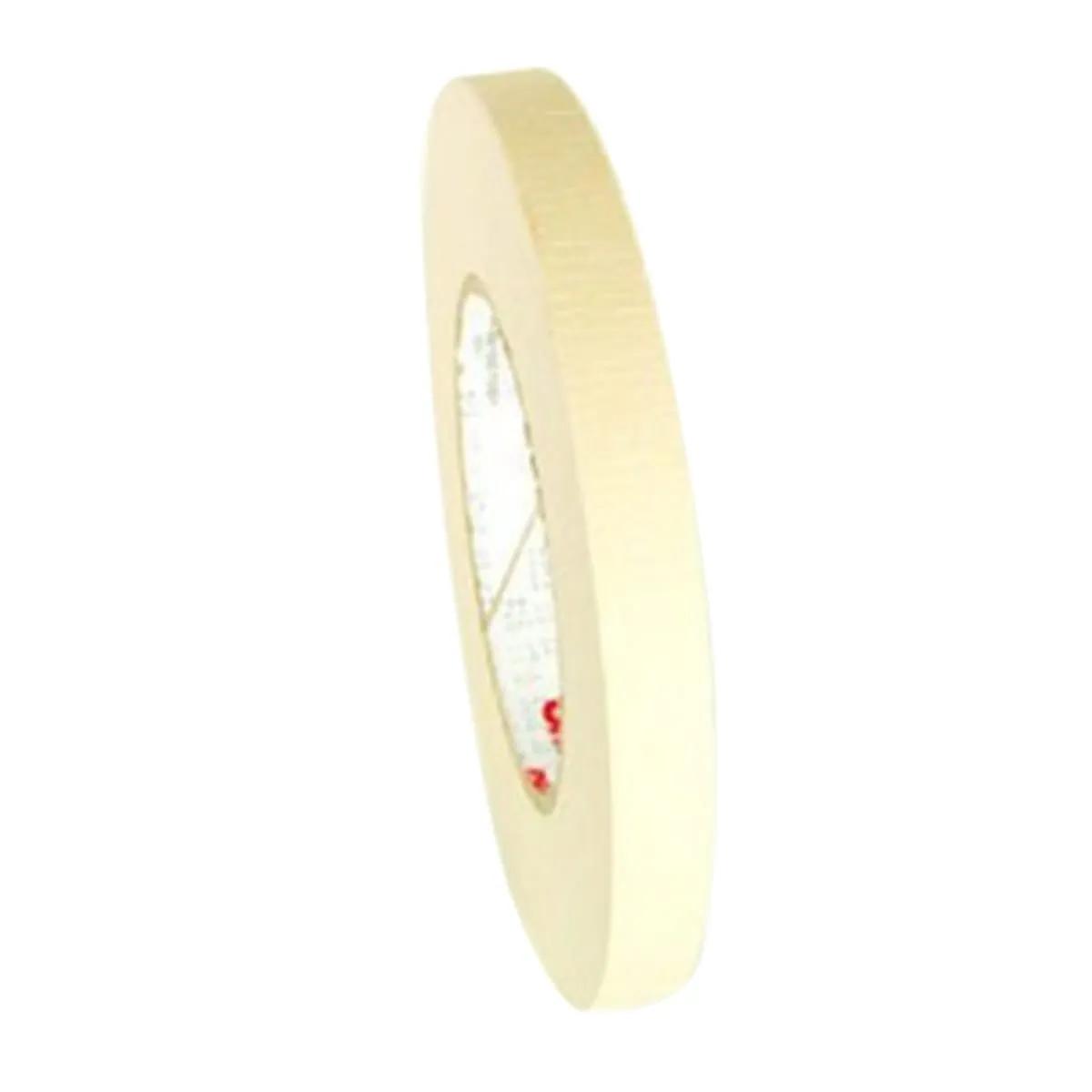

3M 12 Flatback Paper Electrical Tape
MFR #:12
EIS #:PH22-12
MFR #:12
EIS #:PH22-12
3M 12 electrical tape is a flatback paper tape with a thermosetting, natural rubber resin, pressure sensitive adhesive. This tape is designed for continuous operation at 105 °C. - 3M 12 Series Electrical Tape, Tan, 60 Yard Length, Thickness: 5.5 Mil, Core Size: 3 Inch, Adhesive Type: Pressure Sensitive Thermosetting Rubber, Adhesive Strength: 40 oz/Inch, Flatback Paper Backing, Breaking Strength: 22 lb/Inch, Dielectric Strength: 2000V, Resists: Puncture.
$7.81
- $14.91
Select from the options below
3M 12 electrical tape is a flatback paper tape with a thermosetting, natural rubber resin, pressure sensitive adhesive. This tape is designed for continuous operation at 105 °C. - 3M 12 Series Electrical Tape, Tan, 60 Yard Length, Thickness: 5.5 Mil, Core Size: 3 Inch, Adhesive Type: Pressure Sensitive Thermosetting Rubber, Adhesive Strength: 40 oz/Inch, Flatback Paper Backing, Breaking Strength: 22 lb/Inch, Dielectric Strength: 2000V, Resists: Puncture.
Product Options
Showing 2 out of 2 options
 | Width: 0.5 Inch | EIS Part #: 3M12X.5 | $ / Roll | |
| Width: 0.25 Inch | EIS Part #: 3M12X.25 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series12
General Features
Shelf Life60 Months
Storage Temperature10 to 27 °C
Design & Construction
Adhesive TypePressure Sensitive Thermosetting Rubber
Backing MaterialFlatback Paper
ColorTan
Performance Details
Adhesive Strength40 oz/Inch
Breaking Strength22 lb/Inch
Electrical Properties
Dielectric Strength2000 V
Physical Properties
Core Size3 Inch
Length60 Yard
Thickness5.5 mil
Width-
Environmental Condition
ResistsPuncture
Temperature Rating105 °C
Features
- Highly conformable
- Good cushioning properties
Applications
- For Banding Coils and for Cover on Bobbin-Wound Coils
