3M 1157R Vinyl Electrical Tape, MFR ID 1157X.70
- MFR #1157X.70
- EIS #PH22-1157R
$54.59 - $77.60
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 1 Inch | $ / Roll | |
| 0.7 Inch | $ / Roll |

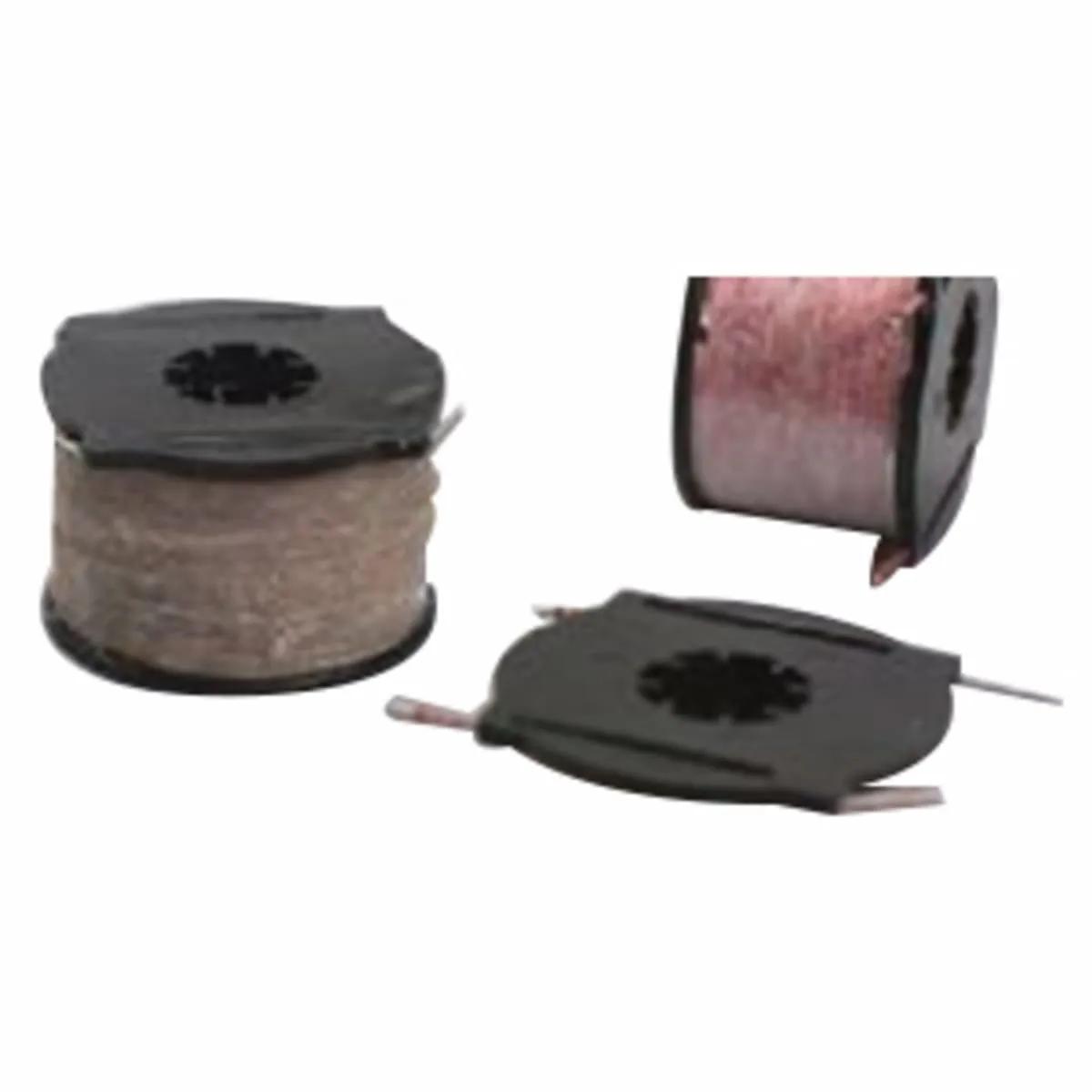

3M 1157R electrical tape is a 100% rayon fiber backing coated on one side with an acrylic pressure sensitive adhesive system for an overall caliper of 4 Mil. The porous rayon mat and adhesive are both permeable to gases and liquids. - 1157R was specifically designed to allow thorough penetration of the impregnating varnishes inside bobbin-wound coils. Porous construction allows varnishes to penetrate thoroughly.
Features
- Compatible with "Scotchcast" brand resins
- 100% rayon fiber backing
- Specifically designed to allow thorough penetration of the impregnating varnishes inside bobbin-wound coils
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1157R |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Vinyl |
| Color | Transparent |
Performance Details
| Adhesive Strength | 11 oz/Inch |
| Tensile Strength | 8.5 lb/Inch |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 17% |
| Width | - |
| Length | 72 Yard |
| Thickness | 4 mil |
Environmental Condition
| Temperature Rating | 130 °C |
Supporting Information
| For Use With | Scotchcast® Resins |
| Use With | Scotchcast® Resins |
