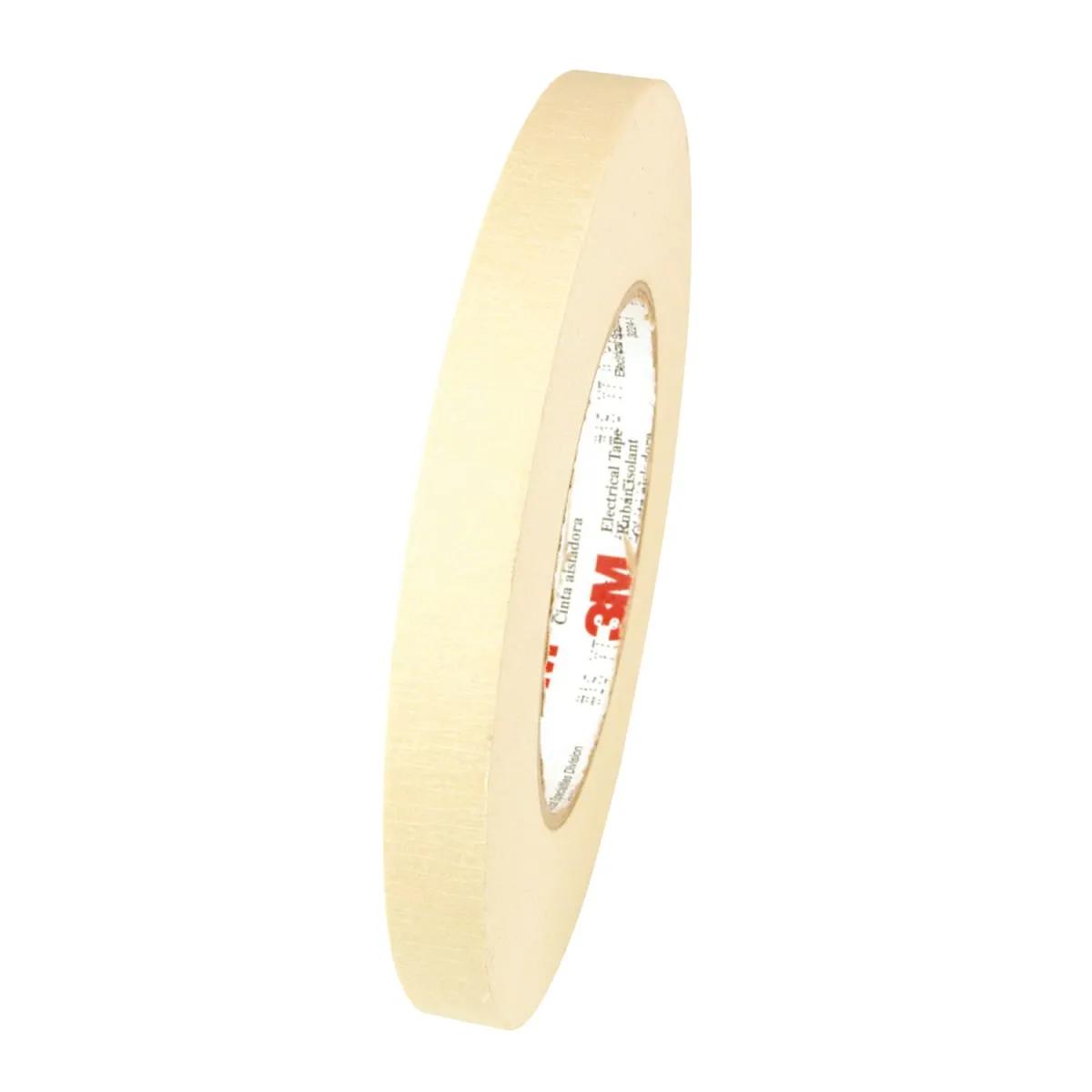

3M 1146 Polyester/Glass Filament Electrical Tape
- MFR #1146
- EIS #PH22-1146
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.25 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll | |
| 2 Inch | $ / Roll | |
| 1 Inch | $ / Roll |
3M 1146 tape is a 6.5 Mil polyester film/glass filament tape coated with a thermosetting, pressure sensitive rubber adhesive. Suitable for heavy duty use. Has a high breaking strength. - 3M 1146 Series Electrical Tape, Clear, 60 Yard Length, Thickness: 6.5 Mil, Core Size: 3 Inch, Adhesive Type: Thermosetting Rubber, Adhesive Strength: 55 oz/Inch, Polyester/Glass Filament Backing, Elongation: 5%, Breaking Strength: 300 lb/Inch, Dielectric Strength: 5500V, Temperature Rating: 130 °C, Resists: Solvent.
Applications
- For Heavy Duty Equipment Applications, Bundling Armature Coils, Anchoring, Lead Holding of Heavy Gauge Wires in Transformers, Coils and Electric Motors
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1146 |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Backing Material | Polyester/Glass Filament |
| Color | Clear |
Performance Details
| Adhesive Strength | 55 oz/Inch |
| Breaking Strength | 300 lb/Inch |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Width | - |
| Length | 60 Yard |
| Thickness | 6.5 mil |
Environmental Condition
| Resists | Solvent |
| Temperature Rating | 130 °C |
