3M 1046 Polyester/Glass Filament Electrical Tape

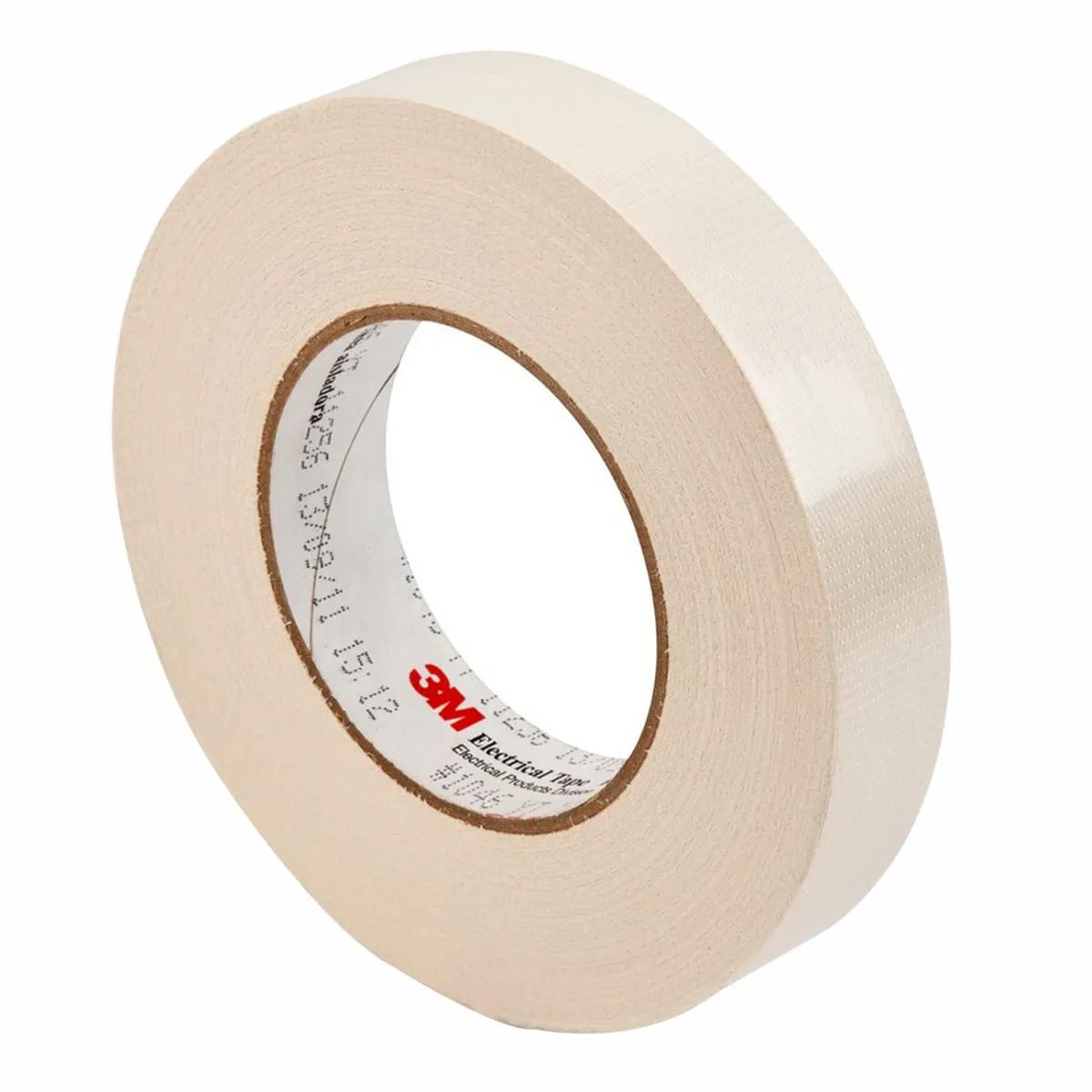

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:1046

EIS #:PH22-1046

MFR #:1046

EIS #:PH22-1046

0
0
3M electrical filament tape 1046 is a solvent-resistant, high temperature filament tape with thermosetting rubber adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. - Offers the ultimate in low stretch, high tensile and edge tear resistance for a more cost-effective solution to glass cloth tapes. Designed for insulation in dry-type transformers, motor winding and end-turn wire-hold applications and more.
$15.50
 - $26.41
Select from the options below
0
0
3M electrical filament tape 1046 is a solvent-resistant, high temperature filament tape with thermosetting rubber adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. - Offers the ultimate in low stretch, high tensile and edge tear resistance for a more cost-effective solution to glass cloth tapes. Designed for insulation in dry-type transformers, motor winding and end-turn wire-hold applications and more.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.75 Inch
EIS Part #
3M1046X.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.375 Inch
EIS Part #
3M1046X.375
$ / Roll

Attributes

General Information
Item NameElectrical Tape
Trade Name3M
Series1046
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeRubber
Backing MaterialPolyester/Glass Filament
ColorWhite
Performance Details
Adhesive Strength50 oz/Inch
Breaking Strength275 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength5500 V
Physical Properties
Core Size3 Inch
Elongation5%
Length60 Yard
Thickness7 Mil
Width-
Environmental Condition
Temperature Rating266 °F
