MFR #:1039
EIS #:PH22-1039
MFR #:1039
EIS #:PH22-1039

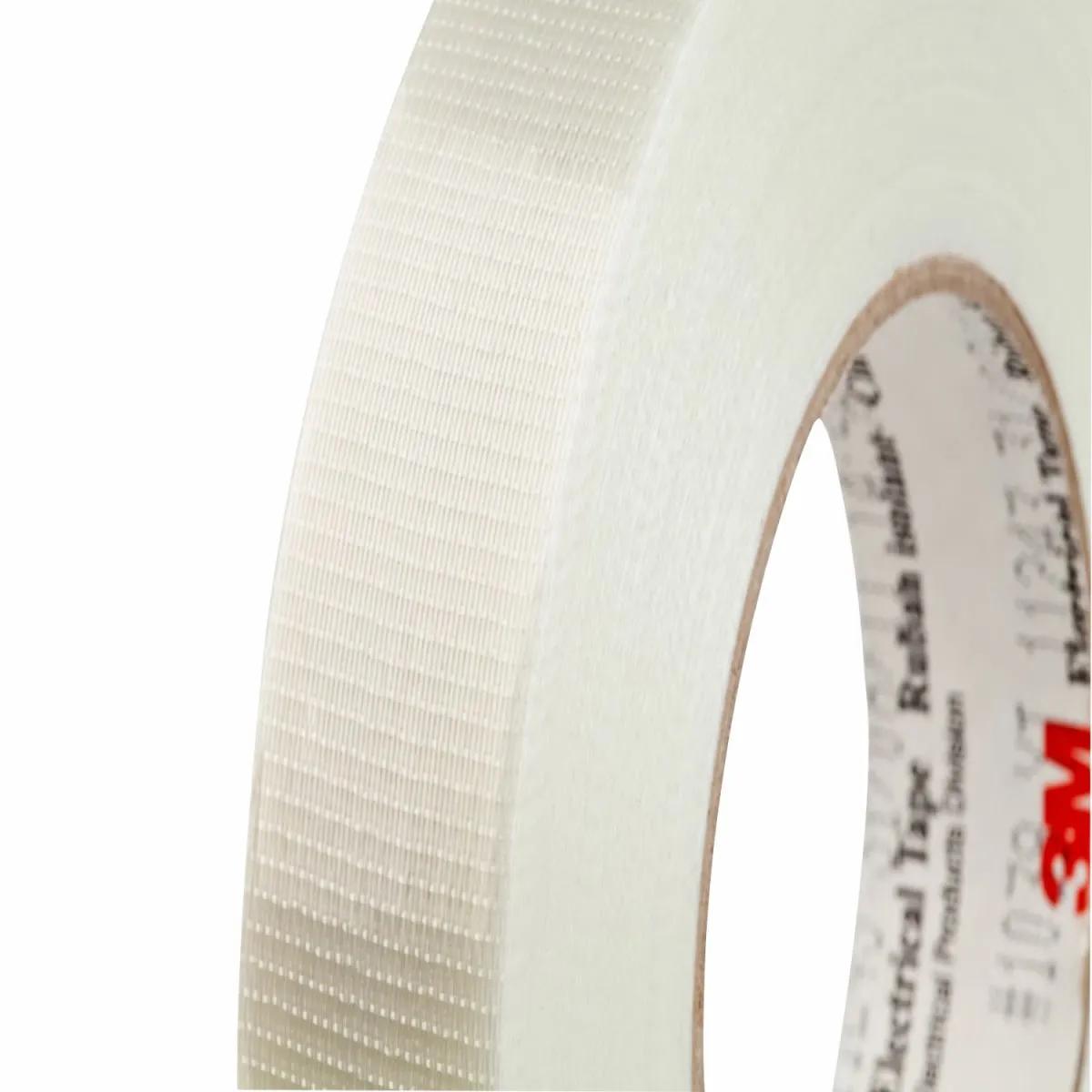

3M filament tape 1039 tape construction offers a strong tape backing with an adhesive that provides a durable bond to substrates. It is designed to withstand such stress as the high-speed coil winding process used for making dry-type transformers. Offers the ultimate in low stretch, high tensile and edge tear resistance for a more cost-effective solution to glass cloth tapes. - 3M filament tape 1039 is a conformable, solvent-resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. Excellent for anchoring lead wires to banding coils and end-turn taping.
$8.64
- $64.37
Select from the options below
3M filament tape 1039 tape construction offers a strong tape backing with an adhesive that provides a durable bond to substrates. It is designed to withstand such stress as the high-speed coil winding process used for making dry-type transformers. Offers the ultimate in low stretch, high tensile and edge tear resistance for a more cost-effective solution to glass cloth tapes. - 3M filament tape 1039 is a conformable, solvent-resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. Excellent for anchoring lead wires to banding coils and end-turn taping.
Product Options
Showing 8 out of 9 options
Width: 2 Inch | EIS Part #: 3M1039X2 | $ / Roll | ||
Width: 1.5 Inch | EIS Part #: 3M1039X1.5 | $ / Roll | ||
Width: 1 Inch | EIS Part #: 3M1039X1 | $ / Roll | ||
Width: 0.75 Inch | EIS Part #: 3M1039X.75 | $ / Roll | ||
Width: 0.6875 Inch | EIS Part #: 3M1039X.687 | $ / Roll | ||
Width: 0.5 Inch | EIS Part #: 3M1039X.5 | $ / Roll | ||
Width: 0.4375 Inch | EIS Part #: 3M1039X.437 | $ / Roll | ||
Width: 0.375 Inch | EIS Part #: 3M1039X.375 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series1039
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeAcrylic
Backing MaterialPolyester/Glass Filament
ColorWhite
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength275 lb/Inch
Flame RetardantNo
Electrical Properties
Dielectric Strength5500 V
Physical Properties
Core Size3 Inch
Elongation5%
Length60 Yard
Thickness7 mil
Environmental Condition
ResistsChemical, Solvent, Tear
Temperature Rating266 °F
Features
- Good initial adhesion of the tape to magnet wire, strip copper and insulation materials
- Stable adhesion even after long exposure to transformer fluids
- Stiffness for excellent handling, which promotes operator efficiency during application of the tape during coil winding operations
- Compatibility with diamond paper insulation thermal bonding with back side of tape
- Easy consistent unwind to promote operator efficiency
- Temperature rating of -40 to 266 °F
Applications
- For Holding Down Magnet Wire, Copper Strips (Sheets) and Insulation Materials
