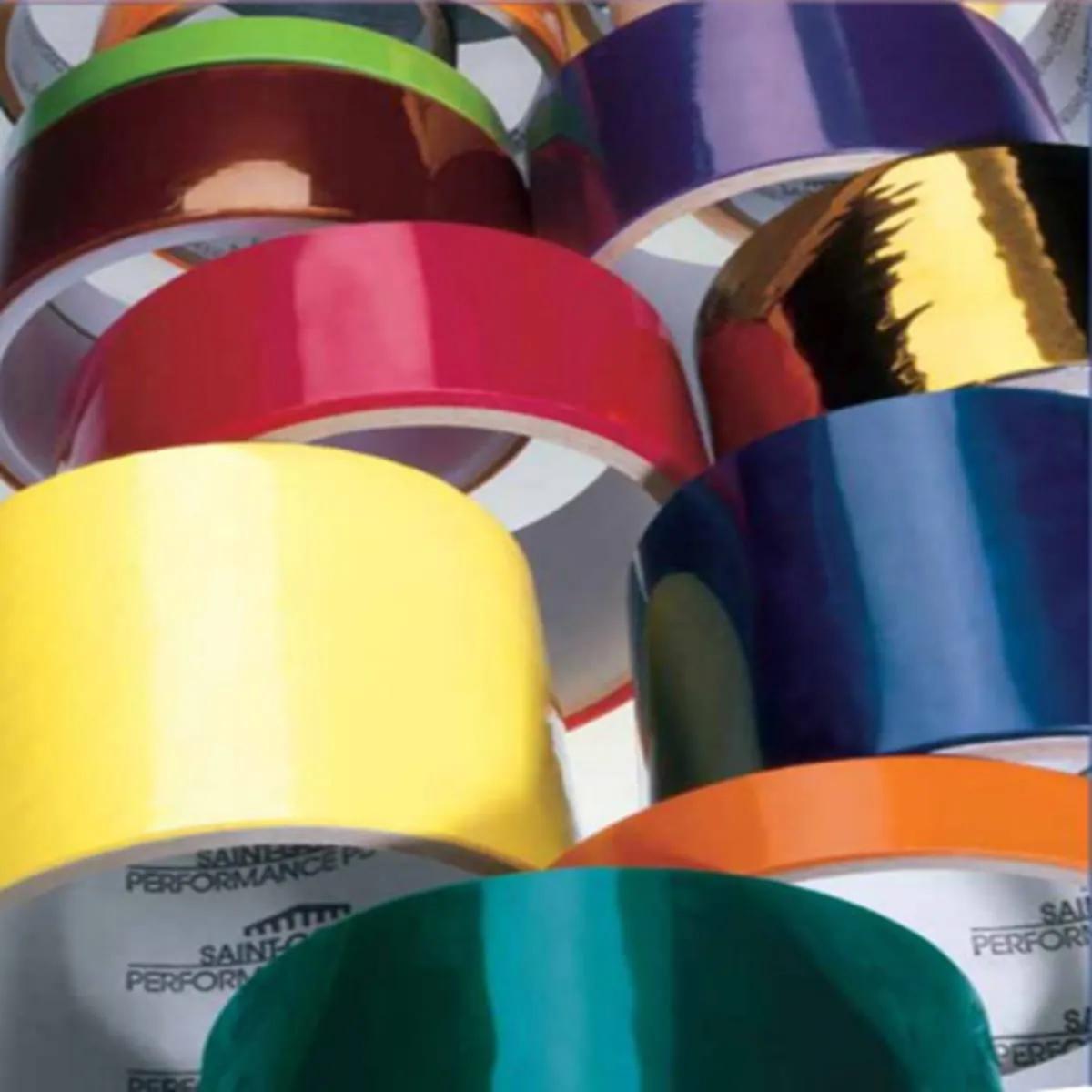

The image shown is representative of the product family and may not specifically be the individual item.  Saint-Gobain M54 polyester films have excellent dimensional stability, high tensile, tear and impact strengths and ultimate elongation up to 120% …
0

CHR M54 Polyester Electrical Tape, 1/4" x 72 yd x 2.5 Mil, Yellow, MFR ID CHRM54X.25

  • EIS #CHRM54X.25
Requires Quote / Roll
Available to Order
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products You May Also Like

Saint-Gobain M54 polyester films have excellent dimensional stability, high tensile, tear and impact strengths and ultimate elongation up to 120% of its original dimensions. These films exhibit low water absorption and good resistance to oils, greases, strong acids and organic solvents. - M54 offer economical methods to hold, insulate and/or protect various materials. They also retain electrical properties, dielectric strength and dielectric constant in continuous operating temperatures from -18 to 163 °C.

General Information

Item NameElectrical Tape

SeriesM54

Design & Construction

Adhesive TypeThermosetting Rubber
Backing MaterialPolyester
ColorYellow

Performance Details

Adhesive Strength45 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes

Electrical Properties

Dielectric Strength5000 V

Physical Properties

Elongation100%
Length72 Yard
Thickness2.5 Mil
Width0.25 Inch

Environmental Condition

ResistsOil, Grease, Strong Acid, Organic Solvent
Temperature Rating162 °C
