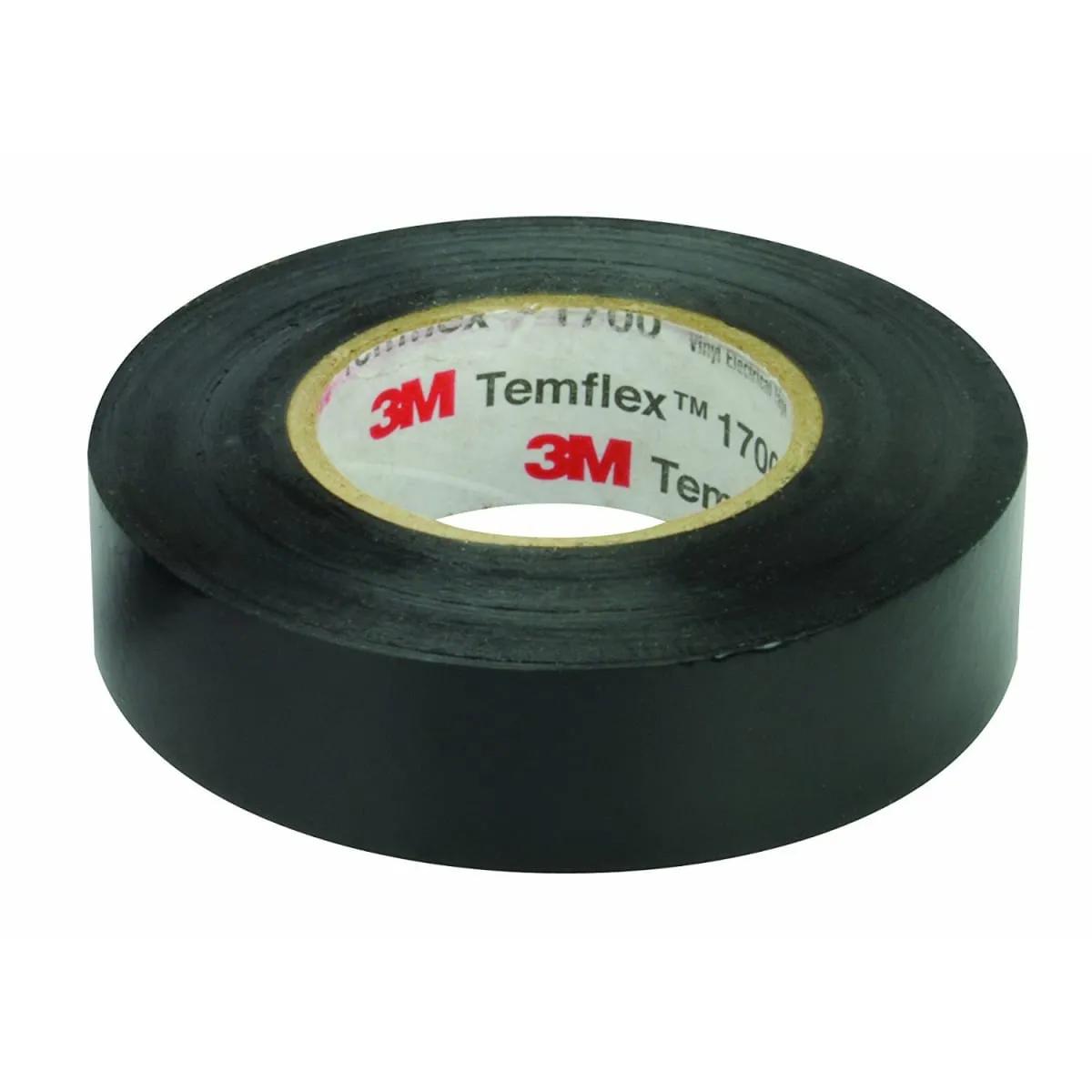

3M 1700 Temflex™ Vinyl Electrical Tape, 3/4" x 20 yd x 7 Mil, Black, 100/Case, MFR ID 7000008400
- EIS #3M1700X.75
- UPC #00054007697640
Requires Quote / Roll
Available to Order
Min QTY1QTY Increment1
more info
Pack100/Case
Products You May Also Like
3M™ Temflex™ Tape 1700 is an abrasion resistant tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and an elastic PVC backing. Ideal for indoor and outdoor applications, this tape is also flame retardant and highly resistant to UV rays, moisture, alkalis, acids, copper corrosion and varying weather conditions. It provides a protective jacket for high voltage cable splices and repairs. UL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant.
3M™ Temflex™ Electrical Tape 1700 is a 7 mil thick, general purpose, vinyl electrical tape. This flame retardant tape is designed for protective jacketing and harnessing. This tape is 600V rated and withstands a temperature range of 32 to 176 °F (0 to 80 °C).
Applications
- For Protective Jacketing and Harnessing
General Information
| Item Name | Electrical Tape |
| Trade Name | Temflex™ |
| Series | 1700 |
General Features
| Shelf Life | 60 Months |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Vinyl |
| Color | Black |
Performance Details
| Adhesive Strength | 22 oz/Inch |
| Breaking Strength | 17 lb/Inch |
| Flame Retardant | Yes |
Electrical Properties
| Dielectric Strength | 1000 V/mil |
Physical Properties
| Core Size | 1 Inch |
| Elongation | 200% |
| Width | 0.75 Inch |
| Length | 20 Yard |
| Thickness | 7 mil |
Environmental Condition
| Temperature Rating | 176 °F |
