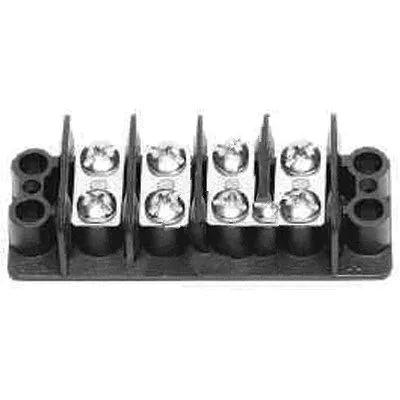

Fuseco 672 RZ Double Row Terminal Block, 2 Pole, 30A, 600VAC/DC, Thermoplastic Base, Steel Screw, 12-14 AWG Bare, MFR ID 672RZ02
- MFR #672RZO2
- EIS #672RZ02
- Series #672 RZ
$3.80 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Fuseco 672 RZ Series Closed Back Double Row Terminal Block, Thermoplastic Base, Steel Screw, 2.1 Inch L x 1.31 Inch W x 0.71 Inch H. - Fuseco Closed Back Double Row Terminal Block.
Features
- 10,000A Short circuit current rating
- #8-32 phillips slotted screw
- 125 °C Maximum insulator base temperature
- 2 pole, 30A amperage rating
- -35 to 110 °C storage and transportation
- 600V AC/DC voltage rating
- 12-14 AWG Bare
General Information
| Item Name | Double Row Terminal Block |
| Series | 672 RZ |
General Features
| Standards | UL 94V-0 Flammability, UL File No XCFR2.E47811 Listed, CSA File No 158 Certified, CE Certified, IEC 60947-7-1 Certified, RoHS Compliant |
| Type | Closed Back |
Design & Construction
| Material | Thermoplastic Base, Steel Screw |
Physical Properties
| Size | 2.1 Inch L x 1.31 Inch W x 0.71 Inch H |
Supporting Information
| OEM ID | 672RZ02 |
