JTEKT Bearings 5206CD3 - 30 mm ID, 62 mm OD, 23.8 mm Width, C3 Internal Clearance, MFR ID KOY-5206CD3

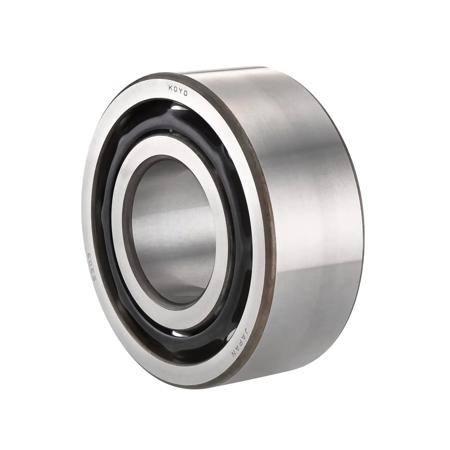

The image shown is representative of the product family and may not specifically be the individual item. 5305CD3 -Double Row Angular Contact Bearing, Double - Row Deep Groove
  • MFR #:5206CD3
  • EIS #:5206CD308
  • UPC #:605790036675
  • Midpoint #:KOY-5206CD3
  • MFR #:5206CD3
  • EIS #:5206CD308
  • UPC #:605790036675
  • Midpoint #:KOY-5206CD3
In Stock | Ready to Ship

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
5206CD3 -Double Row Angular Contact Bearing, Double - Row Deep Groove
$38.32 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
5206CD3 -Double Row Angular Contact Bearing, Double - Row Deep Groove

Attributes

General Information

Item NameDouble Row Angular Contact Bearings

Series5200

General Features

Net Weight0.653 lb

Design & Construction

Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Closure TypeOpen
Lubrication TypeRust Preventative
Material52100
Retainer MaterialSteel
Retainer TypeRiveted
Rolling ElementBall
Rolling Element Material52100
Row TypeDouble row

Performance Details

Dynamic Load Capacity37.2 kn
Operating Temperature-30 to 110 °C
Precision ClassP0
Speed Rating6400 rpm (Grease) | 8600 rpm (Oil)
Static Load Capacity21.3 kn

Physical Properties

Bore Diameter30 mm
Fillet Radius0.0394 Inch
Outside Diameter62 mm
Outside Width0.937 Inch
Overall Width0.937 Inch
Radial Internal ClearanceCD3
