SKF TKED 1 LCD Electrical Discharge Detector Pen
- MFR #TKED 1
- EIS #TKED1
- UPC #07316574268870
$2,753.47 / Piece
Available to Order
Min QTY1QTY Increment1more info

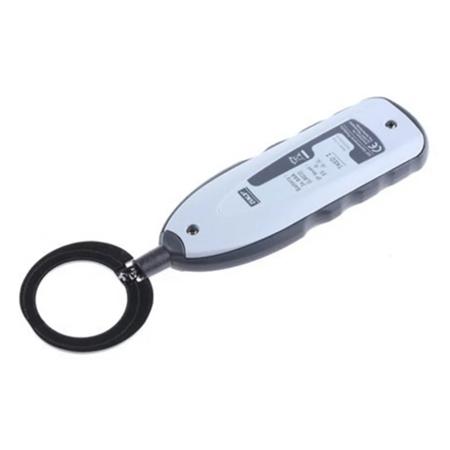

The SKF electrical discharge detector pen (EDD Pen) is a simple to use handheld instrument for detecting electrical discharges in electric motor bearings. Electrical discharges are a result of motor shaft voltages discharging to earth through the bearing, causing electrical erosion, lubricant degradation and ultimately bearing failure. Electric motors are more vulnerable to suffer electrical erosion in bearings when controlled by a variable frequency drive. - When incorporated into a predictive maintenance programmed, the EDD pen can help detect bearings more susceptible to failure and significantly prevent unplanned machine downtime.
Features
- Unique remote solution allows operation at a distance from the motors. This helps protect the user from touching machinery in motion
- No special training required
- Capable of detecting electrical discharges on a time base of 10 sec, 30 sec or infinite
- LED backlight screen, allows use in dark environments
- IP55 can be used in most industrial environments
- Supplied standard with batteries, a spare antenna and language free instructions for use in a carrying case
Applications
- For Detecting Electrical Discharges in Electric Motor Bearings
General Information
| Item Name | Detector Pen |
General Features
| Net Weight | 1.4 lb |
| Type | Electrical Discharge |
Design & Construction
| Display | LCD |
| Power Source | (3) 4.5V AAA Alkaline Batteries |
