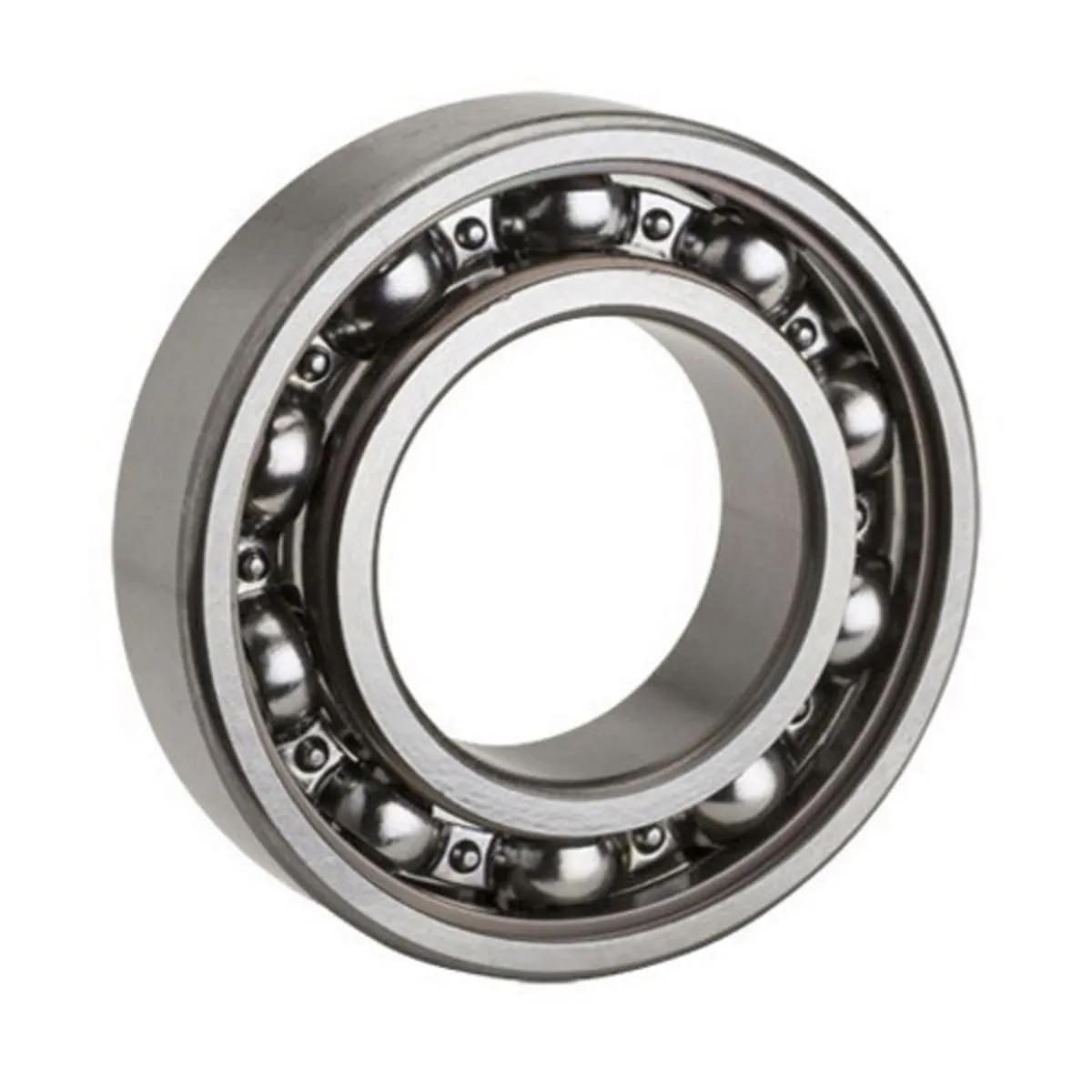

NTN 641001 Single Row Deep Groove Radial Ball Bearing, 50 mm Bore x 130 mm OD x 31 mm W, Pressed Steel Cage
- MFR #:6410C3
- EIS #:641001
- Series #:6410
- UPC #:04547359584240
- MFR #:6410C3
- EIS #:641001
- Series #:6410
- UPC #:04547359584240
Available to Order
Min Qty:1
|Qty Increment:1
NTN Single Row Open Deep Groove Radial Ball Bearing, 50 mm Bore Dia, Pressed Steel Cage, Clearance: C3, 83000 N Dynamic Load, 2.1 mm Fillet Radius, 1 Row, 130 mm OD, Steel Rolling Element, 5700 rpm Limiting (Grease), 6700 rpm Limiting (Oil), 49500 N Static Load, -40 to 120 °C, 31 mm Width. - single row radial ball bearing - open type.
$303.54 / each
Min Qty:1
|Qty Increment:1
NTN Single Row Open Deep Groove Radial Ball Bearing, 50 mm Bore Dia, Pressed Steel Cage, Clearance: C3, 83000 N Dynamic Load, 2.1 mm Fillet Radius, 1 Row, 130 mm OD, Steel Rolling Element, 5700 rpm Limiting (Grease), 6700 rpm Limiting (Oil), 49500 N Static Load, -40 to 120 °C, 31 mm Width. - single row radial ball bearing - open type.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Trade NameNTN
Series6410
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeOpen
Rolling Element MaterialSteel
Performance Details
Dynamic Load Capacity83000 N
Static Load Capacity49500 N
Physical Properties
Bore Diameter50 mm
Fillet Radius2.1 mm
Number of Rows1
Outside Diameter130 mm
Width31 mm
Environmental Condition
Temperature Rating120 °C
Features
- Clearance: C3
- Speed Rating: 5700 rpm Limiting (Grease), 6700 rpm Limiting (Oil)
- Temperature Rating: -40 to 120 °C
