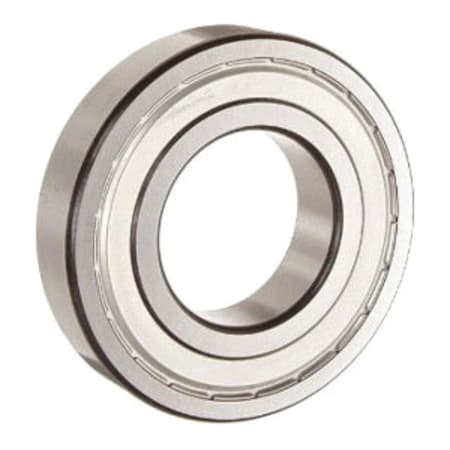

SKF 6320-2Z Single Row Deep Groove Radial Ball Bearing, 100 mm Bore x 215 mm OD x 47 mm W, Double Shield, Pressed Steel Cage

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:6320 2ZJEM

EIS #:6320ZZ04

Series #:6320

UPC #:07316577662279

MFR #:6320 2ZJEM

EIS #:6320ZZ04

Series #:6320

UPC #:07316577662279

Low Stock

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.
$822.07 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF 6300 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6300 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

Attributes

General Information
Item NameDeep Groove Radial Ball Bearing
Series6320
General Features
Net Weight7.29kg
Design & Construction
Cage MaterialPressed Steel
Enclosure TypeDouble Shield
Performance Details
Dynamic Load Capacity174000 N
Static Load Capacity140000 N
Tolerance ClassP6, P5
Physical Properties
Bore Diameter100 mm
Fillet Radius2.5 mm
Number of Rows1
Outside Diameter215 mm
Width47 mm
