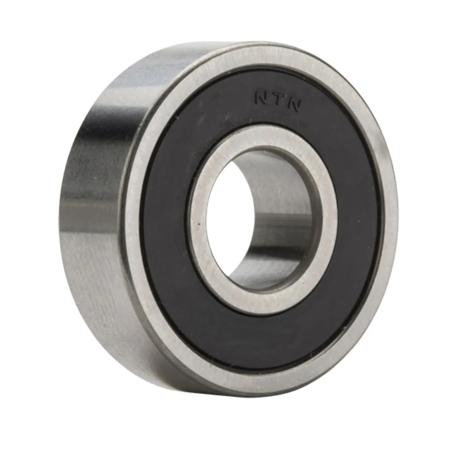

NTN 63207LLB01 Single Row Deep Groove Radial Ball Bearing, 35 mm Bore x 72 mm OD x 27 mm W, Double Seal, Pressed Steel Cage
- MFR #63207LLBC3/EM
- EIS #63207LLB01
- Series #63207
- UPC #04547359581287
$41.89 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
NTN 6300 Double Sealed single row deep groove radial ball bearing.
NTN 6300 Double Sealed Single Row deep groove radial ball bearing, pressed steel cage material, 1 row, steel rolling element, temperature rating: -40 to 120 deg c.
Features
- Clearance: C3
- Temperature Rating: -40 to 120 °C
- Speed Rating: 9800 rpm Limiting (Grease)
General Information
| Item Name | Deep Groove Radial Ball Bearing |
| Trade Name | NTN |
| Series | 63207 |
General Features
| Net Weight | 0.977 lb |
Design & Construction
| Cage Material | Pressed Steel |
| Enclosure Type | Double Non-Contact Seal |
| Rolling Element Material | Steel |
| Seal Material | Nitrile Butadiene Rubber |
Performance Details
| Dynamic Load Capacity | 5100 N |
| Static Load Capacity | 2390 N |
Physical Properties
| Bore Diameter | 35 mm |
| Fillet Radius | 1.1 mm |
| Number of Rows | 1 |
| Outside Diameter | 72 mm |
| Width | 27 mm |
